Scratch and Dent - 4 FT ATV Transformer Tow Frame With Notched Disc Harrow Attachment - FINAL SALE
SKU: SKU: R191357
This is a carousel with product media. Use Next and Previous buttons to navigate, or jump to a slide.
This is a carousel with product media thumbs. Use the thumbs to navigate, or jump to a slide.
* Scratch and Dent items are not eligible for returns or warranty claims. *
* Scratch and Dent Deal - item may have cosmetic damage and/or missing hardware *

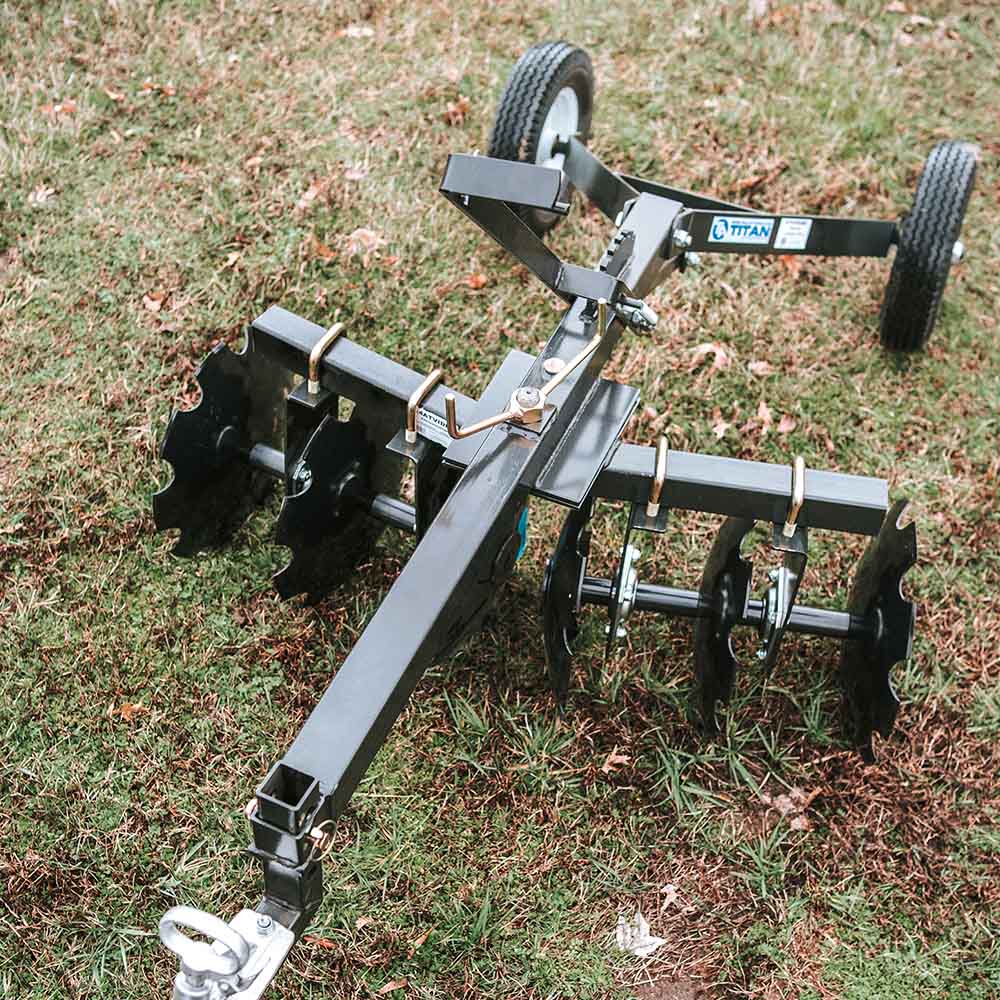

With the Titan Attachments™ ATV 4’ Notched Disc Harrow, you can easily till up your land to prepare it for planting. This tow behind disc harrow attaches to the ball receiver on any ATV or UTV such as Honda, Cub Cadet, Grizzly, Polaris, Yamaha and more. With the 6 replaceable notched discs, you can break up the ground and rip through weeks and unwanted debris. Each disc is 16” in diameter and are concaved to allow them to loosen and lift the soil as it cuts. Adjust the disc spacing using the u-bolts to fit your tilling needs. The working width of the ATV Disc Harrow is 4' or 48 inches. The transformer tow frame allows you to rotate the disc harrow attachment to the perfect angle as well as giving you the ability to control depth with a simple to use hand lever.
The Titan Transformer Tow Frame is designed to be compatible with any of the Titan tow frame attachments including rakes, grader blades, and disc harrows. Switching the implements is fast and easy. Simply remove the attachment from the tow frame using the large wing nut and slide in your next attachment. With this one easy, interchangeable system, you can save time, money and space, without needing to purchase multiple full-size implements.
TOW BEHIND DISC HARROW: This tow behind disc harrow is an excellent gardening tool, allowing you to break up the ground and cut through weeds to prepare your land for planting. This is a must have tool for anyone looking for an affordable way to turn their soil.
16” NOTCHED DISCS: The 4’ ATV Disc Harrow has 6 notched discs. The notched discs are great for breaking up wet, heavy soil with less gumming up and can power through heavier crop debris. These blades are great for land that has not been tilled in the past and are perfect for breaking up weed root systems, allowing them to breakdown faster.
ADJUSTABLE HEIGHT AND ANGLE: This 4-ft Tow Behind Disc Harrow has a total of 7 height adjustments that is set using the long spring hand lever to control the perfect depth of your rake tines. The ATV Harrow also has 5 angled settings allowing you to set the notched discs at the perfect position to meet your needs. The hitch can also be adjusted to fit the height of your receiver with 4 total positions.
FOR USE WITH A 2" TOWBALL: Connect this tow behind disc harrow to any ATV or UTV that is equipped with a 2" tow ball and you are ready to go. Using this disc harrow with an ATV or UTV, you can now prepare your land for planting with ease. No need to purchase expensive tractors to use this disc harrow.
TITAN TRANSFORMER TOW FRAME FAMILY: The Titan Transformer Tow Frame is a unique system in which you only need one frame for multiple attachments. With the main Transformer Tow Frame, you can switch your implement from a landscape rake to a grader blade or ever to a disc harrow in minutes. No need to purchase individual full size attachments that take up valuable room in your shop or barn.
