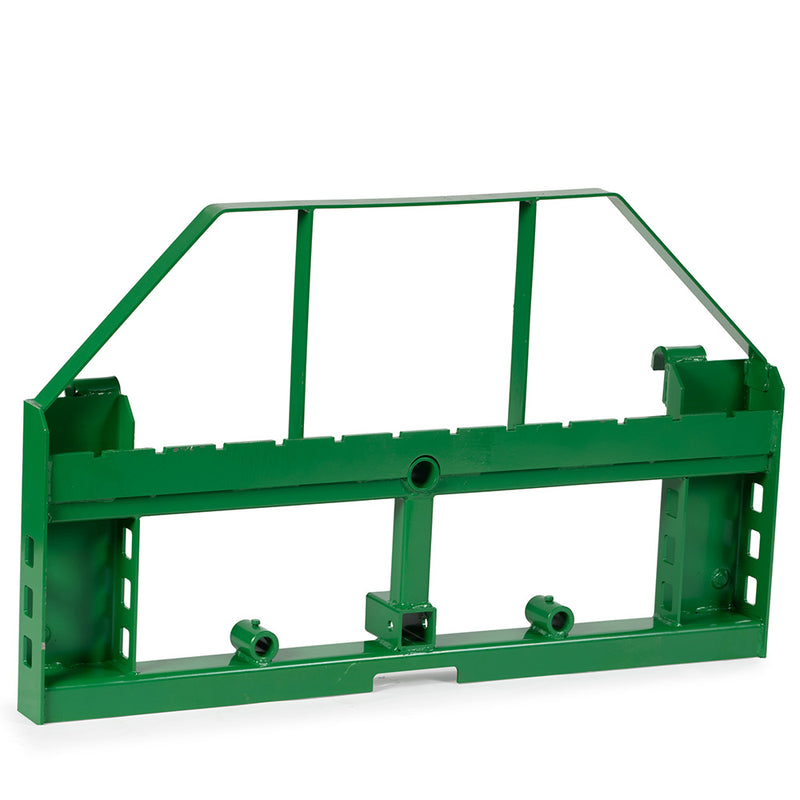

Standard Series Pallet Fork Frame, Fits John Deere Tractors
Standard Series Pallet Fork Frame, Fits John Deere Tractors
SKU: SKU: 132238
This is a carousel with product media. Use Next and Previous buttons to navigate, or jump to a slide.
This is a carousel with product media thumbs. Use the thumbs to navigate, or jump to a slide.
Product Overview
NOTE: When you order this product, we will need your phone number for the trucking company to schedule delivery. Without your number, there could be a delay.
Specifications
Specifications
Overall Height
29.5-in.Overall Width
50-in.Overall Depth
4-in.Fork Width Adjusts
11.75-in to 43-in.Upper to Lower Rail
16-in.Main Spear Sleeve
Conus 2Finish
Powder-Coated GreenMaterial
SteelFrame Weight Capacity
4,000 lb.Frame Product Weight
120 lb.Details
- Compatible with John Deere Loaders
- Safely move hay bales with the added stability of a headache rack
- Carriage Bars and Hay Spear Sleeves are already installed
- Standard 2-inch trailer receiver hitch is welded to the frame
- All in one frame design for moving pallets, large round hay bales, and trailers
- Accepts two Class II Pallet Fork Blades (sold separate)
- Accepts one Conus 2 Hay Bale Spear (sold separate)
- Accepts a Pair of 17.5-inch Stabilizer Spears (sold separate)
- Top pin set fits D120, D160, D170, H120, H130, H140, 120R, 200X, 200CX, 220R, 300X, 300CX, 300E, 300R, 305, 320R, 400X, 400CX, 410, 419, 420, 440, 440R, and 460 series loaders
- Bottom pin set fits 500, 510, 512, 520, 521, 540, 541, 542, and 553 series Ag loaders
- Does not fit any loaders equipped with the Global/Euro style or universal Skid Steer style mount
