Pro Series 60" Extra Wide Pallet Fork Frame, 36" Fork Blades
Pro Series 60" Extra Wide Pallet Fork Frame, 36" Fork Blades
SKU: SKU: 139350
This is a carousel with product media. Use Next and Previous buttons to navigate, or jump to a slide.
This is a carousel with product media thumbs. Use the thumbs to navigate, or jump to a slide.
Product Overview

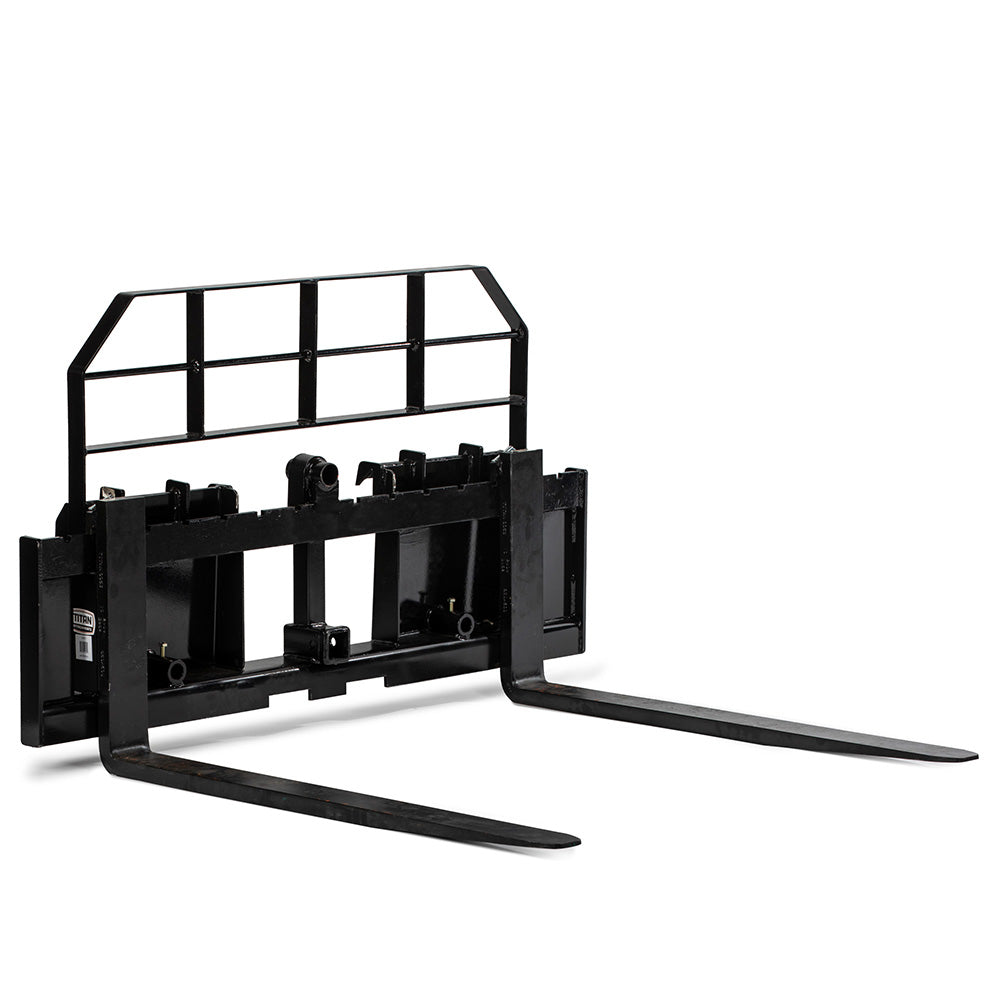

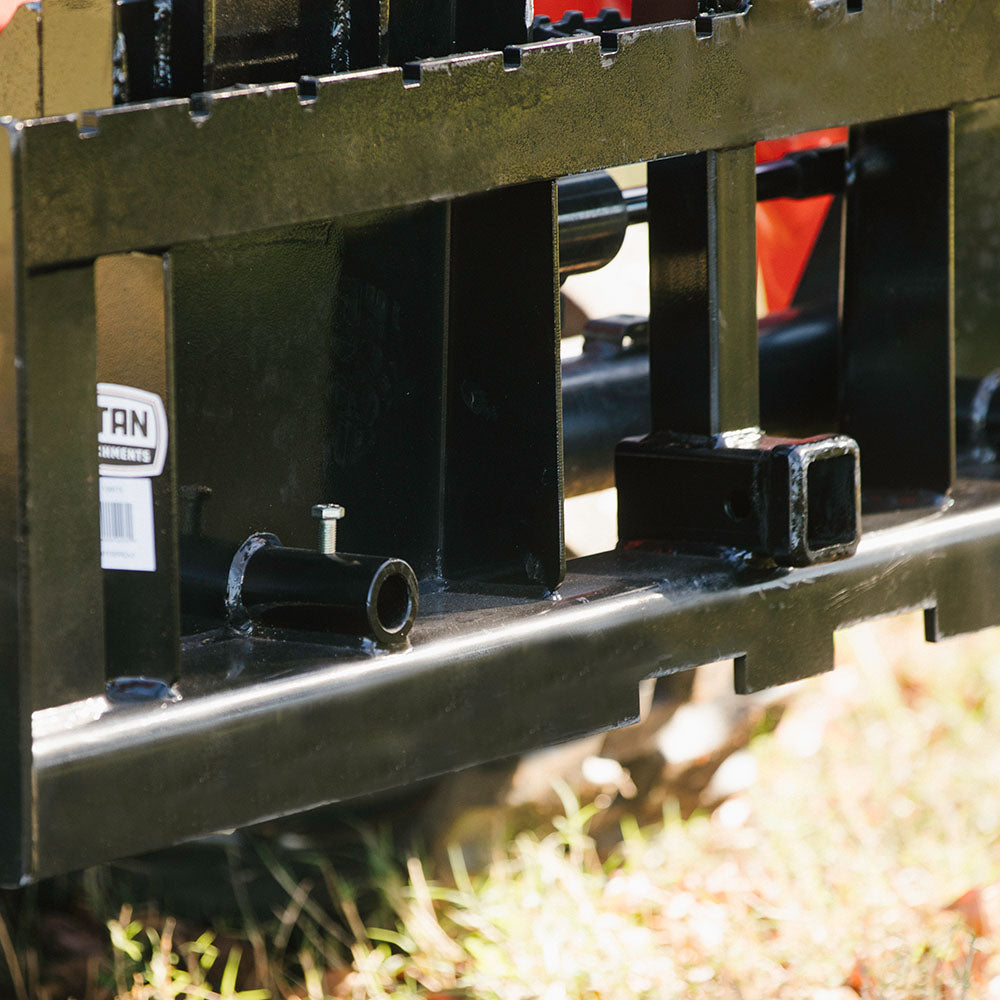

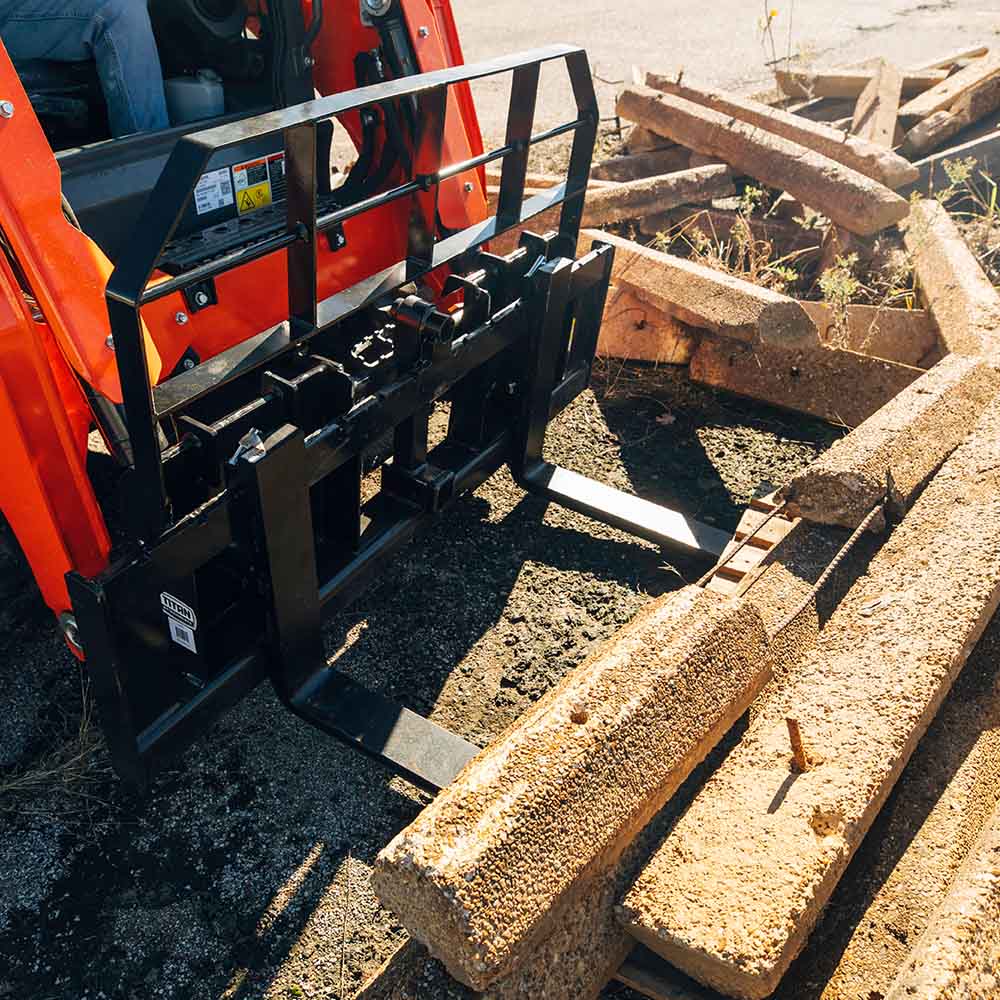

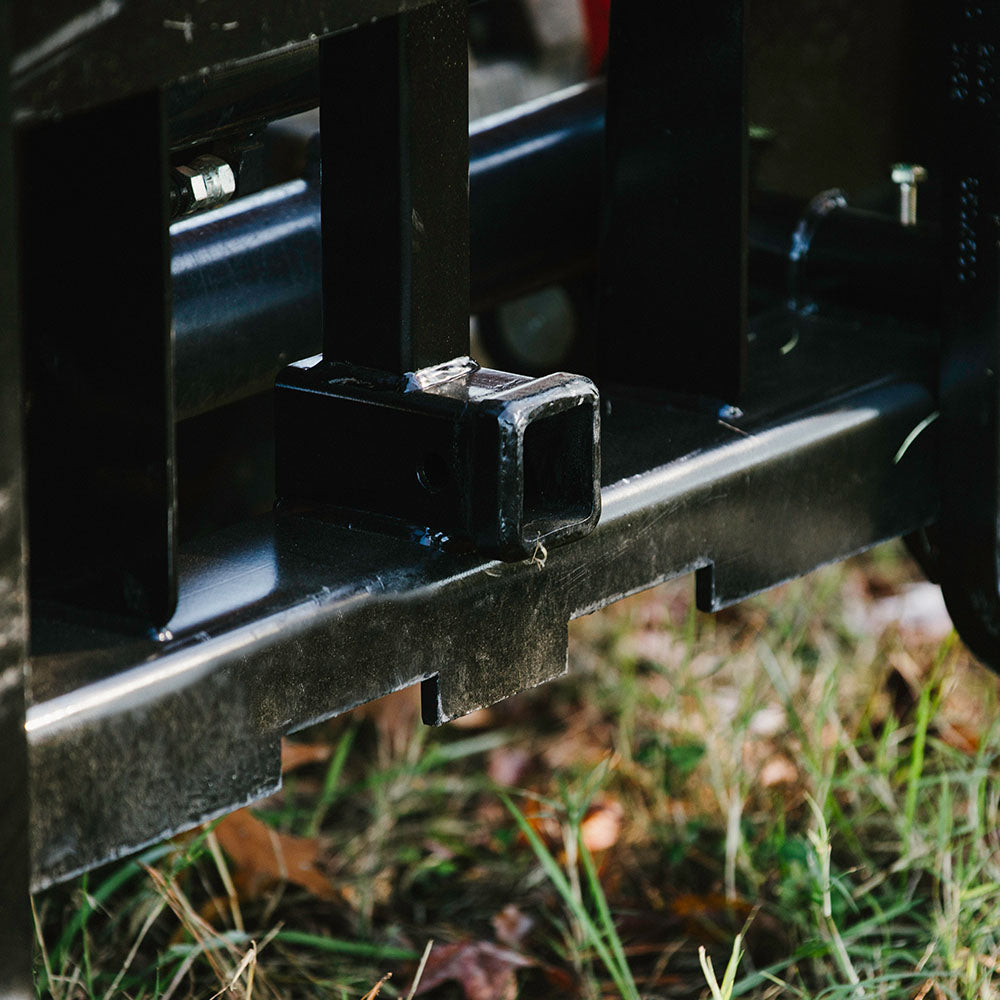

Rated at 5,000 LB, the all-in-one Pro Series Extra Wide Pallet Fork Frame has a higher weight capacity than the Standard Series frame and a wider design for extra demanding jobs and larger loads. This frame features a slotted carriage bar and is available with or without Class II pallet fork blades, making it ideal for moving pallets, logs, and other debris. And it has a 2" receiver hitch for transporting trailers and other tractor implements.

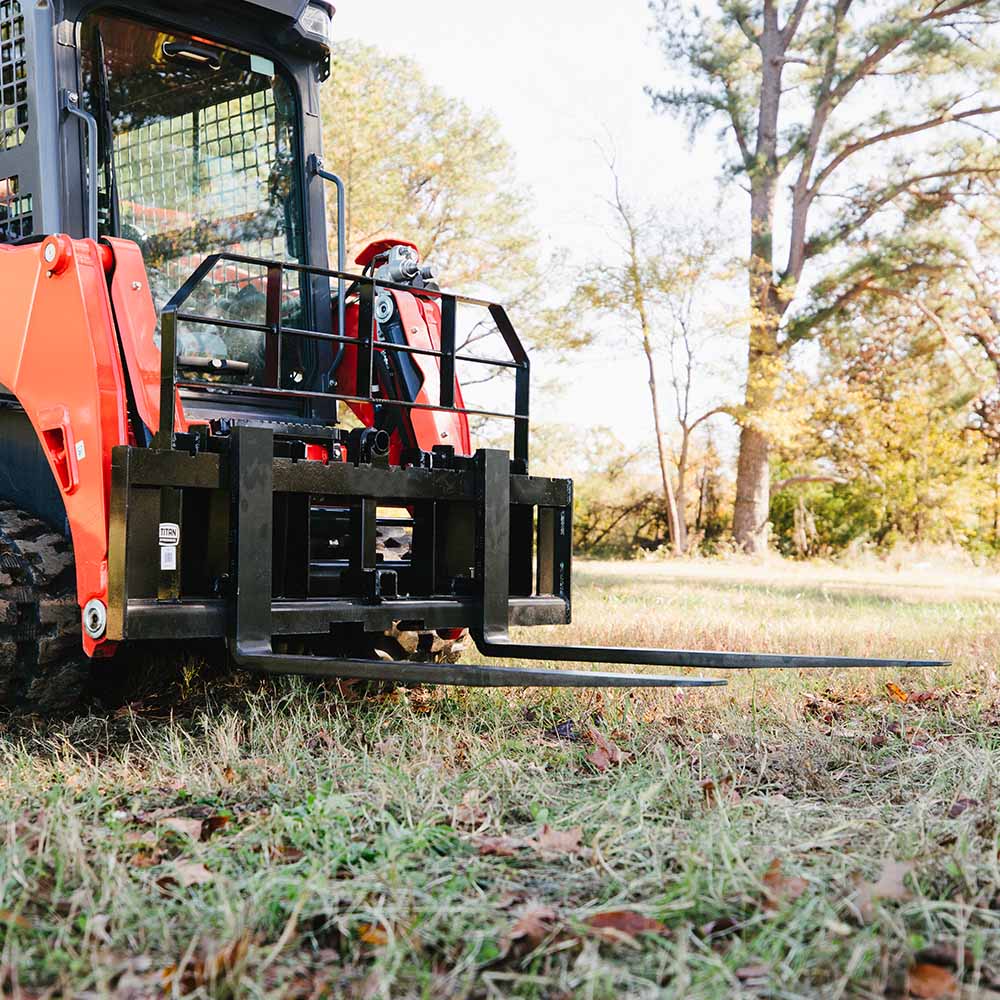

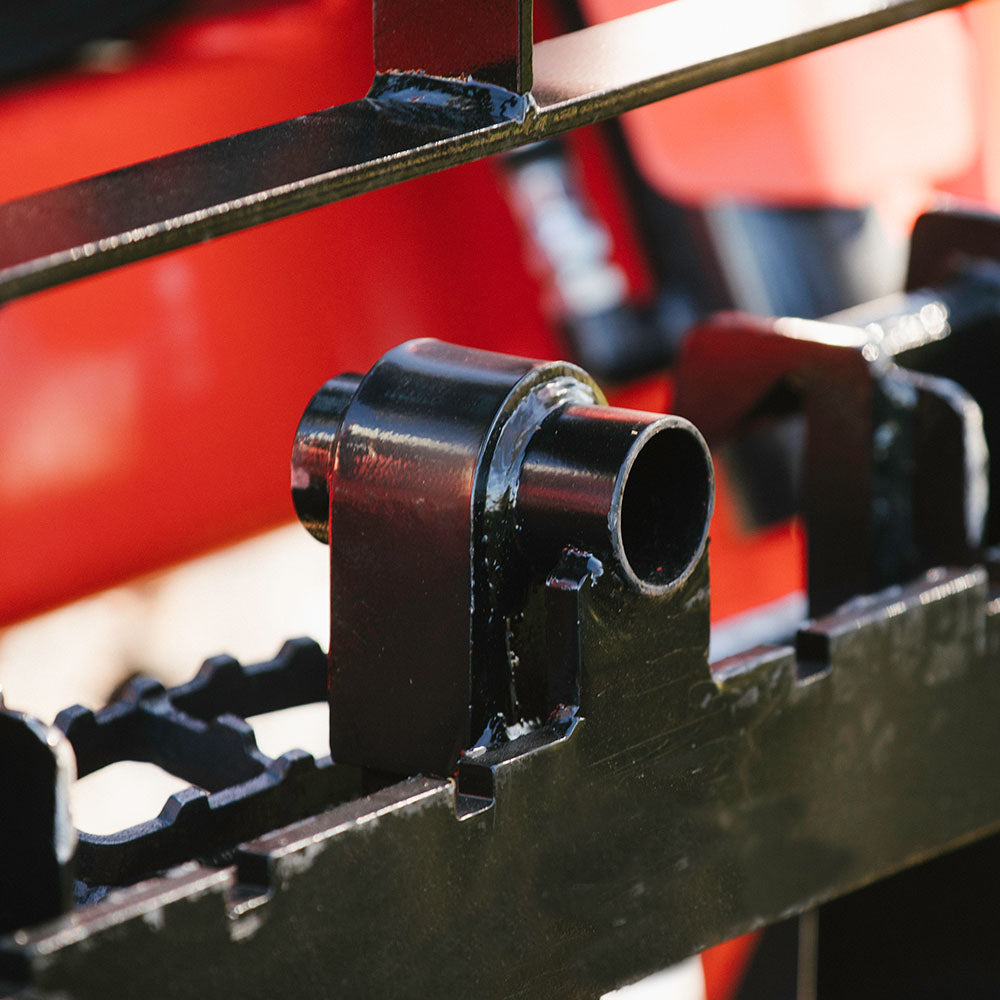

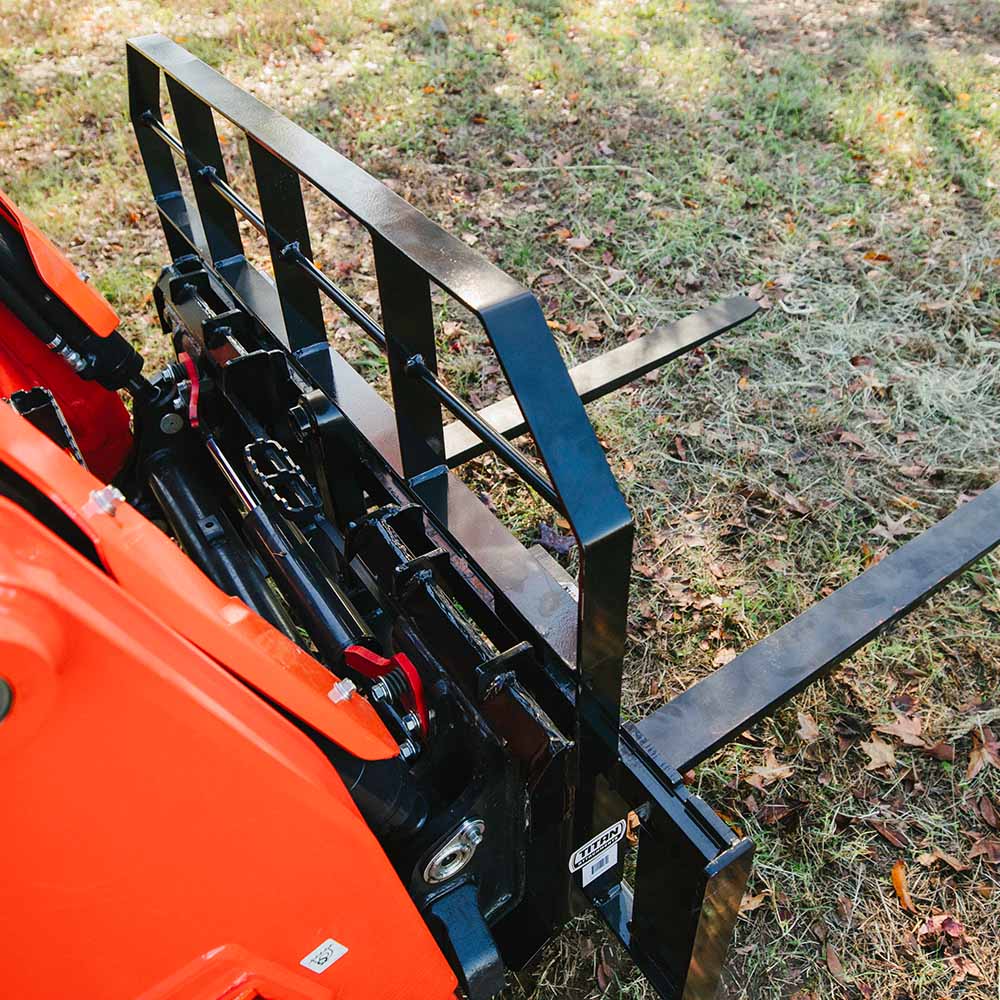

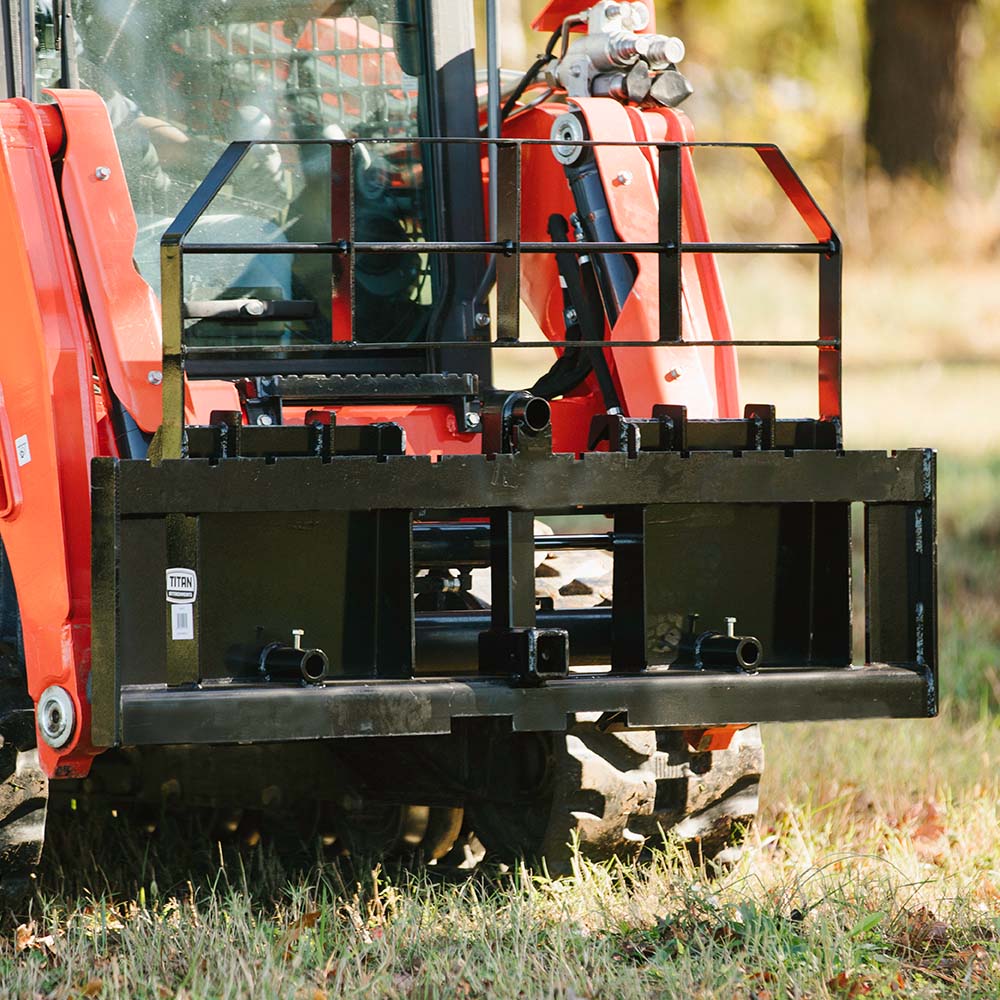

This model also includes one main Conus 2 hay spear sleeve and a pair of stabilizer spear sleeves welded to the frame for moving large hay bales quickly (spears sold separately). Equipped with an SSQA hookup, this fork frame connects to any skid steer, loader, or tractor with a universal skid steer quick tach mounting system and includes a see-through headache rack for added safety.
*NOTE: The capacity drops by 1,000 LB when lifting at the outmost sections of the frame.
We will need your phone number to schedule delivery.

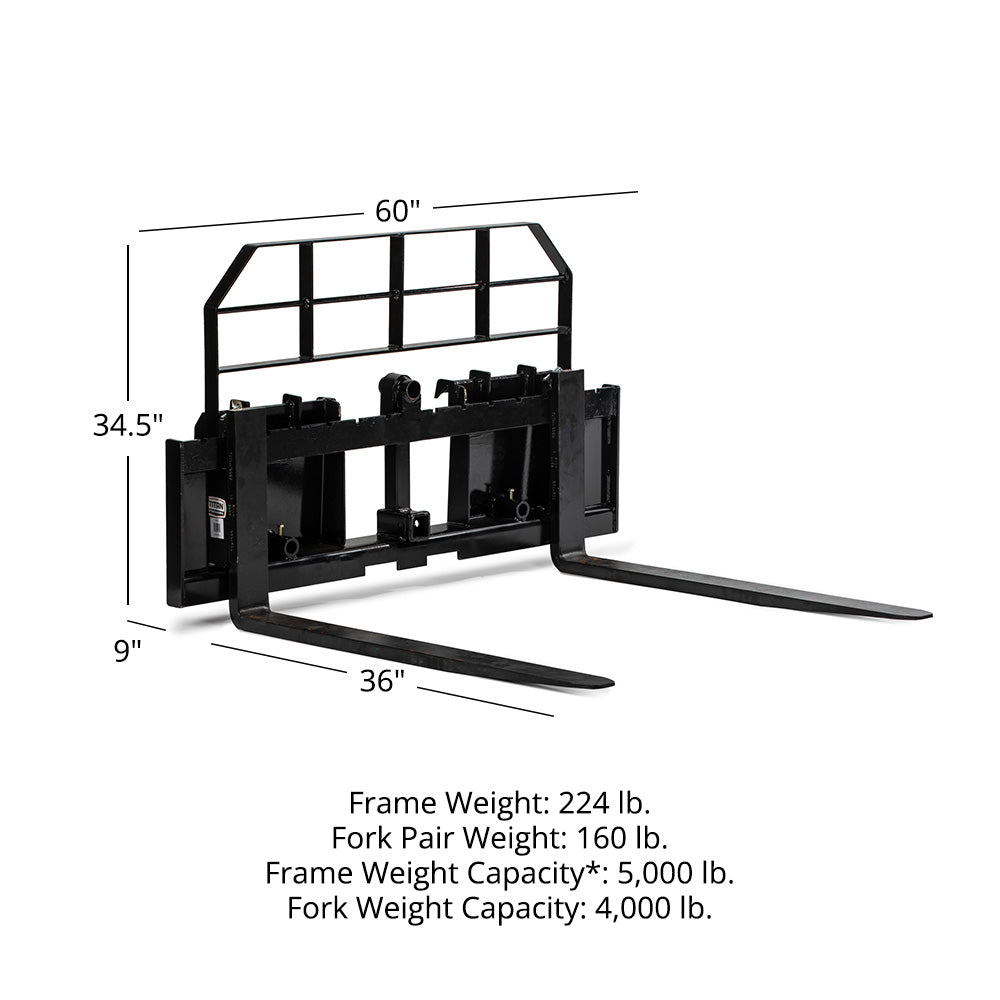

Specifications
Specifications

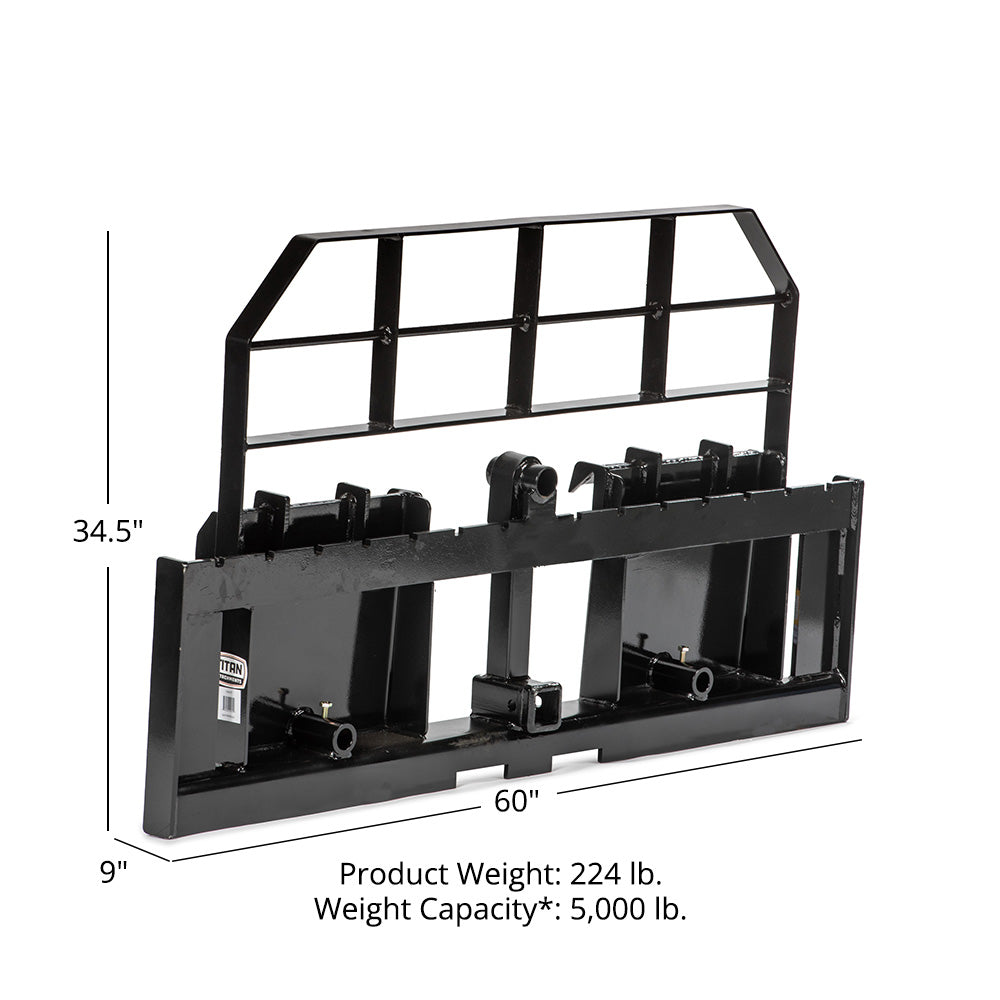

Frame Height
34.5-in.Frame Width
60-in.Frame Depth
9-in.Fork Length
36-in.Fork Width
4-in.Fork Thickness
1.25-in.Pallet Fork Blades
Class 2Upper to Lower Rail
16-in.Main Spear Sleeve
Conus 2Receiver Hitch Dimensions
2-in. x 2-in.Material
Finish
Powder-Coated CharcoalMaterial
SteelWeight
Frame Weight Capacity*
5,000 lb.Fork Weight Capacity
4,000 lb.Fork Pair Weight
160 lb.Frame Weight
224 lb.Details
- Universal skid steer quick tach mounting system
- All-in-one frame for moving pallets, hay bales, and trailers
- Features a see-through headache rack
- Features hay spear sleeves
- Features a 2" receiver hitch
- Accepts Class 2 pallet fork blades
- Accepts one Conus 2 hay bale spear (sold separate)
- Accepts a pair of stabilizer spears (sold separate)
- Extra wide for demanding jobs
