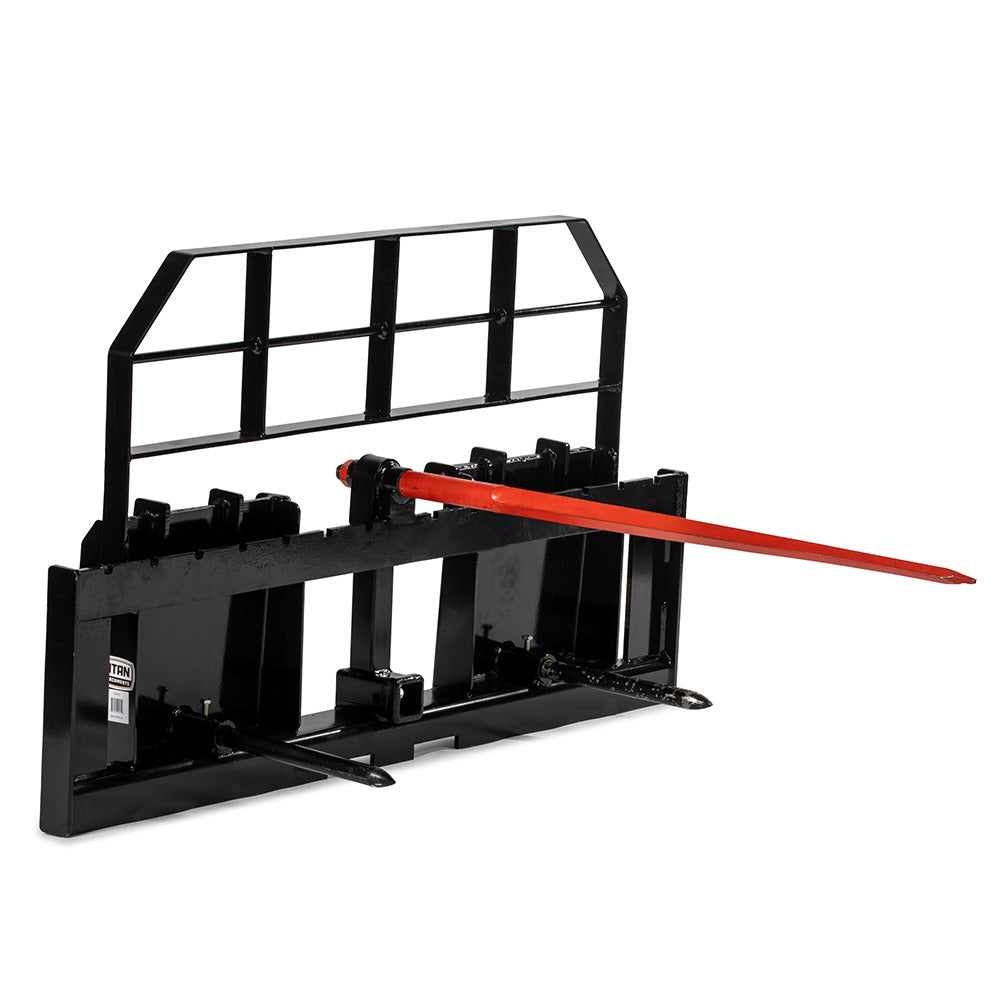

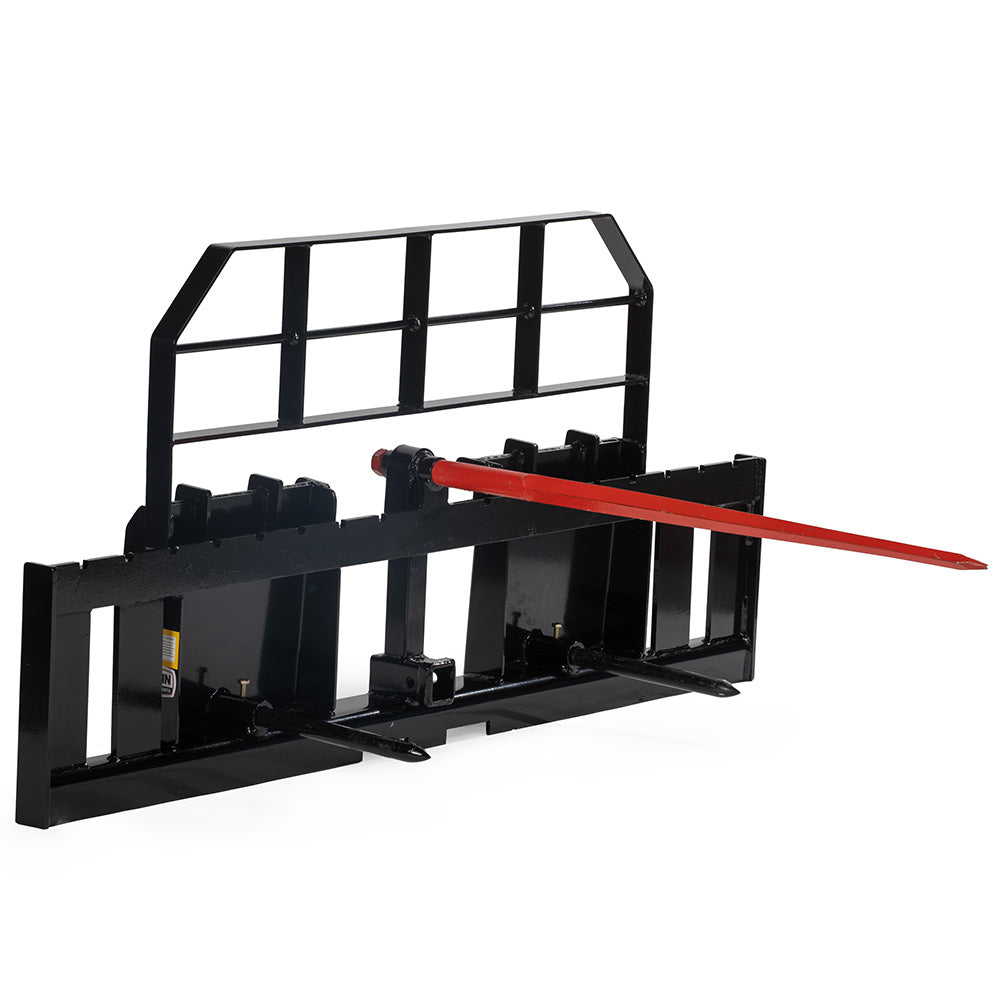

60" XL Hay Frame Attachment, 32" Hay Spear and Stabilizers
60" XL Hay Frame Attachment, 32" Hay Spear and Stabilizers
SKU: SKU: 139347
This is a carousel with product media. Use Next and Previous buttons to navigate, or jump to a slide.
This is a carousel with product media thumbs. Use the thumbs to navigate, or jump to a slide.
Product Overview

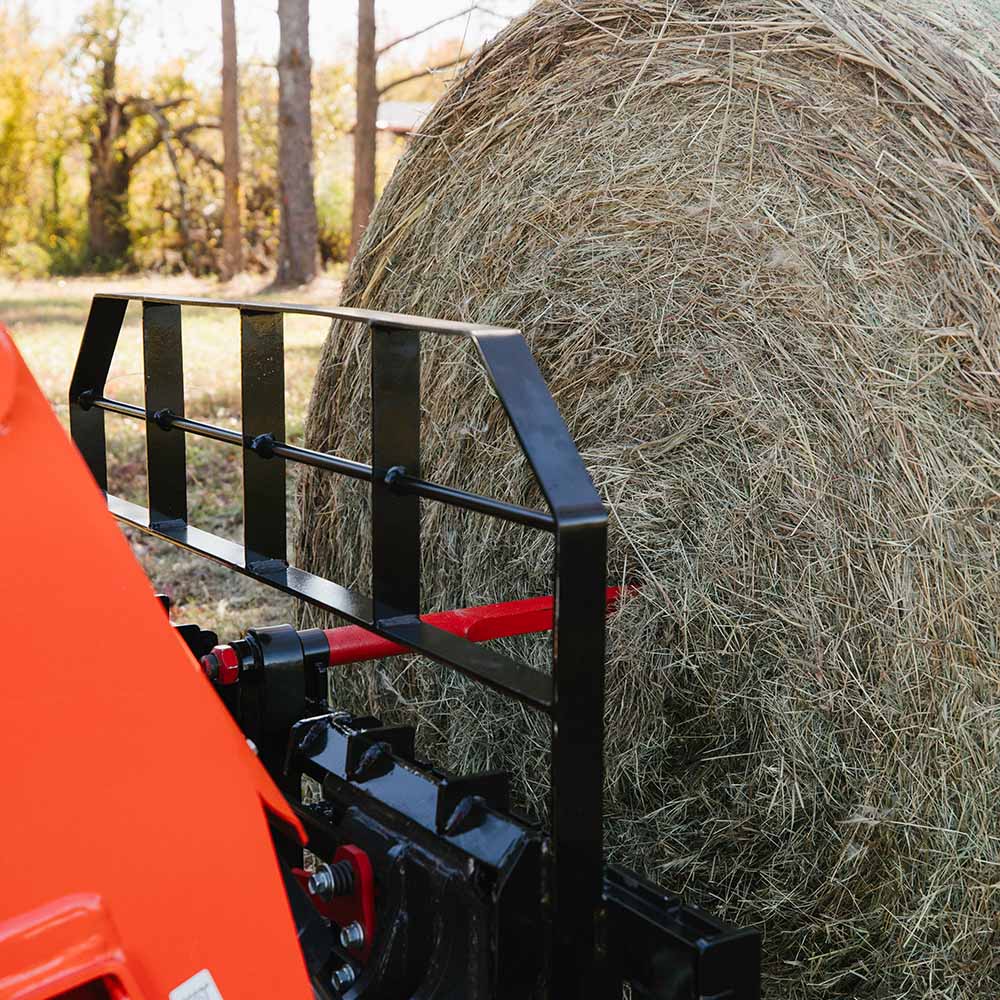

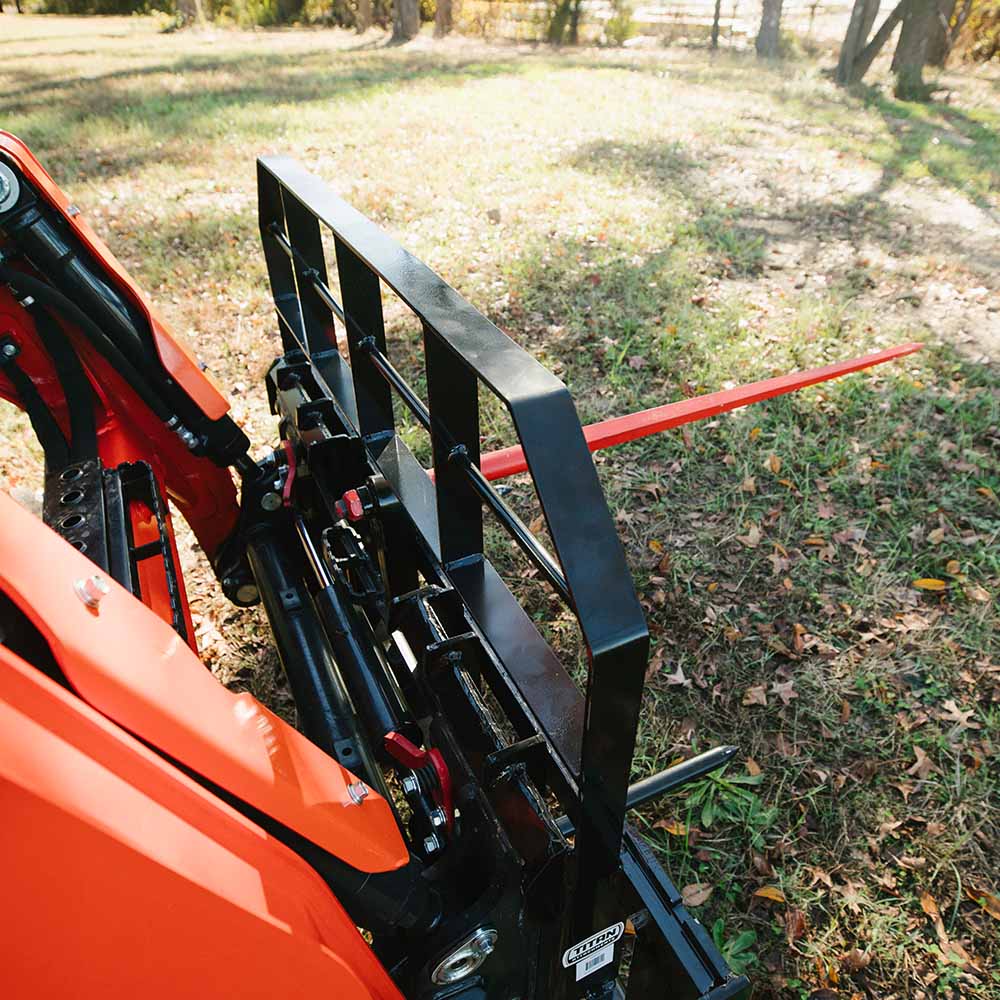

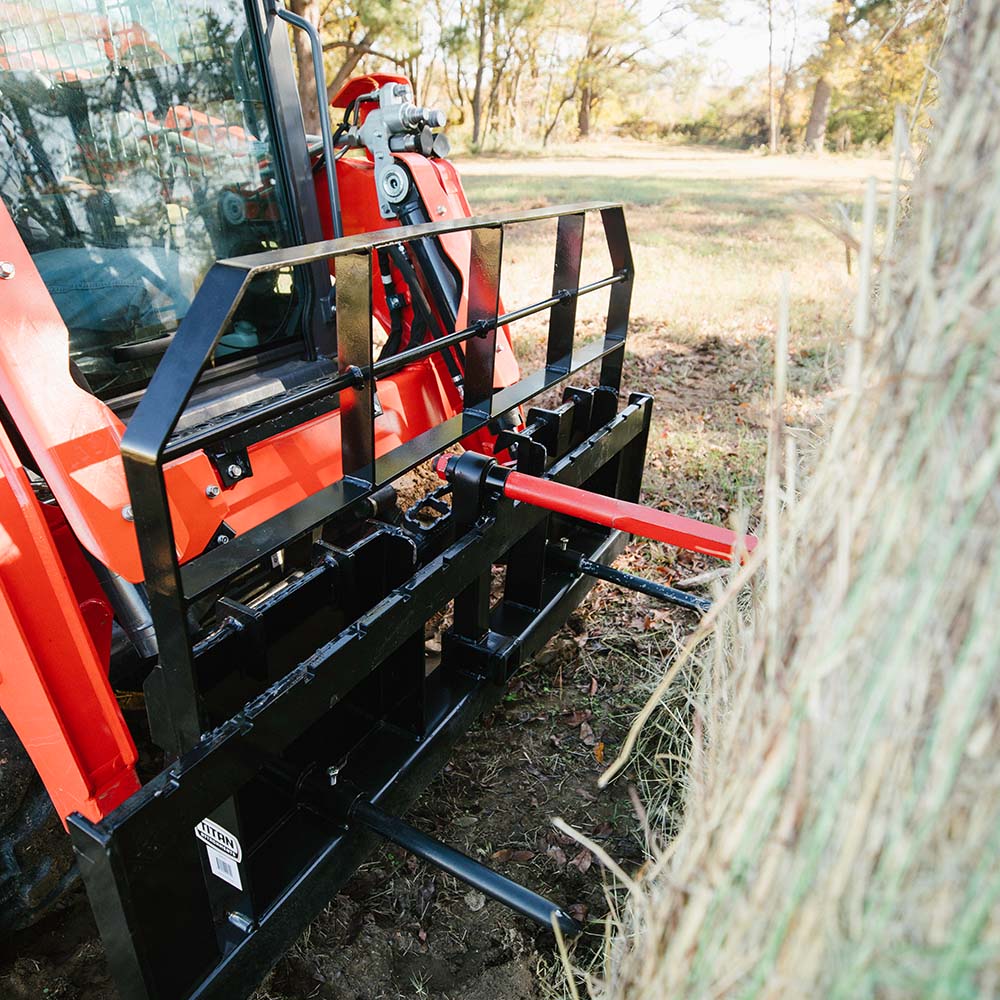

This all-in-one XL Hay Frame is designed to connect your skid steer or tractor equipped with the SSQA or Universal Skid Steer Style Quick Tach System. Great for hauling wide loads, this durable frame is rated at a 5,000 LB capacity and is crafted with a see-through headache rack to increase its durability and capacity. The frame features a 2" receiver hitch, a slotted carriage bar for mounting Class II pallet fork blades, and Conus 2 sleeves for installing hay bale spears. There is no need to worry about logs, hay bales, or other items falling back on your loader arms. All of these will come standard with this heavy-duty attachment. There is no need to have a frame for hay bales, one for moving pallets and debris, and another for moving trailers. Use this one frame to replace them all!
NOTE: The capacity drops 1,000 LB if lifting at the outmost sections of the extended frame. Additionally, when you order this product, we will need your phone number for the trucking company to schedule delivery.

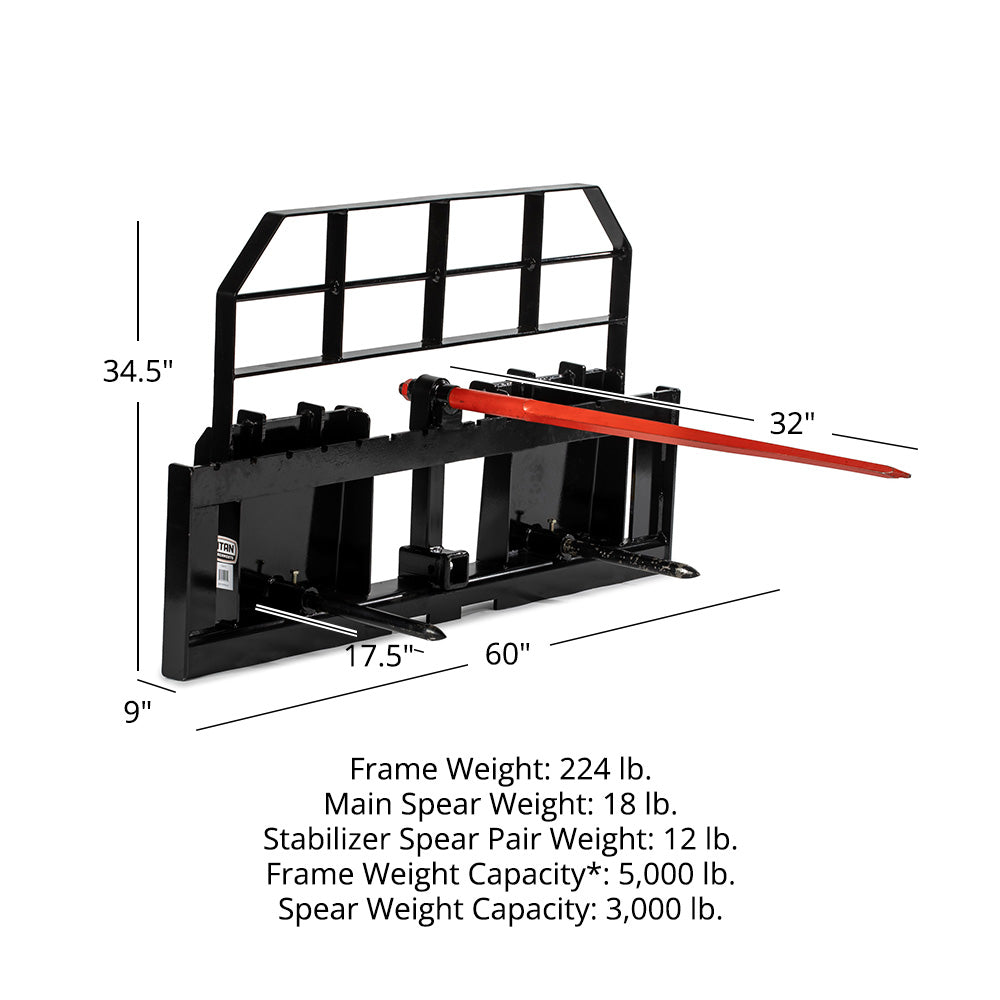

Specifications
Specifications
Overall Height
34.5-in.Overall Length
60-in.Overall Depth
6.75-in.Main Spear Sleeve
Conus 2Main Spear Overall Length
32-in.Main Spear Diameter
1.75-in. taperedStabilizer Spear Length
17.5-in.Stabilizer Spear Diameter
1.25-in.Fork Width Adjusts
6-in to 58-in.Frame Finish
Powder-Coated CharcoalFrame Material
Durable SteelFrame Capacity*
5,000 lb.Spear Weight Capacity
3,000 lb.Main Spear Weight
18 lb.Stabilizer Spear Pair Weight
12 lb.Frame Weight
225 lb.Details
- Universal Skid Steer Quick Tach Mounting System
- All-in-one frame design for moving pallets, large round hay bales, and trailers
- Carriage Bars and Hay Spear Sleeves installed

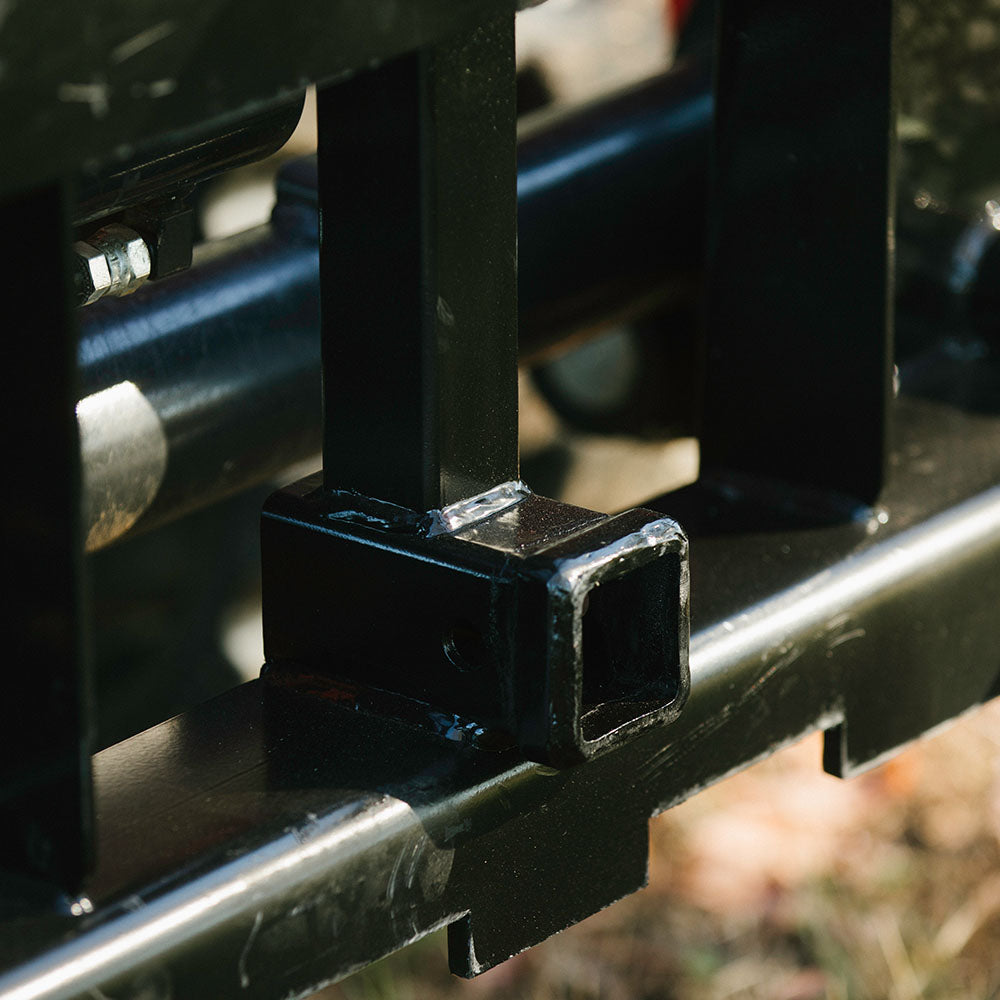

- Standard 2" trailer receiver hitch
- Accepts Class II Pallet Fork Blades (sold separate)
- Includes a Conus 2 Hay Bale Spear

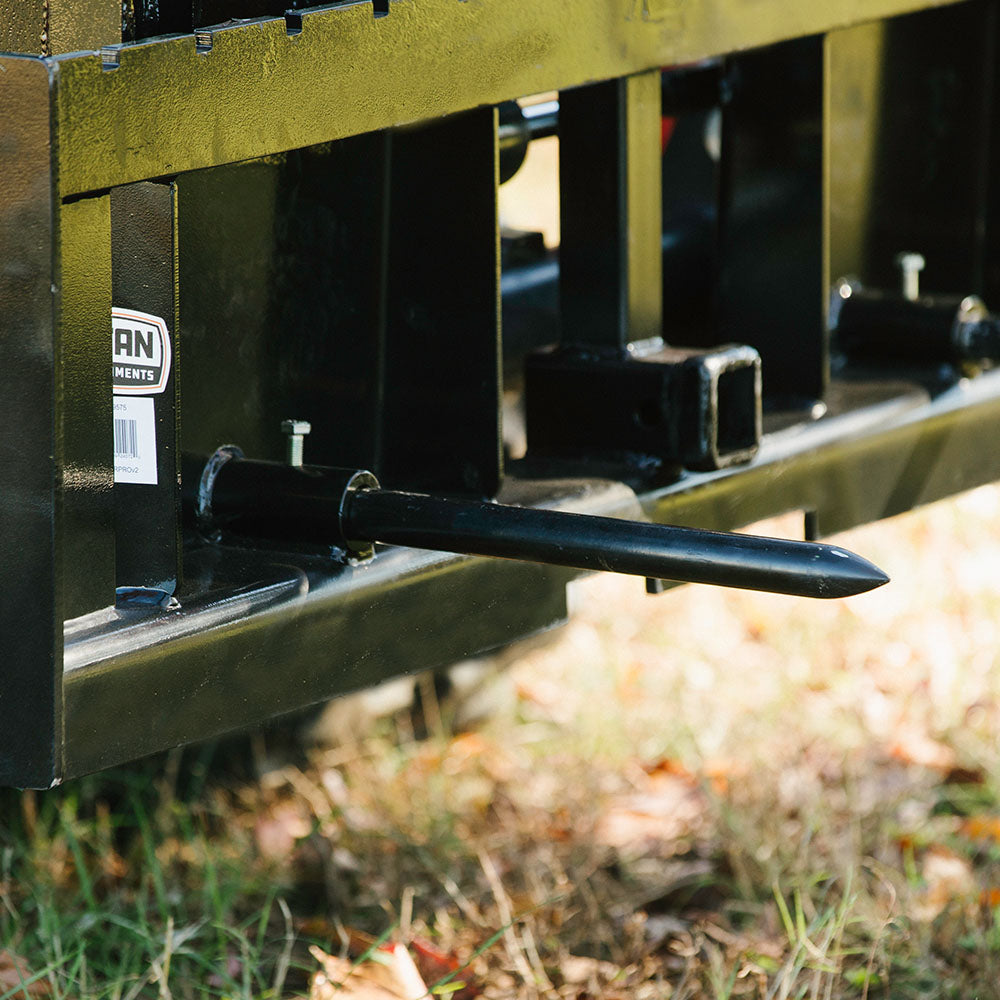

- Includes a pair of 17.5" Stabilizer Spears
- *NOTE: The capacity drops 1,000 LB if lifting at the outmost sections of the extended frame
