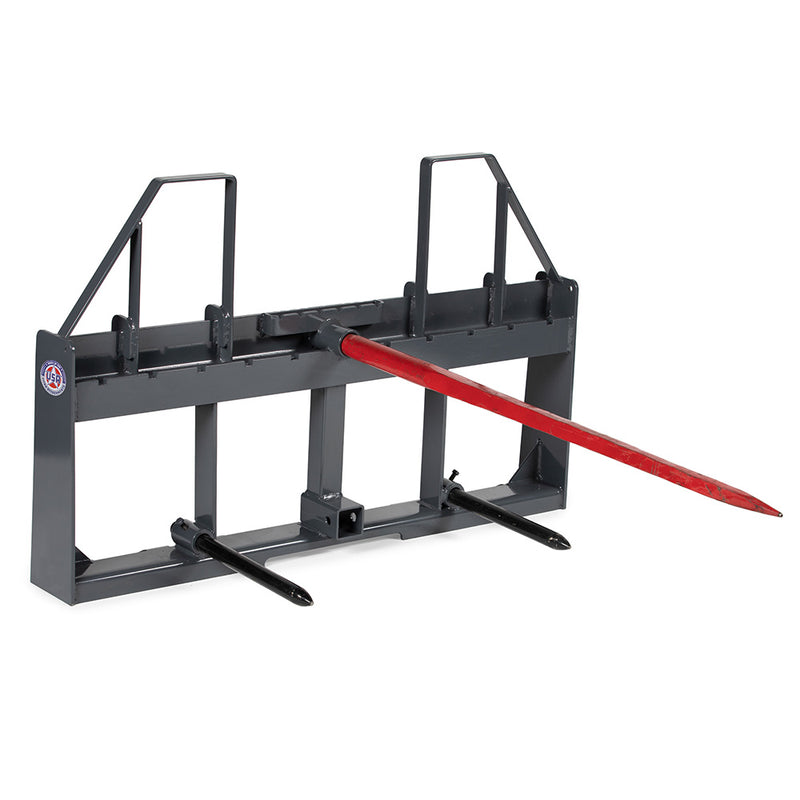

Standard Series USA Made Step-Through Hay Frame Attachment, 32" Hay Spear and Stabilizers
Standard Series USA Made Step-Through Hay Frame Attachment, 32" Hay Spear and Stabilizers
SKU: SKU: 139553
This is a carousel with product media. Use Next and Previous buttons to navigate, or jump to a slide.
This is a carousel with product media thumbs. Use the thumbs to navigate, or jump to a slide.
Product Overview
NOTE: When you order this product, we will need your phone number for the trucking company to schedule delivery. Without your number, there could be a delay.
Specifications
Specifications

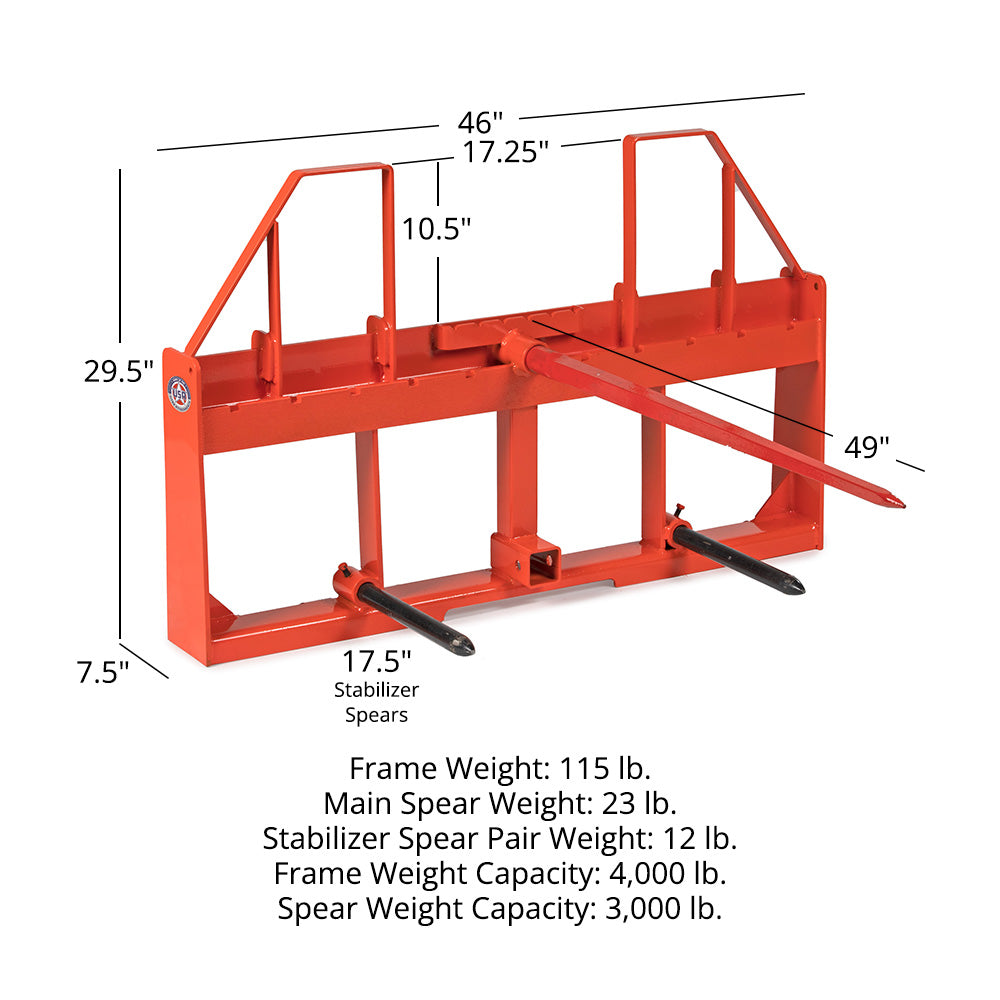

Overall Height
29.5-inOverall Width
46-in.Overall Depth
6.5-in.Walk Through Dimensions
10.5-in. x 17.25-in.Fork Width Adjusts
6-in to 44-in.Upper to Lower Rail
16-in.Main Spear Sleeve
Conus 2Main Spear Overall Length
32-in.Main Spear Diameter
1.75-in. taperedStabilizer Spear Length
17.5-in.Stabilizer Spear Diameter
1.25-in.Main Spear Finish
Powder-Coated RedStabilizer Spear Finish
Powder-Coated BlackFrame Finish
Powder-Coated GreyMaterial
SteelFrame Weight Capacity
4,000 lb.Spear Weight Capacity
3,000 lb.Main Spear Weight
18 lb.Stabilizer Spear Pair Weight
12 lb.Frame Weight
115 lb.Details
- Proudly made in the USA!
- Universal Skid Steer Quick Tach Mounting System
- Unique step-through design with safety tread plate
- Safely move hay bales with the added stability of a headache rack
- Carriage Bars and Hay Spear Sleeves are already installed
- Standard 2-inch trailer receiver hitch is welded to the frame
- All in one frame design for moving pallets, large round hay bales, and trailers
- Accepts Class II Pallet Fork Blades (sold separate)
- Included: One Conus 2 Hay Bale Spear
- Included: Pair of 17.5-inch Stabilizer Spears
Additional Info
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Disclaimer
This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any equipment, including this one, involves the potential risk of injury. You accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages, rights of action, or causes of action, present or future, whether the same be known or unknown, anticipated, or unanticipated, resulting from or arising out of the use of said equipment.
TITAN MAKES NO WARRANTY WHATSOEVER WITH RESPECT TO THE EQUIPMENT, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, WHETHER EXPRESS OR IMPLIED BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OF TRADE OR OTHERWISE. BUYER ASSUMES ALL LIABILITY IN USE OF THE EQUIPMENT.
