USA Made Standard Series Hay Frame Attachment

$664.96

$949.99 $664.96 30% off (Save $285.03)

USA Made Standard Series Hay Frame Attachment | Grey / 32" Main Spear + 17.5" Stabilizers

USA Made Standard Series Hay Frame Attachment | Grey / 39" Main Spear + 17.5" Stabilizers

USA Made Standard Series Hay Frame Attachment | Grey / 43" Main Spear + 17.5" Stabilizers

USA Made Standard Series Hay Frame Attachment | Grey / 49" Main Spear + 17.5" Stabilizers

USA Made Standard Series Hay Frame Attachment | Orange / 32" Main Spear + 17.5" Stabilizers

USA Made Standard Series Hay Frame Attachment | Orange / 39" Main Spear + 17.5" Stabilizers

USA Made Standard Series Hay Frame Attachment | Orange / 43" Main Spear + 17.5" Stabilizers

USA Made Standard Series Hay Frame Attachment | Orange / 49" Main Spear + 17.5" Stabilizers

USA Made Standard Series Hay Frame Attachment

Limited Time Offer

USA Made Standard Series Hay Frame Attachment | 32" Hay Spear And Stabilizers

$664.96

$949.99 $664.96 30% off (Save $285.03)

Promo codes are not eligible on this item

USA Made Standard Series hay frame with 32" Conus 2 Hay Spear and dual stabilizers for fast, secure, and effortless bale handling.

Connection Type : Universal Skid Steer Quick Tach

Choose Color: Grey

Choose Hay Bale Spear Length: 32" Main Spear + 17.5" Stabilizers

32" Main Spear + 17.5" Stabilizers 39" Main Spear + 17.5" Stabilizers 43" Main Spear + 17.5" Stabilizers 49" Main Spear + 17.5" Stabilizers

Product variants

SKU: SKU: 132365

Availability:

Low Inventory Order Soon!

Fast & Free Shipping on Every Order

Handling fee applies to oversize items

1-Year warranty included

Extended coverage available with Mulberry

Buy Now, Pay Later

Flexible payment options available with Bread Pay™

View full details

USA Made Standard Series Hay Frame Attachment

Overview Specs Details Reviews

$664.96

$949.99 $664.96

30% off (Save $285.03)

$664.96

$949.99 $664.96

30% off (Save $285.03)

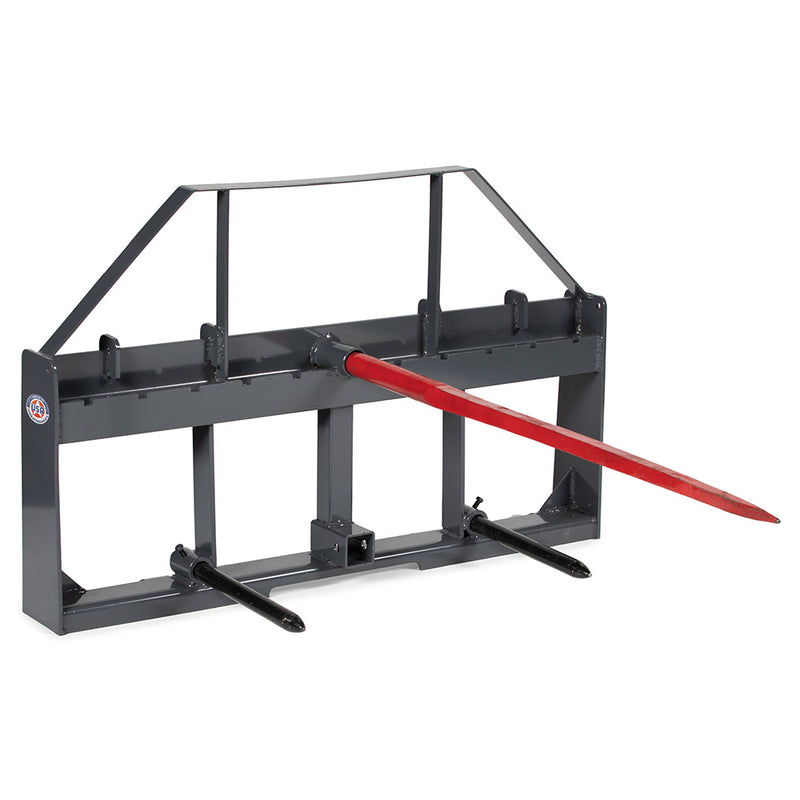

Made in the USA, this hay frame lifts up to 4,000 LB of hay bales, pallets, logs, and other materials. It attaches quickly to any skid steer or tractor with an SSQA mounting system. The frame features a Conus 2 hay spear sleeve and two welded stabilizer sleeves (hay spear available in your choice of length) for handling large bales, plus a built-in 2" receiver hitch for light towing. It fits Class II pallet fork blades (sold separately) and includes a heavy-duty, see-through headache rack for added strength and visibility. Compatible with many popular brands, including New Holland, Bobcat skid steers, and Kubota tractors.

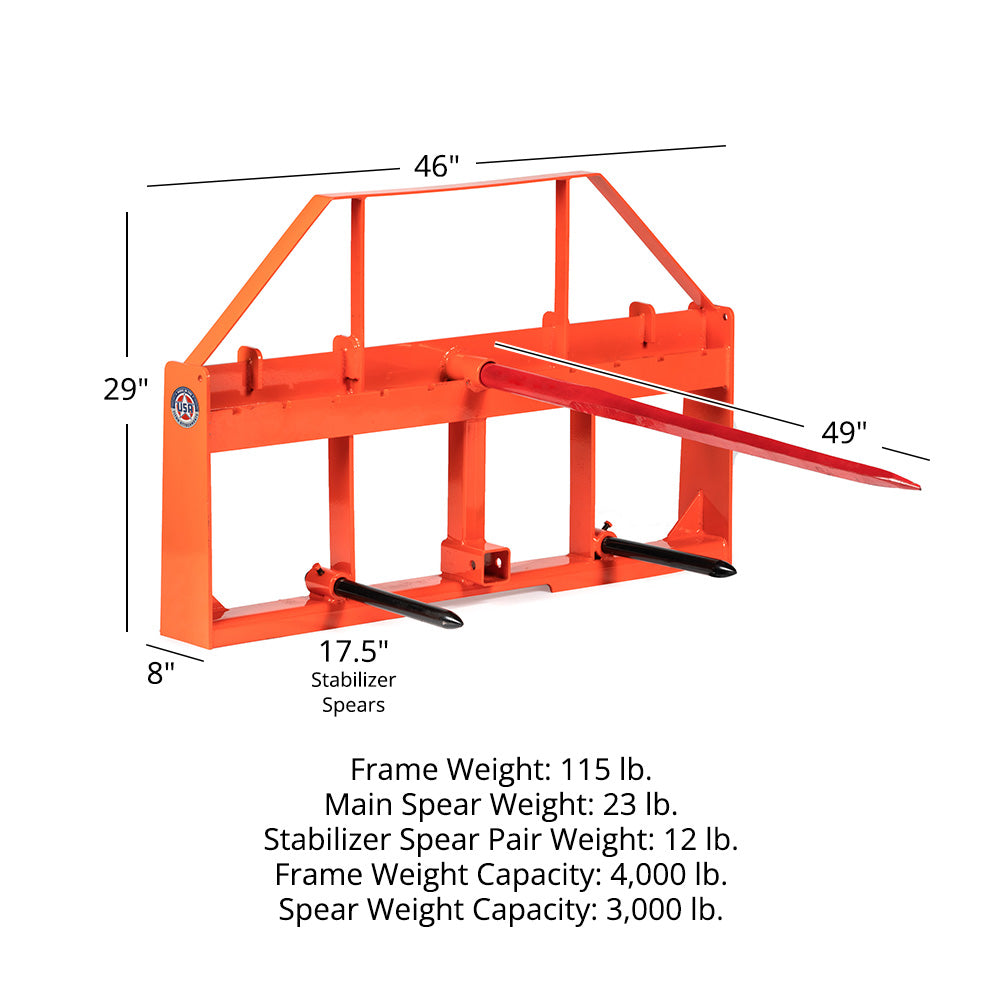

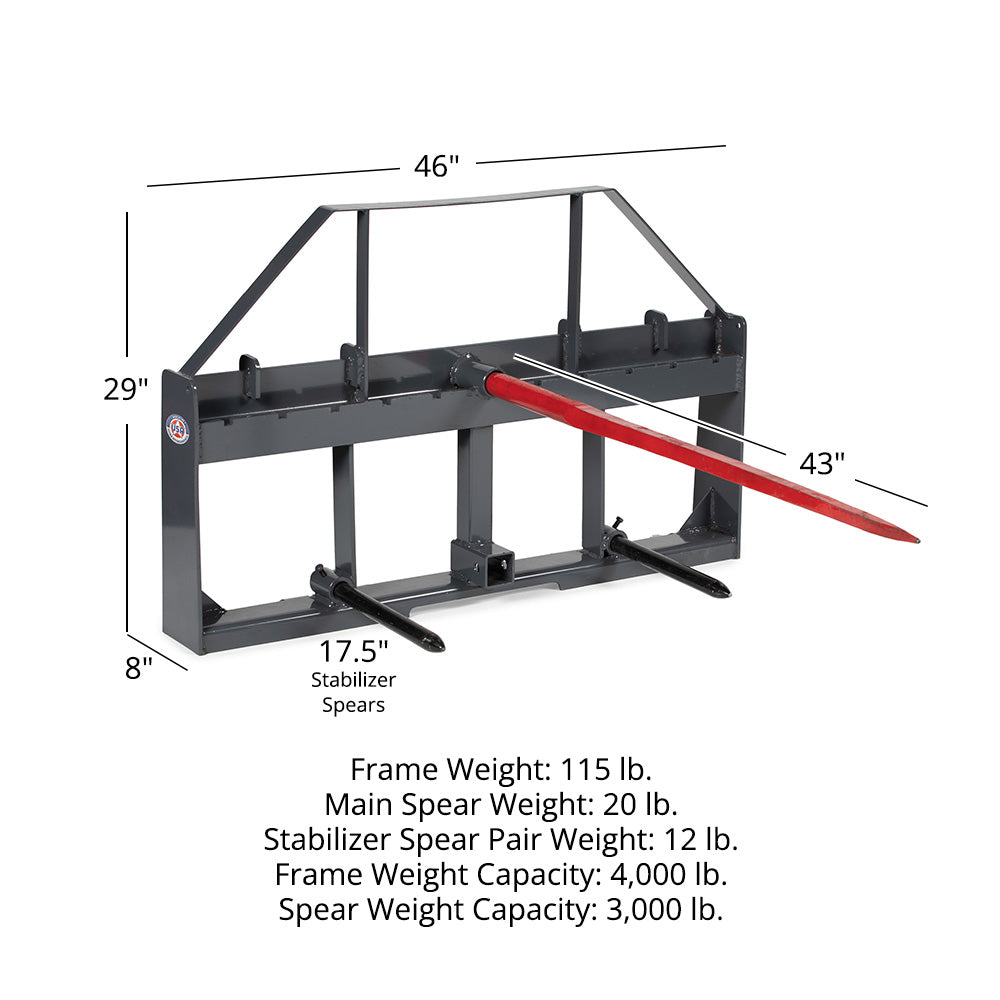

Specifications

Frame Height

29-in.

Frame Width

46-in.

Frame Depth

8-in.

Main Spear Sleeve

Conus 2

Main Spear Overall Length

32-in.

Stabilizer Spear Length

1.75-in.

Pallet Fork Blades

Class 2

Upper to Lower Rail

16-in.

Receiver Hitch Dimensions

2-in. x 2-in.

Material

Finish

Powder-Coated Grey

Material

Steel

Weight

Frame Weight Capacity

4,000 lb

Spear Weight Capacity

3,000 lb.

Main Spear Weight

18 lb.

Stabilizer Spear Pair Weight

12 lb.

Frame Weight

115 lb.

Details

‍Made in the USA
‍Universal Skid Steer Quick Tach Mounting System
‍3-in-1 fork frame for moving pallets, hay bales, and trailers
‍Features a see-through headache rack
‍Features hay spear sleeves

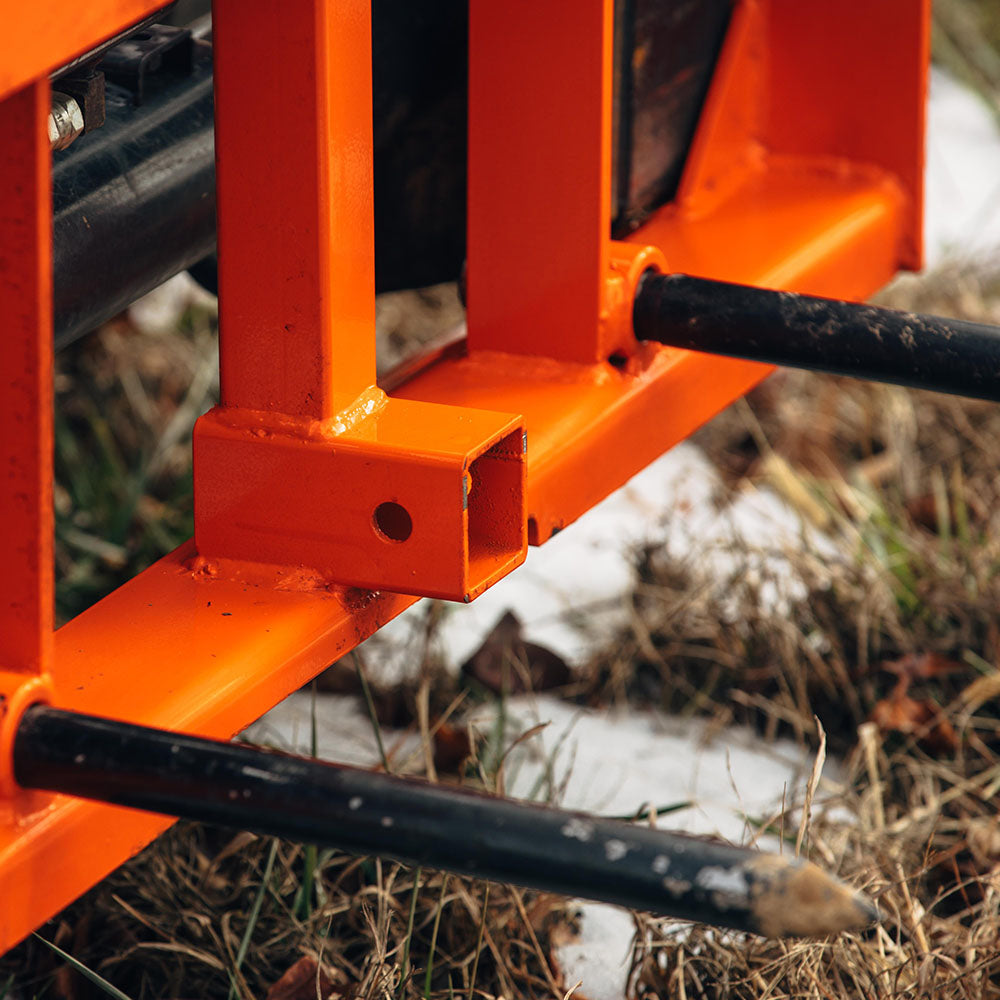

‍Features a 2" receiver hitch
‍Accepts Class 2 pallet fork blades (sold separate)
‍Accepts one Conus 2 hay bale spear
‍Accepts a pair of stabilizer spears

View Product Manual

Additional Info

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Disclaimer

This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any equipment, including this one, involves the potential risk of injury. You accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages, rights of action, or causes of action, present or future, whether the same be known or unknown, anticipated, or unanticipated, resulting from or arising out of the use of said equipment.

TITAN MAKES NO WARRANTY WHATSOEVER WITH RESPECT TO THE EQUIPMENT, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, WHETHER EXPRESS OR IMPLIED BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OF TRADE OR OTHERWISE. BUYER ASSUMES ALL LIABILITY IN USE OF THE EQUIPMENT.
