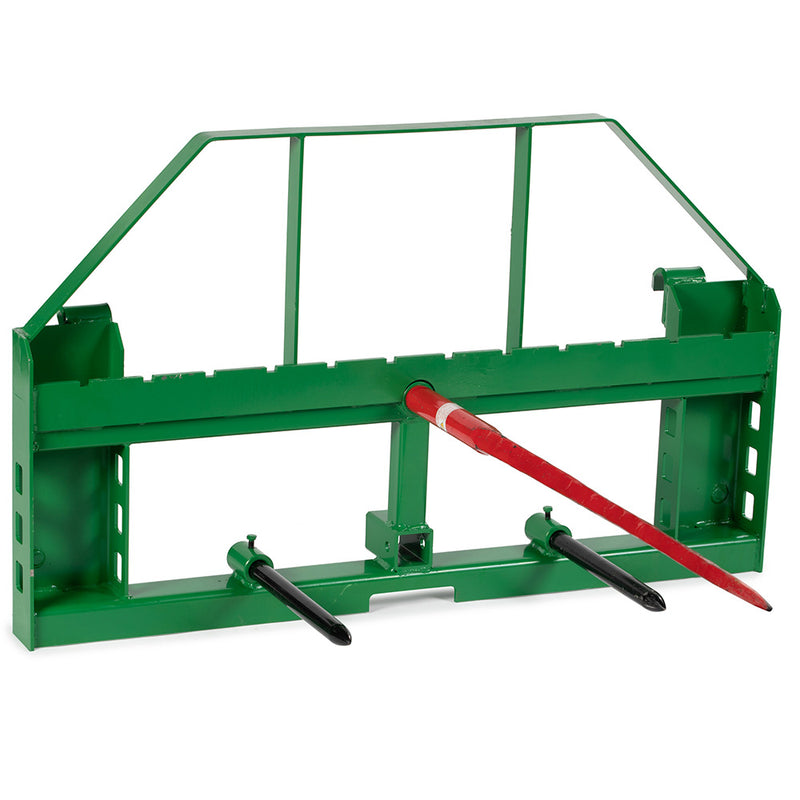

Standard Series Hay Frame Attachment, 32" Hay Spears and Stabilizers
Standard Series Hay Frame Attachment, 32" Hay Spears and Stabilizers
SKU: SKU: 132249
This is a carousel with product media. Use Next and Previous buttons to navigate, or jump to a slide.
This is a carousel with product media thumbs. Use the thumbs to navigate, or jump to a slide.
Product Overview
NOTE: When you order this product, we will need your phone number for the trucking company to schedule delivery. Without your number, there could be a delay.

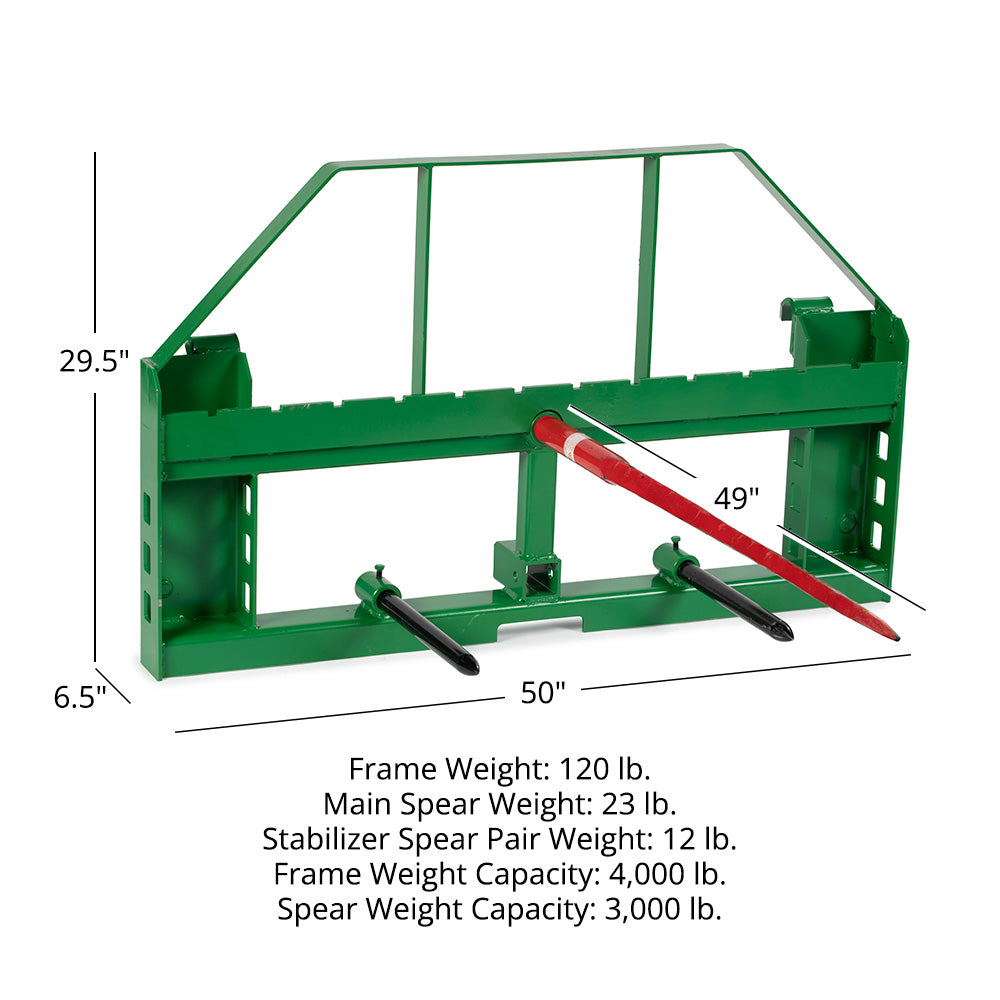

Specifications
Specifications
Overall Frame Height
29.5-in.Overall Frame Length
50-in.Overall Frame Width
4-in.Fork Width Adjusts
11.75-in to 43-in.Main Spear Sleeve
Conus 2Main Spear Length
32-in.Main Spear Diameter
1.75-in. taperOverall Spear Length
32-in.Stabilizer Overall Length
17.5-in.Stabilizer Diameter
1.25-in.Finish
Powder-Coated GreenMaterial
SteelMain Spear Product Weight
18 lb.Stabilizer Product Weight
6 lb. eachSpear Weight Capacity
3,000 lb.Frame Weight Capacity
4,000 lb.Frame Weight
120 lb.Details
- Compatible with John Deere Loaders
- Safely move hay bales with the added stability of a headache rack
- Carriage Bars and Hay Spear Sleeves are already installed
- Standard 2-inch trailer receiver hitch is welded to the frame
- All in one frame design for moving pallets, large round hay bales, and trailers
- Accepts Class II Pallet Fork Blades (sold separate)
- Included: One 32-inch Conus 2 Hay Bale Spear
- Included: Pair of 17.5-inch Stabilizer Spears
- Top pin set fits D120, D160, D170, H120, H130, H140, 120R, 200X, 200CX, 220R, 300X, 300CX, 300E, 300R, 305, 320R, 400X, 400CX, 410, 419, 420, 440, 440R, and 460 series loaders
- Bottom pin set fits 500, 510, 512, 520, 521, 540, 541, 542, and 553 series Ag loaders
- Does not fit any loaders equipped with the Global/Euro style or universal Skid Steer style mount
Additional Info
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Disclaimer
This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any equipment, including this one, involves the potential risk of injury. You accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages, rights of action, or causes of action, present or future, whether the same be known or unknown, anticipated, or unanticipated, resulting from or arising out of the use of said equipment.
TITAN MAKES NO WARRANTY WHATSOEVER WITH RESPECT TO THE EQUIPMENT, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, WHETHER EXPRESS OR IMPLIED BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OF TRADE OR OTHERWISE. BUYER ASSUMES ALL LIABILITY IN USE OF THE EQUIPMENT.
