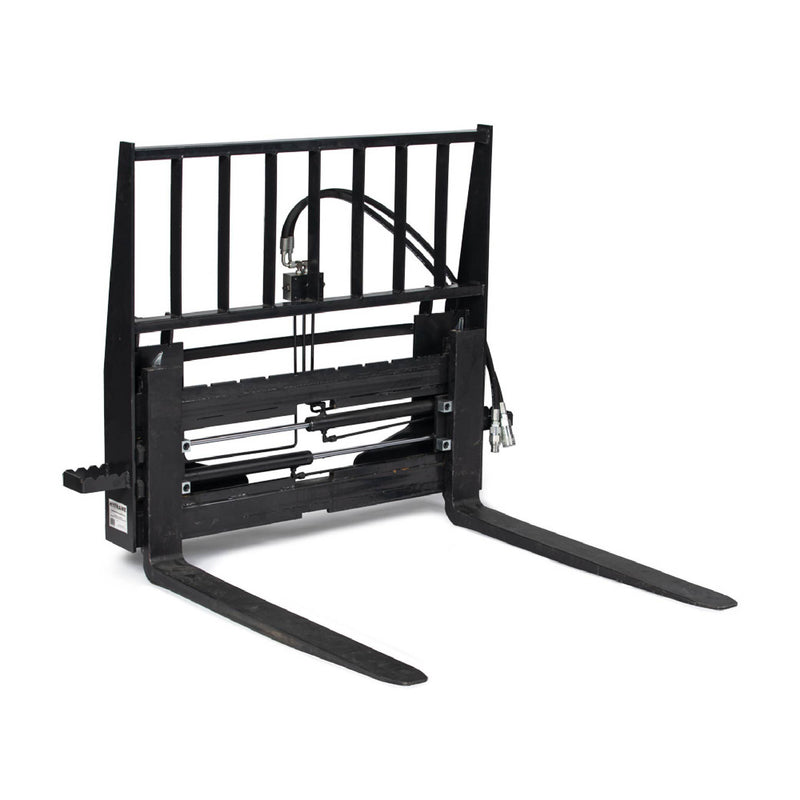

Standard Series Adjustable Hydraulic Pallet Fork Frame
Standard Series Adjustable Hydraulic Pallet Fork Frame
SKU: SKU: 132127
This is a carousel with product media. Use Next and Previous buttons to navigate, or jump to a slide.
This is a carousel with product media thumbs. Use the thumbs to navigate, or jump to a slide.
Product Overview
The Standard Series Hydraulic Pallet Fork Frame uses hydraulic power to adjust the width between forks without leaving the operator’s seat. It is designed to connect your skid steer or tractor equipped with the SSQA or Universal Skid Steer Style Quick Tach System. This innovative frame is ideal for hauling pallets, lumber, or other material. It is rated at a 4,000 LB capacity and is crafted with a see-through headache rack to provide excellent fork/load visibility. The frame features a slotted carriage bar for mounting Class II pallet fork blades, dual hydraulic cylinders, and side steps for easy entry into the cab. Increase your productivity, lift and load faster, and get more work done on the jobsite with the Adjustable Hydraulic Sliding Fork Frame.
Specifications
Specifications
Frame Height
42-in.Frame Width
55-in.Frame Depth
6-in.Adjusts Hydraulically
8-in. - 40-in. on centerFinish
Powder-Coated BlackMaterial
SteelWeight Capacity
4,000 lb.Product Weight
245 lb.Details
- Universal Skid Steer Quick Tach Mounting System
- Adjust the pallet fork blades simultaneously from 8" to 40" wide without leaving the cab
- Ideal frame when working in tight areas or along narrow aisles
- Integrated headache rack
- Side steps on each side
- Dual cylinders adjust your forks and keep them centered on your frame
- Includes hoses and flat-faced couplers
- Accepts Class II pallet fork blades
REPLACEMENT PARTS
- 132126 - Hydraulic Hose Kit
Additional Info
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Disclaimer
This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any equipment, including this one, involves the potential risk of injury. You accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages, rights of action, or causes of action, present or future, whether the same be known or unknown, anticipated, or unanticipated, resulting from or arising out of the use of said equipment.
TITAN MAKES NO WARRANTY WHATSOEVER WITH RESPECT TO THE EQUIPMENT, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, WHETHER EXPRESS OR IMPLIED BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OF TRADE OR OTHERWISE. BUYER ASSUMES ALL LIABILITY IN USE OF THE EQUIPMENT.
