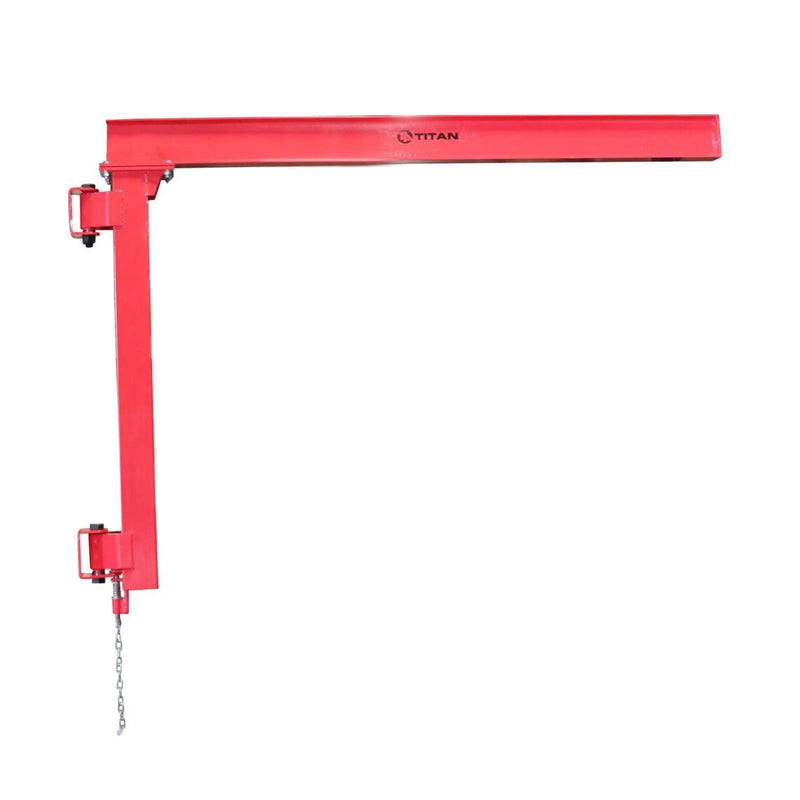

SCRATCH AND DENT - 1/2 Ton Wall Mounted Cantilever Crane - FINAL SALE
SCRATCH AND DENT - 1/2 Ton Wall Mounted Cantilever Crane - FINAL SALE
SKU: SKU: R840108
This is a carousel with product media thumbs. Use the thumbs to navigate, or jump to a slide.
Product Overview
* Scratch and Dent items are not eligible for returns or warranty claims. *
* Scratch and Dent Deal - item may have cosmetic damage and/or missing hardware *
The Titan Attachments™ Wall Mounted Jib Boom is perfect for helping with maneuvering large material with low ceiling clearance.Details
- The overall height of the Titan Attachments Wall Mounted Steel Cantilever Jib Boom Crane is 69.5” from the bottom of the locking pin to the top of the I-Beam, making it perfect for locations where low ceiling height is a concern. The 1/2 Ton Capacity of the Wall Mounted Jib allows you to maneuver large items safely and effectively while working in bays, factories, shops and along walls. This is an economical alternative to overhead cranes and monorail systems. The cantilever style jib boom crane comes equipped with 2 heavy duty mounting brackets to allow you for easy installation to vertical wall members. The full 180° rotation allows the jib boom to be used in most applications and has 3 locking positions that can be engaged with the included spring pin. Simply pull the chain attached to the spring pin to disengage the pin to allow for rotation. The I-Beam measures 3.5” wide, 6.5” high, 88” long and has a thickness of 3/8 inches. The usable length of the I-Beam is 80”.
- HEAVY DUTY DESIGN: The wall mounted jib boom crane is constructed with heavy duty structural steel. The I-Beam has 3/8” thick steel, with a capacity of 1/2 Ton. The wall mounted brackets will also be constructed with 3/8” steel. The entire wall mounted jib boom crane is powder coated to prevent rust and corrosion.
- PERFECT FOR LOW CEILINGS: The overall height of the wall mounted jib boom is 69.5”. This makes the crane ideal for areas that have a concern for low ceilings or headroom.
- 180 DEGREE ROTATION: Once the jib boom is mounted to the wall, the brackets contain 3 locking positions. Allow you to rotate the I-Beam 180 degrees to move the large, heavy material to the ideal location.
- SAVE TIME AND MONEY: The wall mounted jib crane allows workers to safely and effectively lift and maneuver large heavy items within their work area. This jib boom crane is a cost effective alternative to expensive overhead cranes and monorail systems allowing you to save time and money with its easy installation.
- DIMENSIONS: The overall length of the entire jib boom is 92.5” from the wall, with a usable length of 80” on the I-Beam. The height will be 69.5” from the bottom of the locking pin to the top of the I-Beam. The vertical post measures 4.75” x 4.75” and the I-Beam is 3.5” x 6.5”.
- 1/2 Ton Capacity Wall Mounted Jib Boom Crane.
- Cost Effective Alternative to Overhead Cranes.
- Compact Height Design Ideal For Low Ceilings.
- 180 Degree Rotation.
- 3 Locking Positions, 0°, 90°, and 180°
- Wall Mounting Brackets Included.
- *Hoist and Trolley Sold Separately.
- SPECIFICATIONS:
- Weight: 220 LB
- Capacity: 1,000 LB
- Overall Height: 69.5”
- Usable I-Beam Length: 80”
- Bracket Depth: 6”
- I-Beam HxW: 6.5” x 3.5”
- Wall Bracket Hole Size: 1/2"
- Wall Bracket Hole Spacing (Center to Center): 2” x 3.5”
- *NOTE: Customer must ensure proper installation and floor/wall strength is adequate to support the crane usage.
