Pro Series PTO Stump Grinder
Pro Series PTO Stump Grinder
SKU: SKU: 191382
This is a carousel with product media. Use Next and Previous buttons to navigate, or jump to a slide.
This is a carousel with product media thumbs. Use the thumbs to navigate, or jump to a slide.
Product Overview

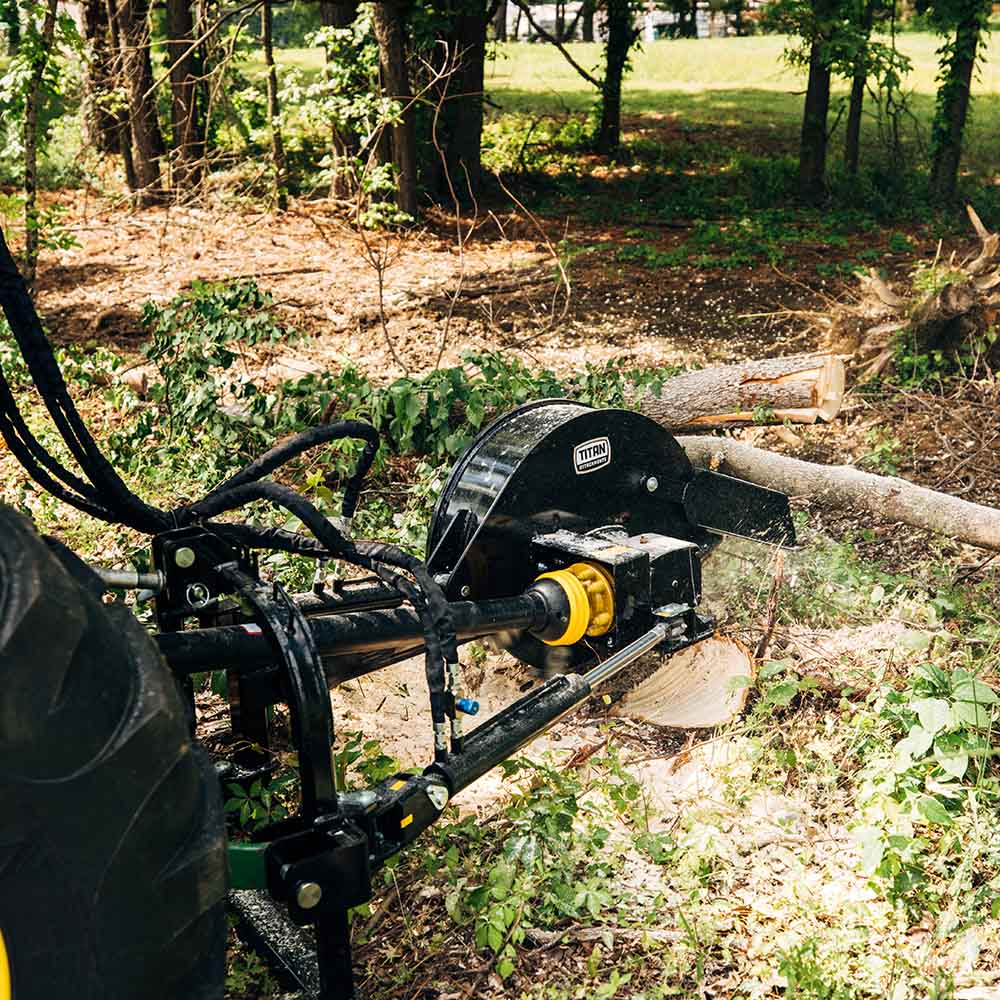

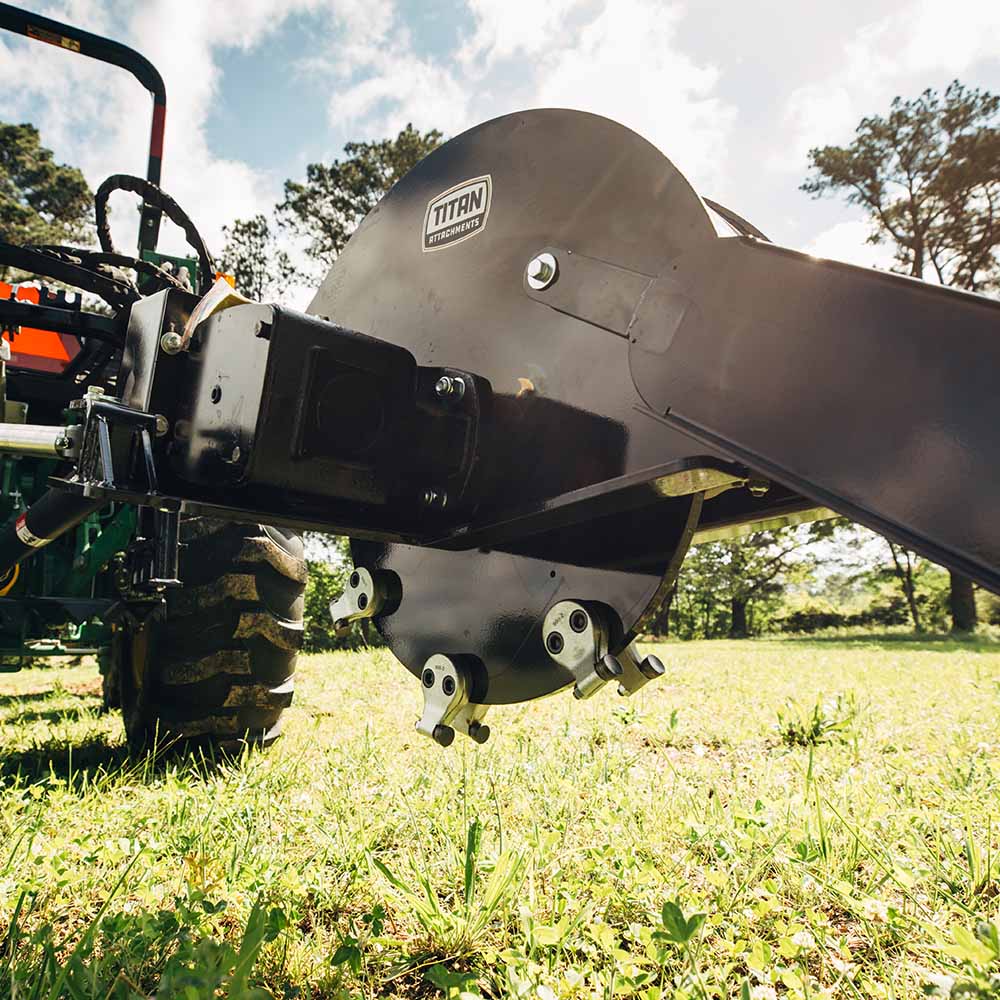

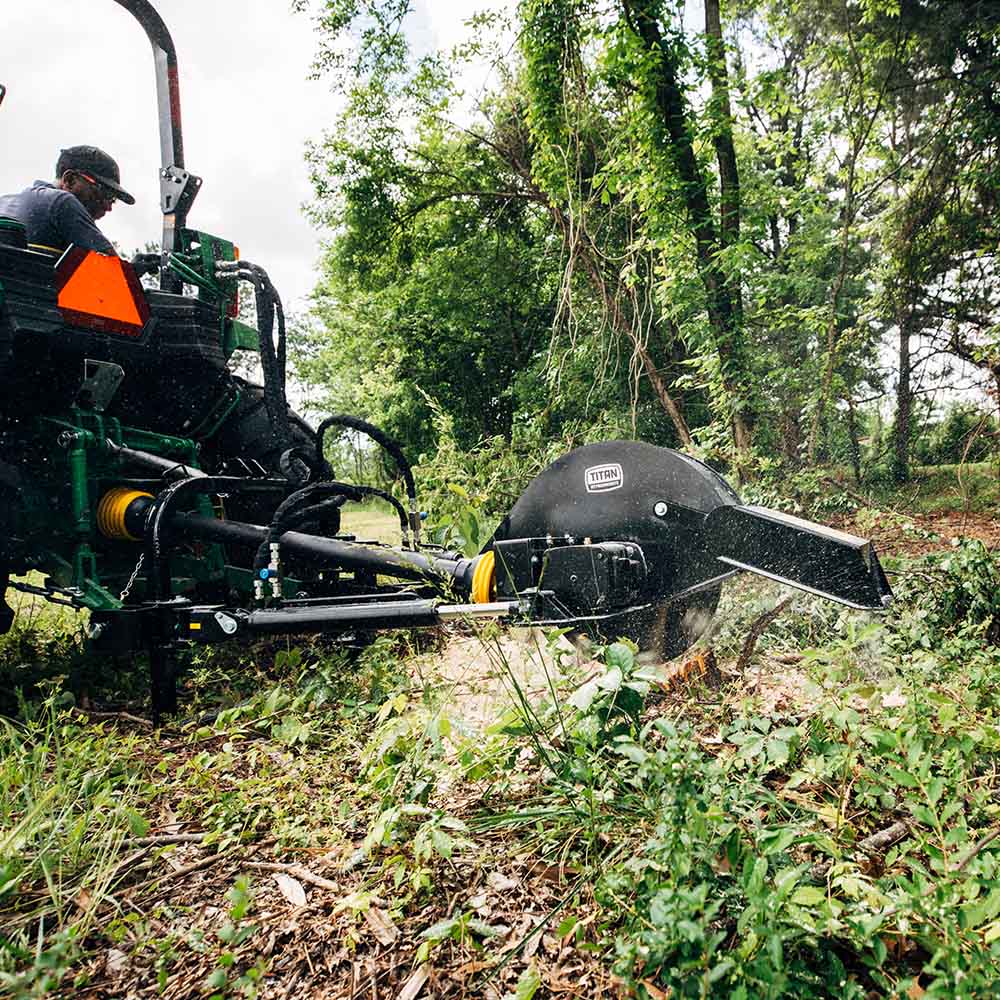

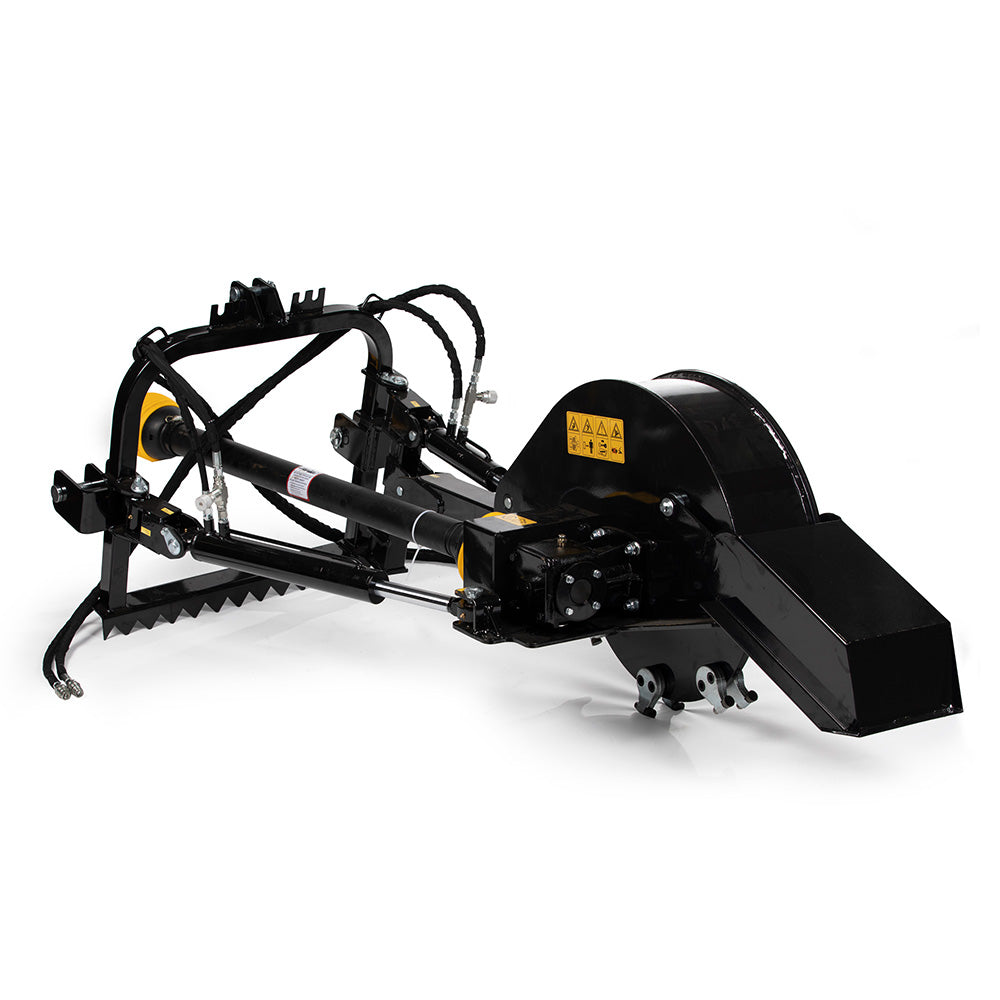

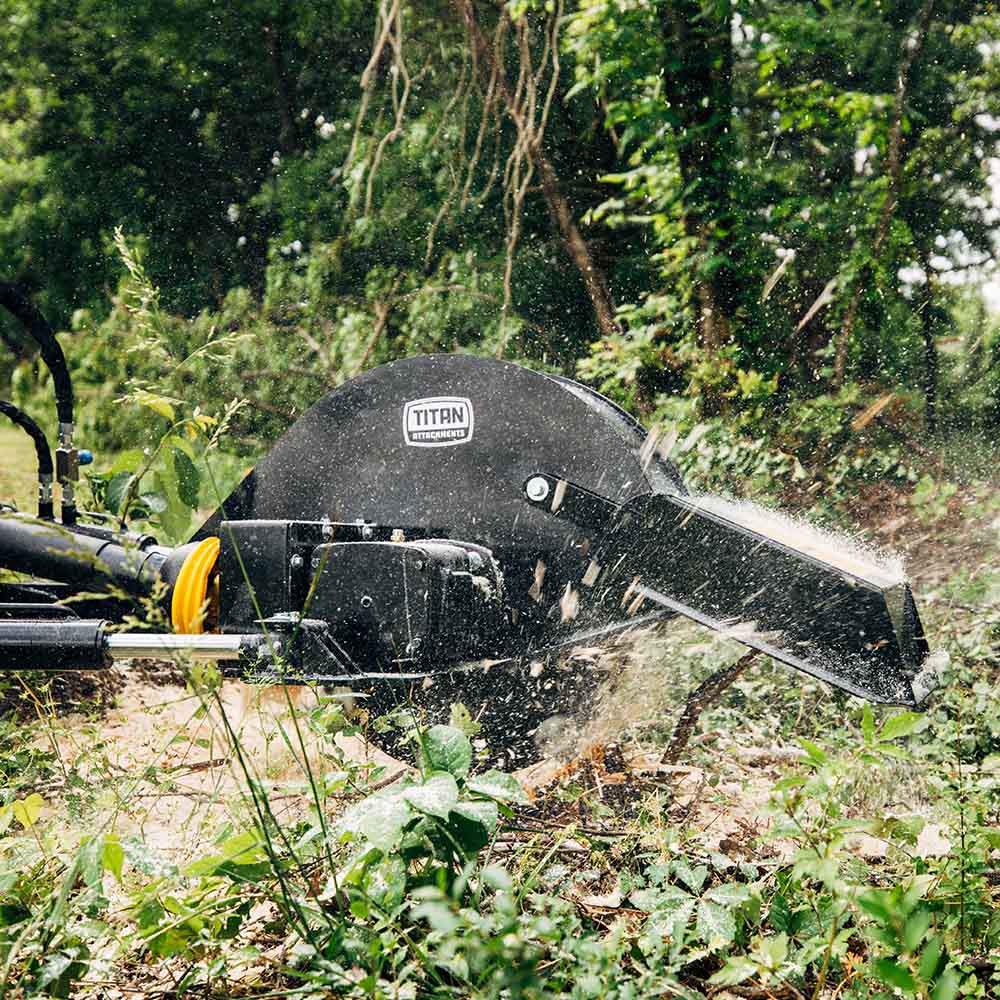

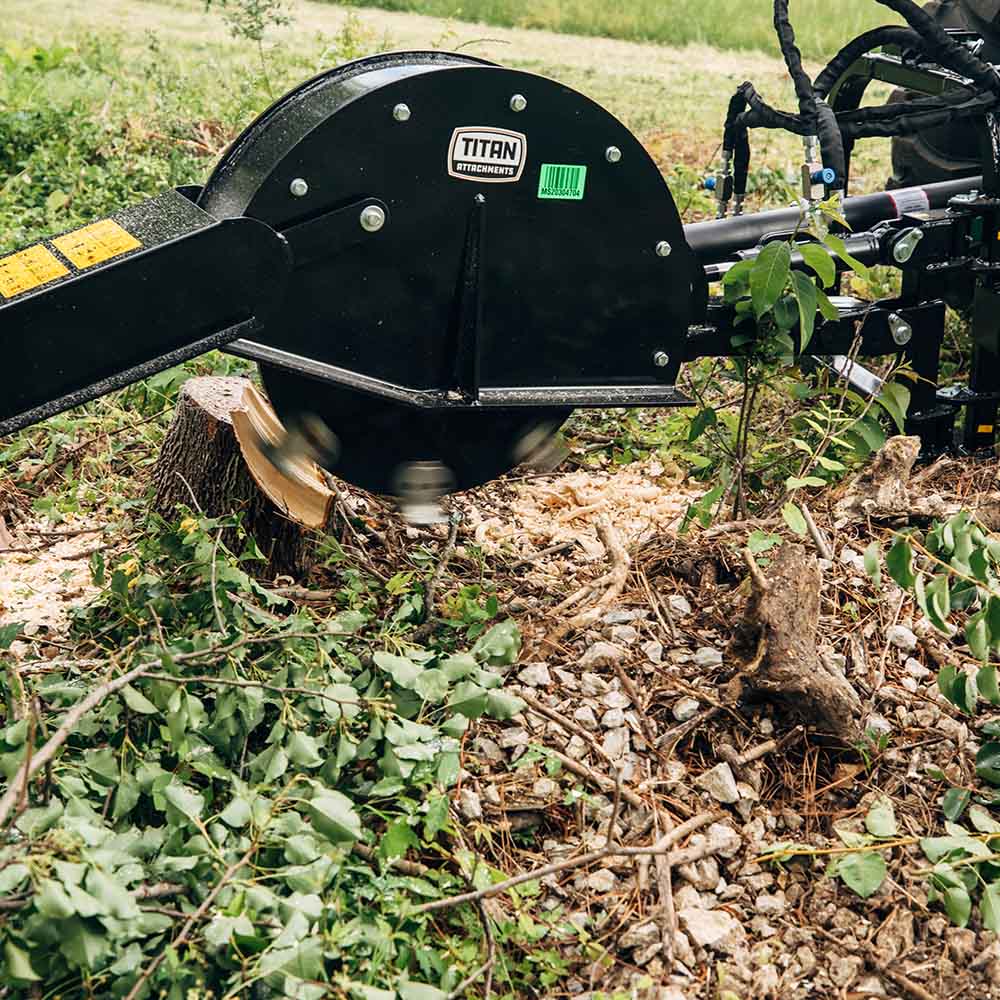

The Stump Grinder, designed with a durable cutting wheel measuring 24" in diameter, features 16 carbide face shear blades forged from steel. These long-lasting heat-treated teeth are abrasion-resistance and can rotate three times over before needing to be replaced. The grinder is engineered with a PTO Shaft that connects directly to your tractor's 3 Point hitch system. It includes dual hydraulic cylinders, giving the operator maximum control of the cutting wheel. The stump grinder provides a swing range up to 20-degrees with a cutting depth of 12" below ground. For your convenience, we have included greaseable pins, bushings, hoses, and couplers. The stump grinder is a great tool to use for landscaping, as it provides you a superior and more efficient way to shear away unwanted tree debris.
NOTE: Requires two hydraulic auxiliary ports to operate both hydraulic cylinders for total angle control. Additionally, when you order this product, we will need your phone number for the trucking company to schedule delivery.
Specifications

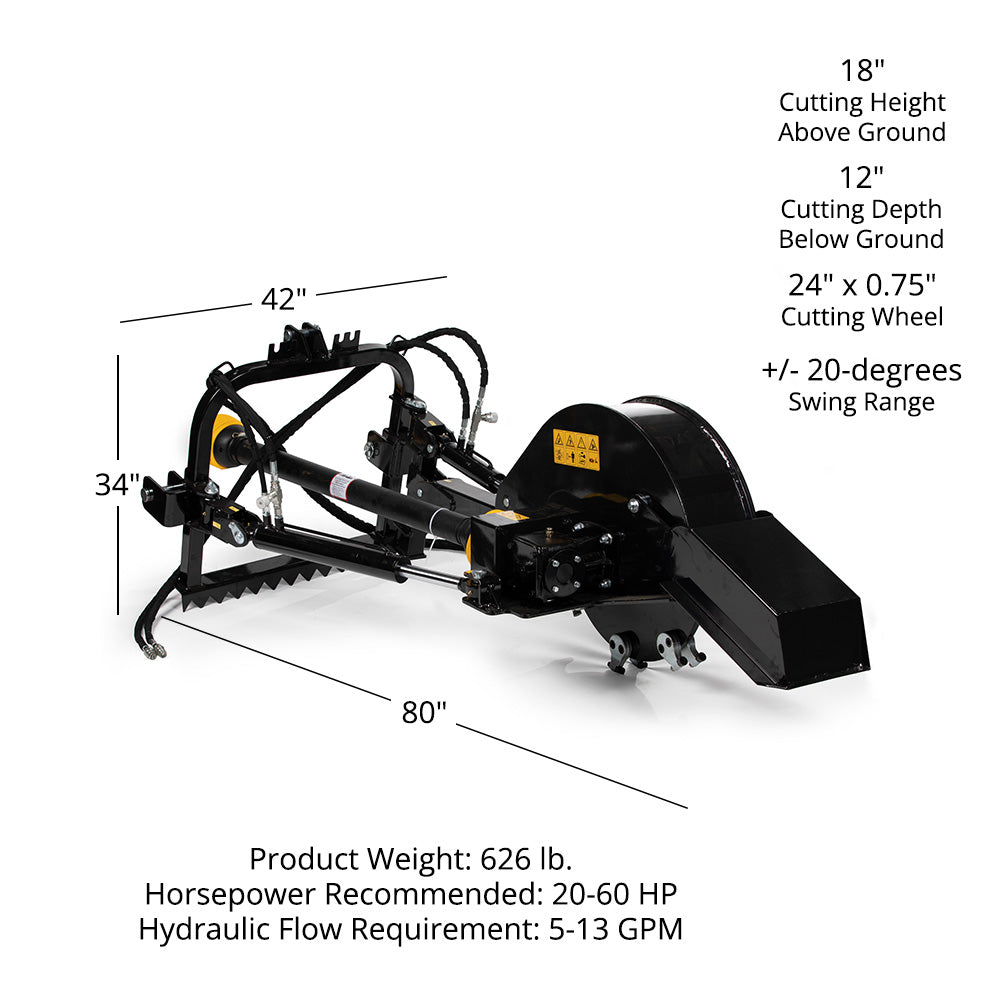

Specifications
Overall Height
34-in.Overall Length
80-in.Overall Width
42-in.Height Above Ground
18-in.Below Ground Depth
12-in.Swing Range
+/- 20-degreesNumber of Cutting Teeth
16Cutting Wheel Diameter
24-in.Cutting Wheel Width
0.75-in.Cutting Wheel Speed
950 RPMHorsepower Recommended
20-60 HPHydraulic Flow Requirement
5-13 GPMMaterial
Finish
Powder-Coated BlackMaterial
SteelWeight
Product Weight
626 lb.Details
- Pro Series PTO-driven stump grinder
- Fits Category 1 and 2 Tractors
- Studded stabilizer frame secures footing and reduces vibrations

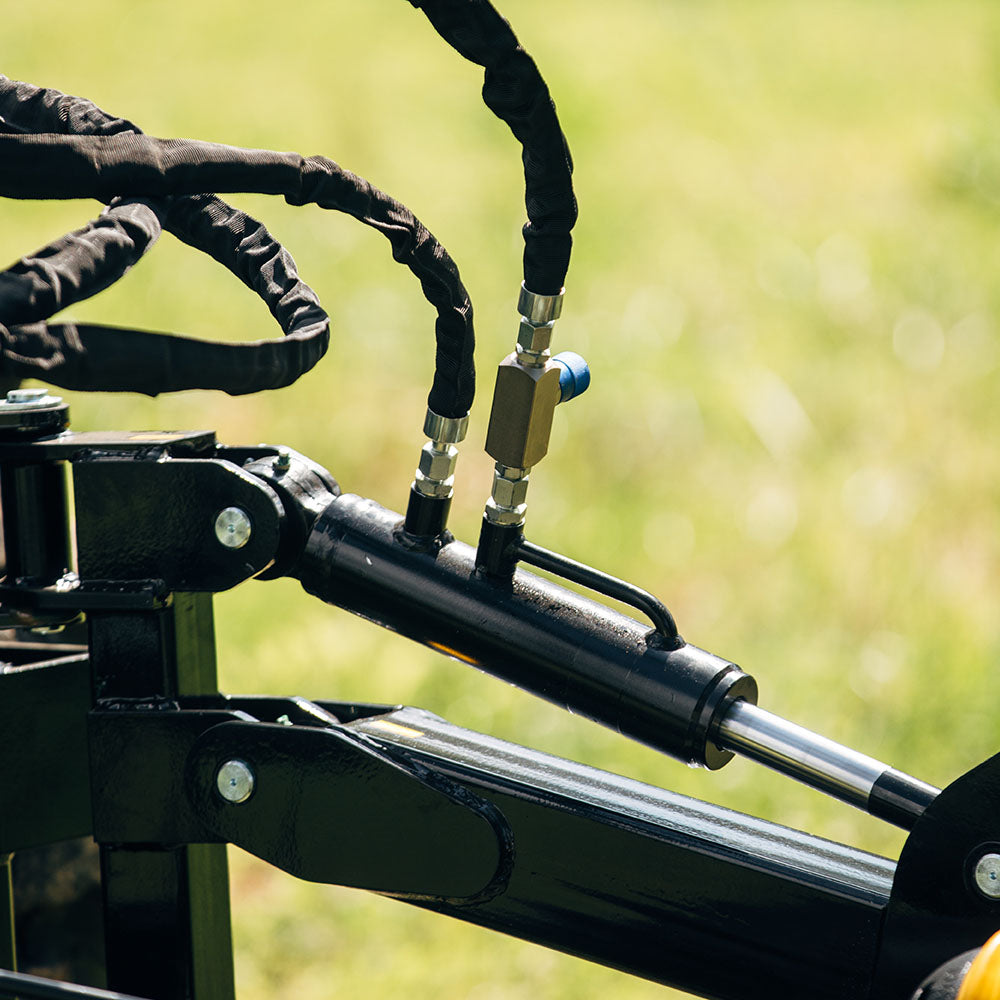

- Two cylinders for cutting arc and depth control
- Both cylinders have a flow control valve
- Cuts 12" below ground level (plus more in larger holes)

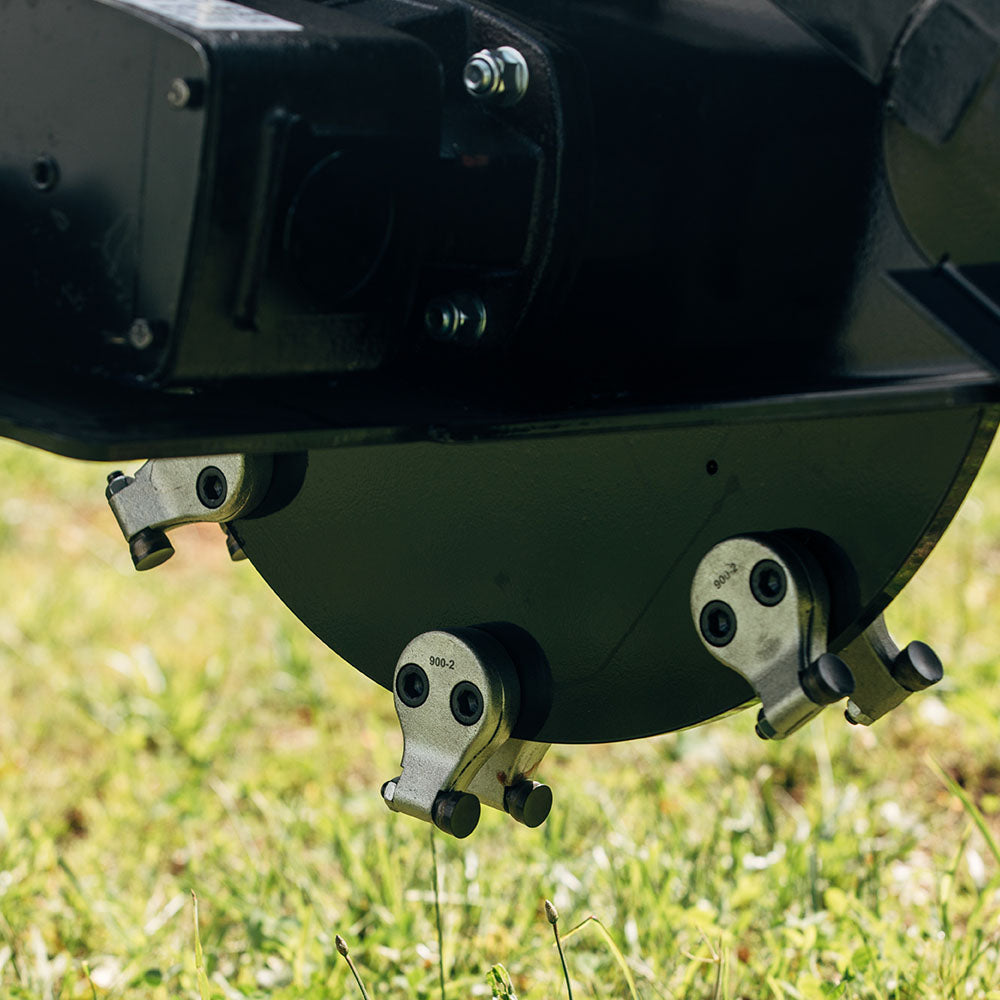

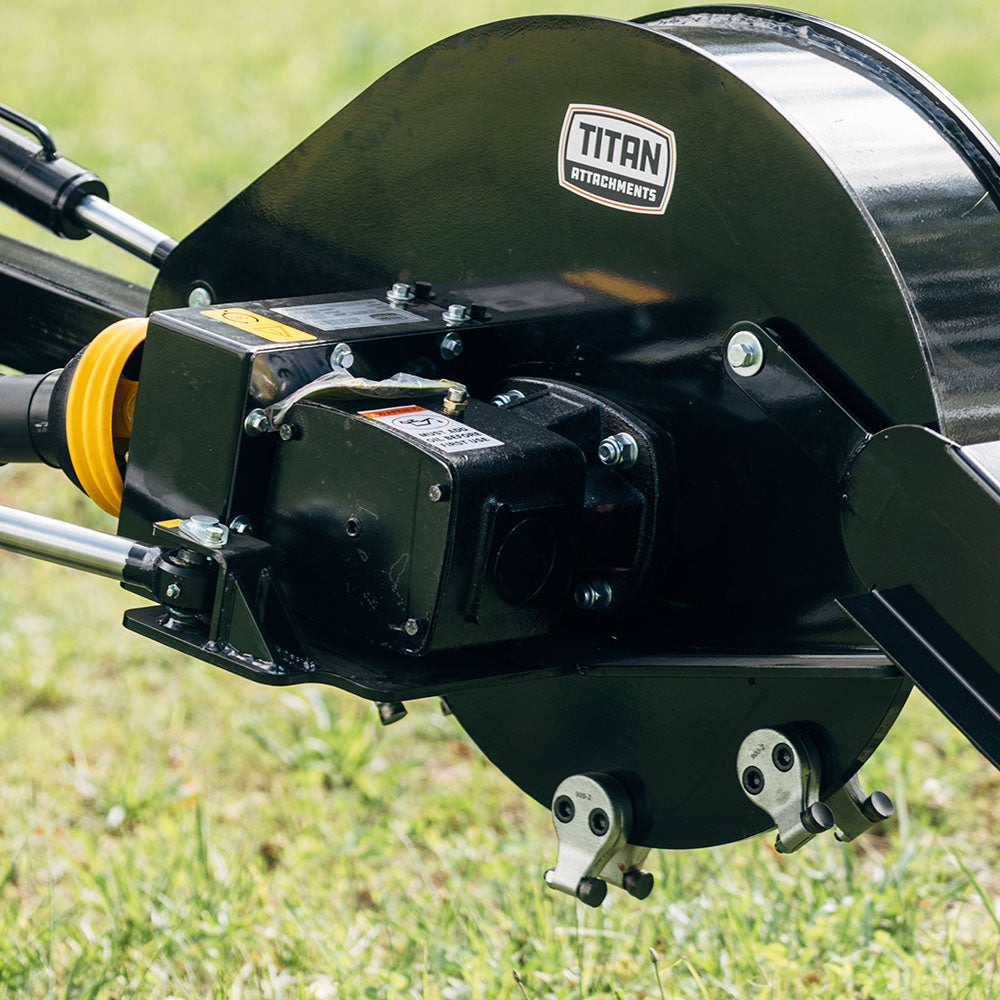

- Bolt-on carbide steel teeth

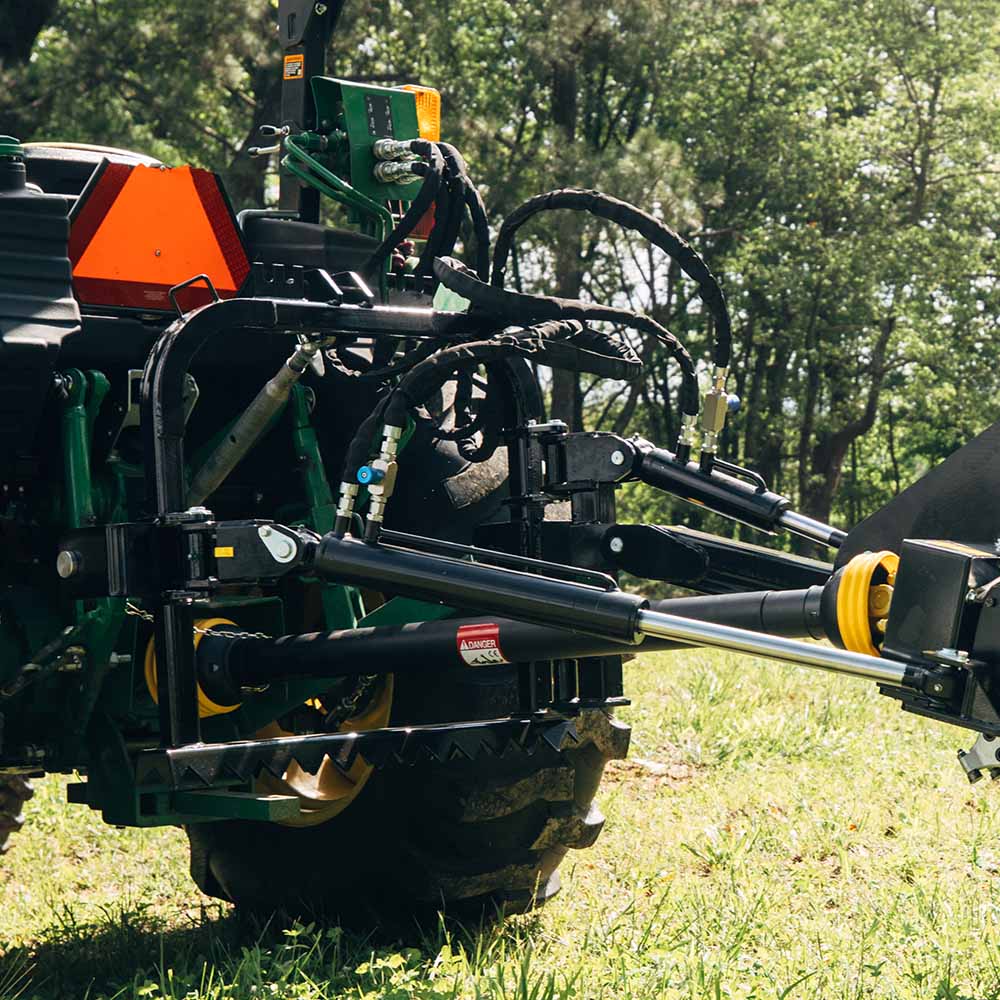

- Toothed seating bar

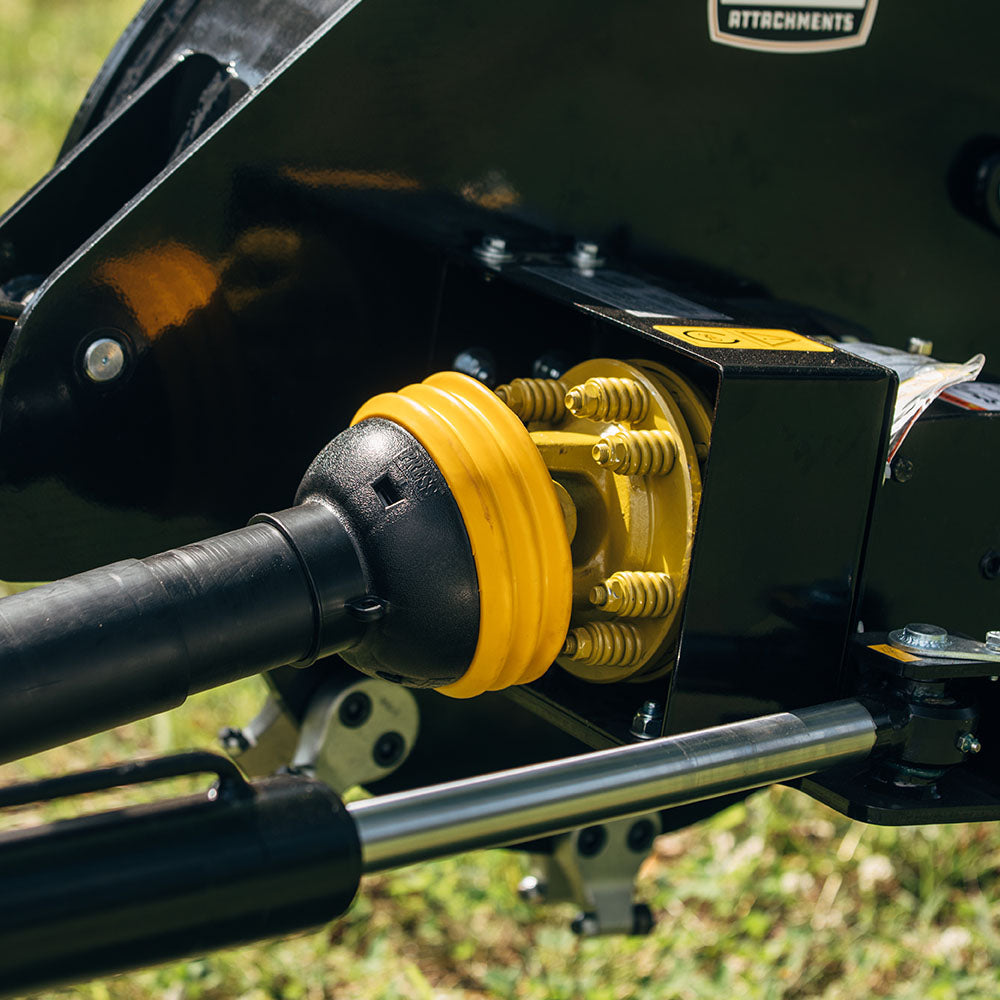

- PTO shaft with shear bolt
- 950 RPM cutting speed
- Includes a kickstand
REPLACEMENT PARTS:
Additional Info
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Disclaimer
This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any equipment, including this one, involves the potential risk of injury. You accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages, rights of action, or causes of action, present or future, whether the same be known or unknown, anticipated, or unanticipated, resulting from or arising out of the use of said equipment.
TITAN MAKES NO WARRANTY WHATSOEVER WITH RESPECT TO THE EQUIPMENT, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, WHETHER EXPRESS OR IMPLIED BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OF TRADE OR OTHERWISE. BUYER ASSUMES ALL LIABILITY IN USE OF THE EQUIPMENT.
