Move parts, pipe, or lumber with confidence using this Skid Steer Pallet Fork Grapple, equipped with fork blades in your choice of length.

Connection Type : Universal Skid Steer Quick Tach

Choose Optional Pallet Fork Blades. Forks and Frames May Ship Separately.: Frame + 48" Blades

Frame + 36" Blades Frame + 42" Blades Frame + 48" Blades Frame + 60" Blades Frame Only

Product variants

SKU: SKU: 138131

Availability:

In Stock

Fast & Free Shipping on Every Order

Handling fee applies to oversize items

1-Year warranty included

Extended coverage available with Mulberry

Buy Now, Pay Later

Flexible payment options available with Bread Pay™

View full details

Pallet Fork Grapple

Overview Specs Details Reviews

$1,649.96

$2,359.99 $1,649.96

30% off (Save $710.03)

$1,649.96

$2,359.99 $1,649.96

30% off (Save $710.03)

The Pallet Fork Grapple is an excellent landscaping tool, providing a more efficient way to move pipe, lumber, pallets, and other heavy objects. This unit connects to your skid steer loaders or tractor equipped with the SSQA or Universal Skid Steer Style Quick Tach System and includes greaseable pins, bushings, hoses, and couplers for your convenience.

Built for demanding jobs, the heavy-duty frame is rated for capacities up to 4,000 LB and is available with or without Class II pallet forks. A single 3,000 PSI hydraulic cylinder powers the integrated grapple, providing secure load retention for medium to tall materials during transport.

The grapple enhances stability by helping hold loads firmly in place, especially when traveling across uneven terrain or over obstacles. Its design allows the grapple to close below the forks for handling logs, pipe, and other long materials, while the wide opening accommodates bulky brush and debris for efficient property maintenance and cleanup.

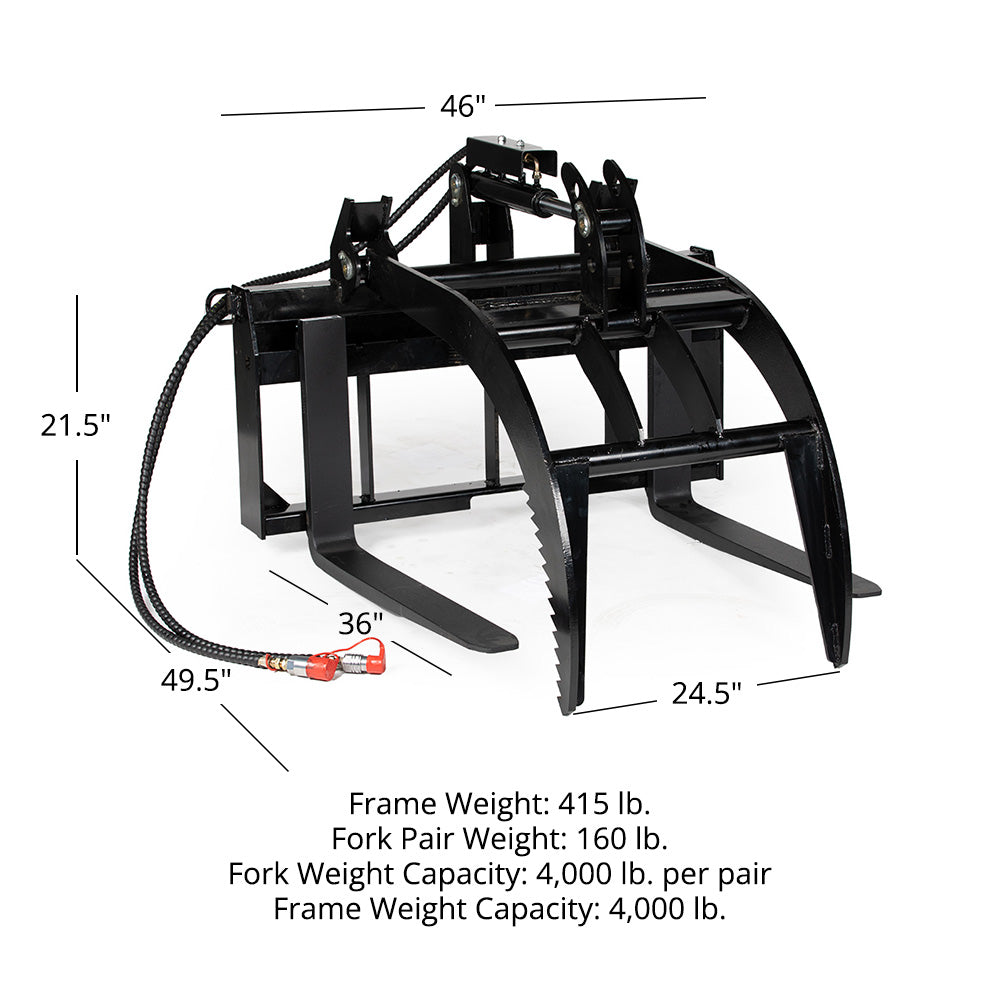

Specifications

Frame Height

21.5-in.

Frame Width

46-in.

Frame Depth

6-in.

Grapple Width

24.5-in.

Grapple Depth

49.5-in.

Serrated Teeth Length

17-in.

Serrated Teeth Thickness

0.5-in.

Upper to Lower Rail

16-in.

Fork Length

48-in.

Fork Width

4-in.

Fork Thickness

1.25-in.

Material

Finish

Powder-Coated Black

Material

Steel

Weight

Frame Weight Capacity

4,000 lb.

Fork Weight Capacity

4,000 lb. per pair

Fork Pair Weight

196 lb.

Frame Weight

415 lb.

Details

‍Universal Skid Steer Style Quick Tach System
Handles pipe, lumber, pallets, logs, and debris
3 adjustable grapple pin settings for versatility

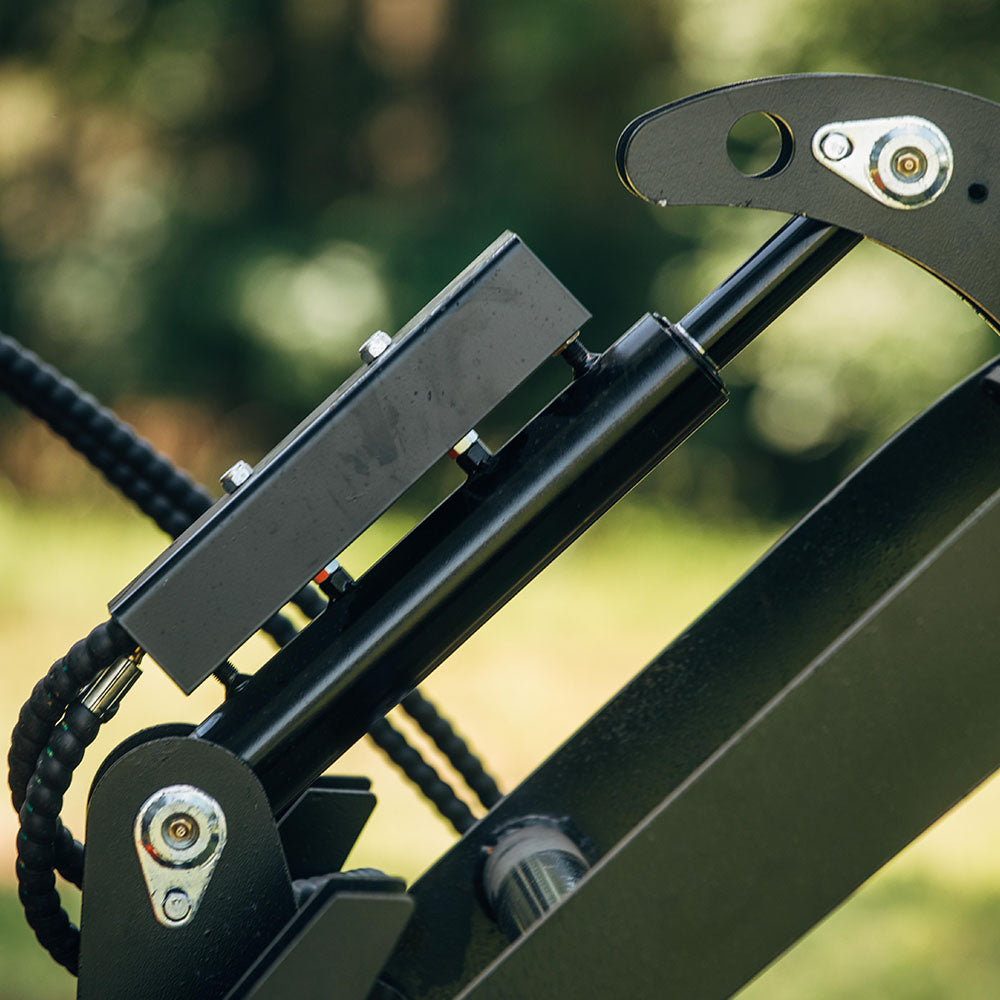

Single 3,000 PSI cylinder with protective guard
Cylinder backstops prevent overextension
Greaseable pins and bushings for durability
Includes hoses and flat-face couplers
D-ring keeps hoses neatly routed
Accepts Class II pallet fork blades (sold separately)
Some assembly required
