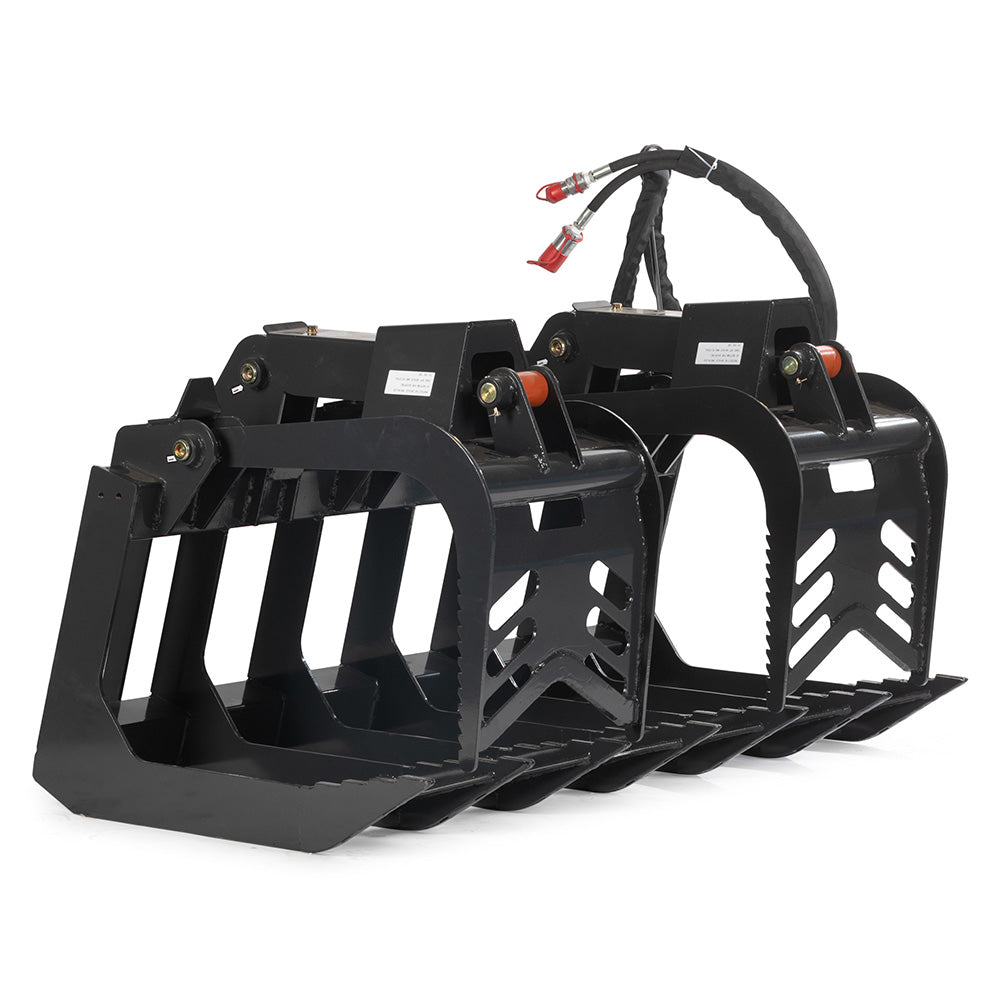

60" Grade 50 Standard Series Skid Steer Root Grapple Bucket
60" Grade 50 Standard Series Skid Steer Root Grapple Bucket
SKU: SKU: 112316
This is a carousel with product media. Use Next and Previous buttons to navigate, or jump to a slide.
This is a carousel with product media thumbs. Use the thumbs to navigate, or jump to a slide.
Product Overview

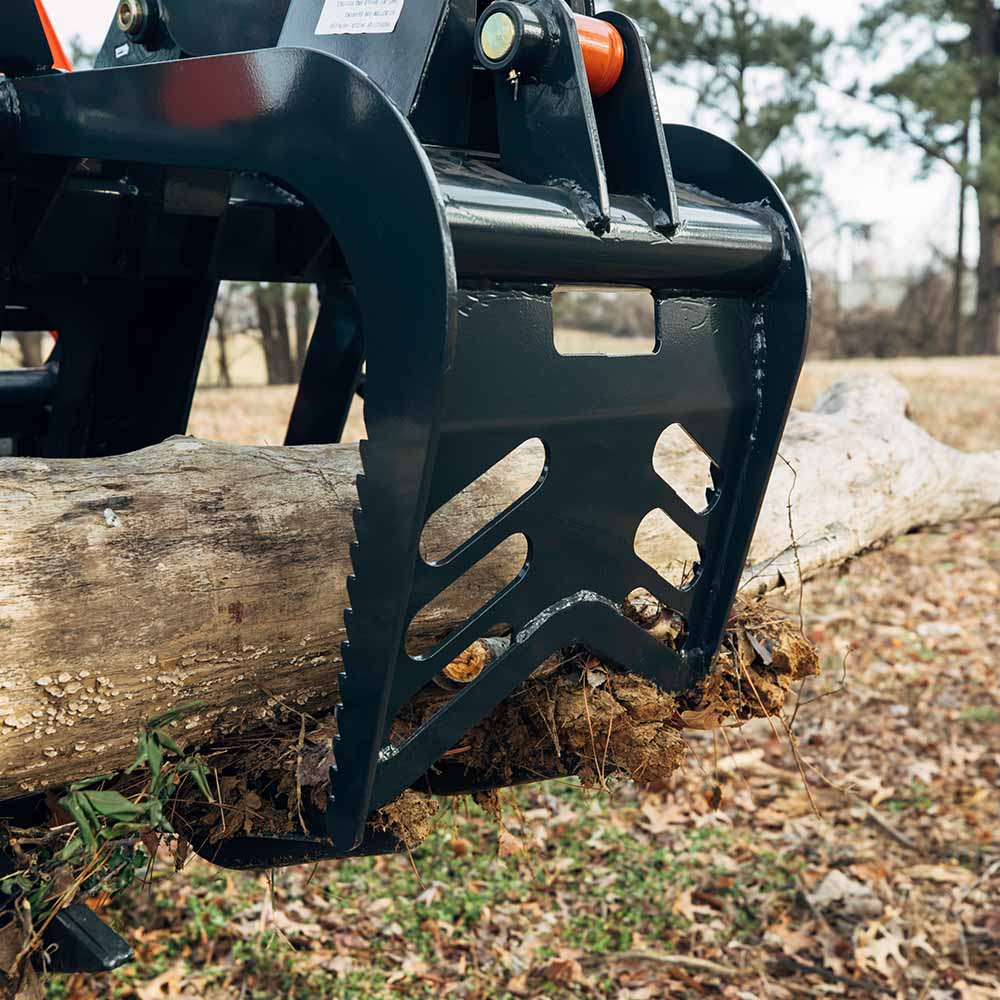

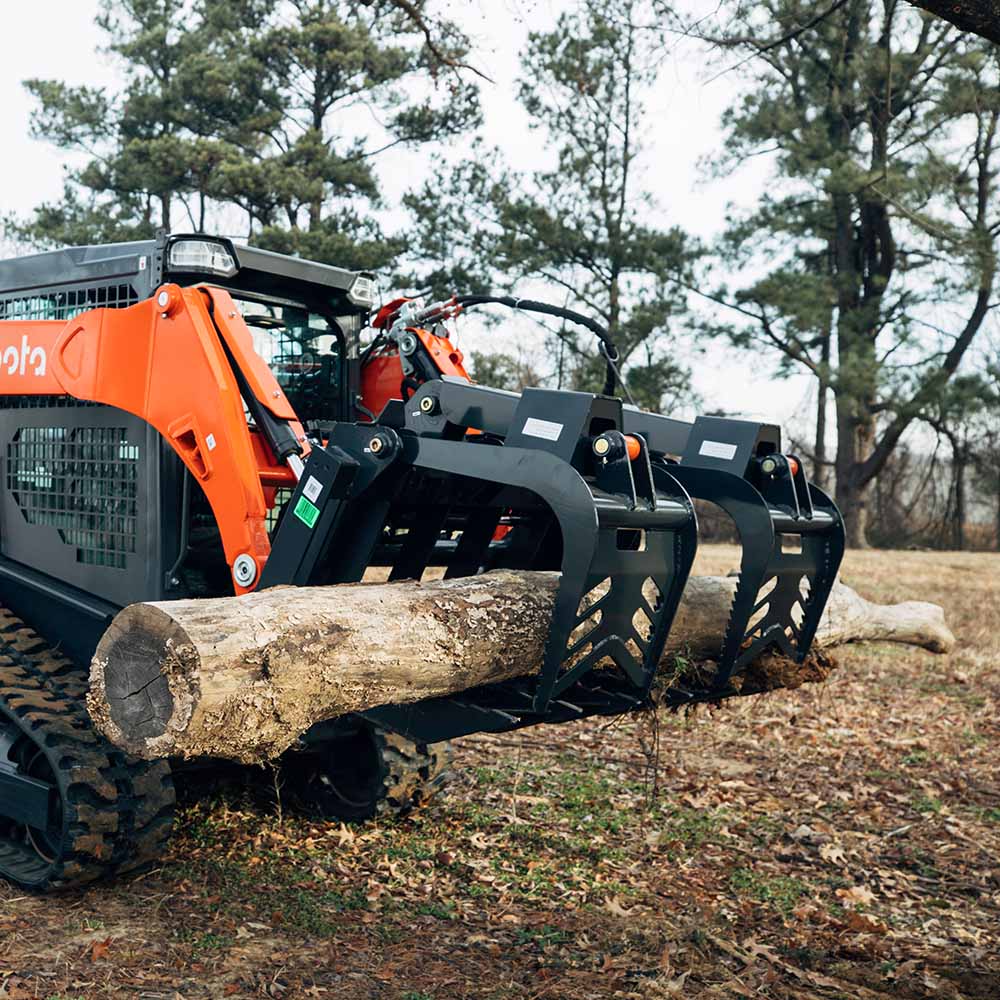

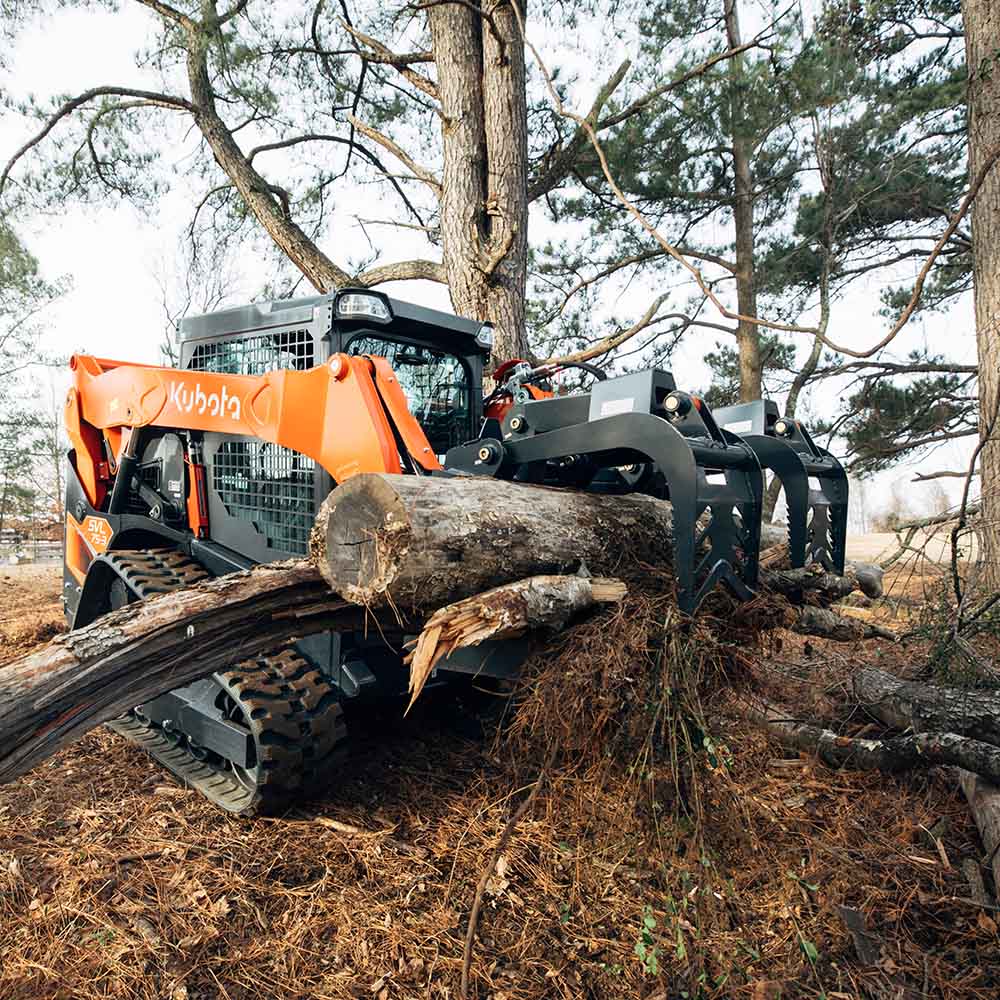

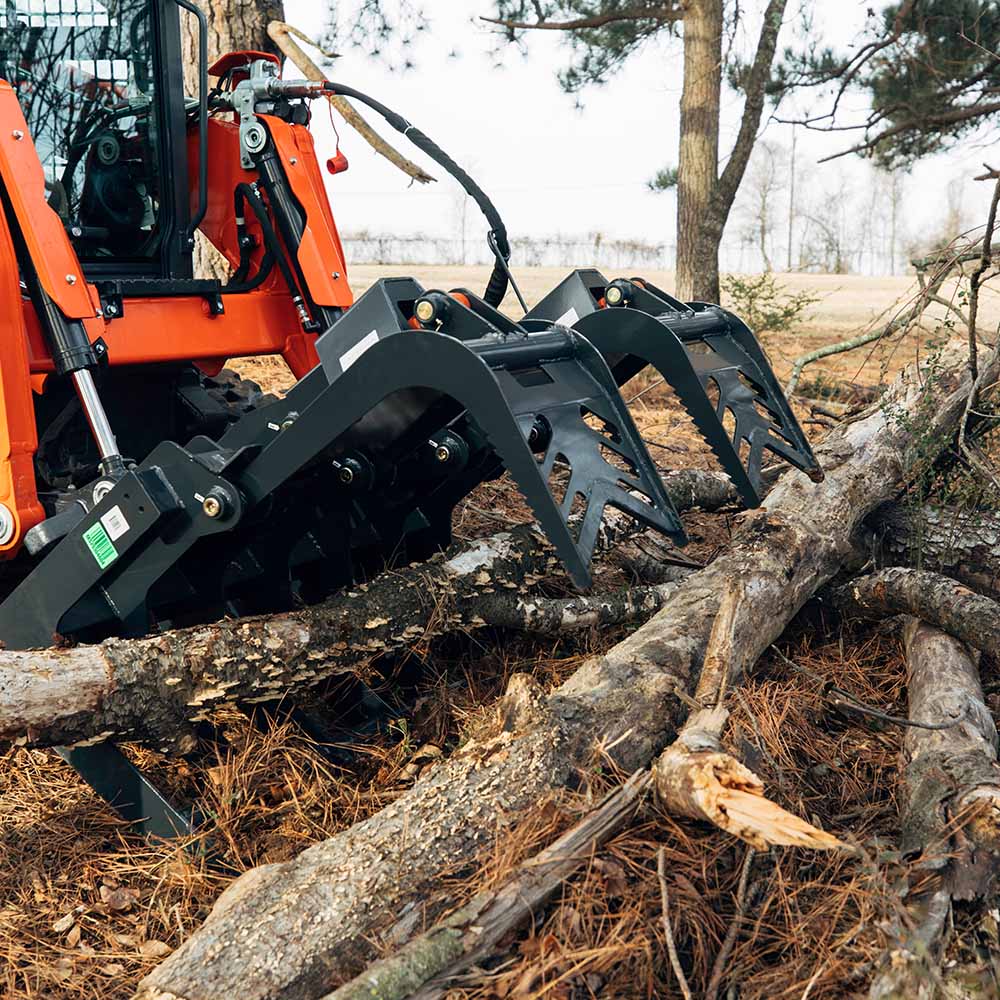

This root grapple is designed for medium-duty tasks, featuring a serrated leading edge that provides strong grip and excellent soil penetration for pulling up roots. Powered by twin 3,000 PSI hydraulic cylinders, it’s perfect for handling materials like debris, tree branches, and logs. The grapple also includes 90-degree fittings and a cylinder cover for added durability. Built with tough Grade 50 steel, it boasts reinforced 10mm tines welded to the frame to prevent bending, along with greaseable pins, bushings, hoses, and couplers for easy maintenance.
This Standard Series model comes with a universal skid steer connection and is perfect for handling up to 2,500 LB with ease. It’s a great tool for your everyday farm tasks, but it's not meant for heavy-duty work like digging or pulling out trees, rocks, or large roots.
PLEASE NOTE: Phone number is required to schedule delivery.

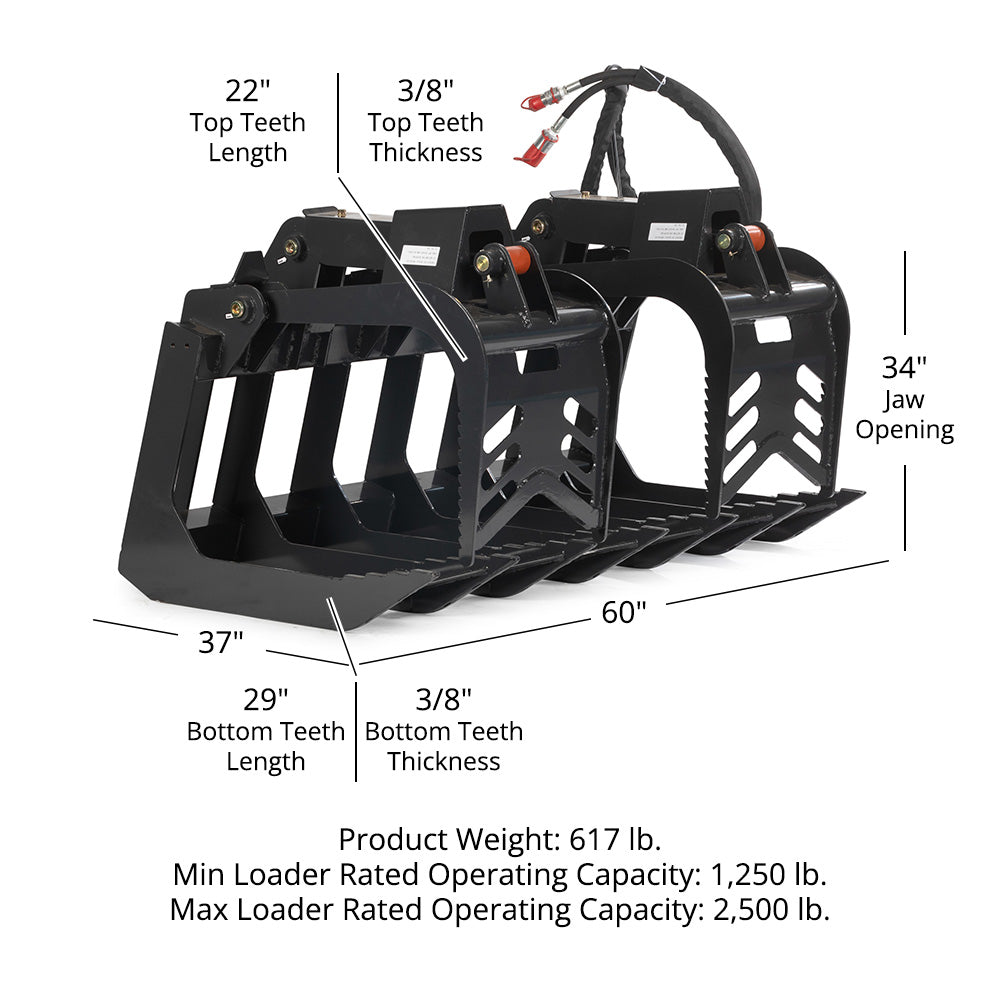

Specifications
Specifications
Jaw Opening
34-in.Overall Width
60-in.Overall Depth
37-in.Top Teeth Length
22-in.Bottom Teeth Length
29-in.Spacing Between Bottom Teeth
9-in.Top Teeth Thickness
10mm | 3/8-in.Bottom Teeth Thickness
10mm | 3/8-in.Bottom Teeth Reinforcement Plate Thickness
20mm | 3/4-in.Side Thickness
10mm | 3/8-in.Material
Finish
Powder-Coated CharcoalMaterial
50 Grade SteelWeight
Min Loader Rated Operating Capacity
1,250 lb.Max Loader Rated Operating Capacity
2,500 lb.Product Weight
617 lb.Details
- Standard Series Grade 50 Root Grapple Bucket
- Universal SSQA connection
- Dual jaw design

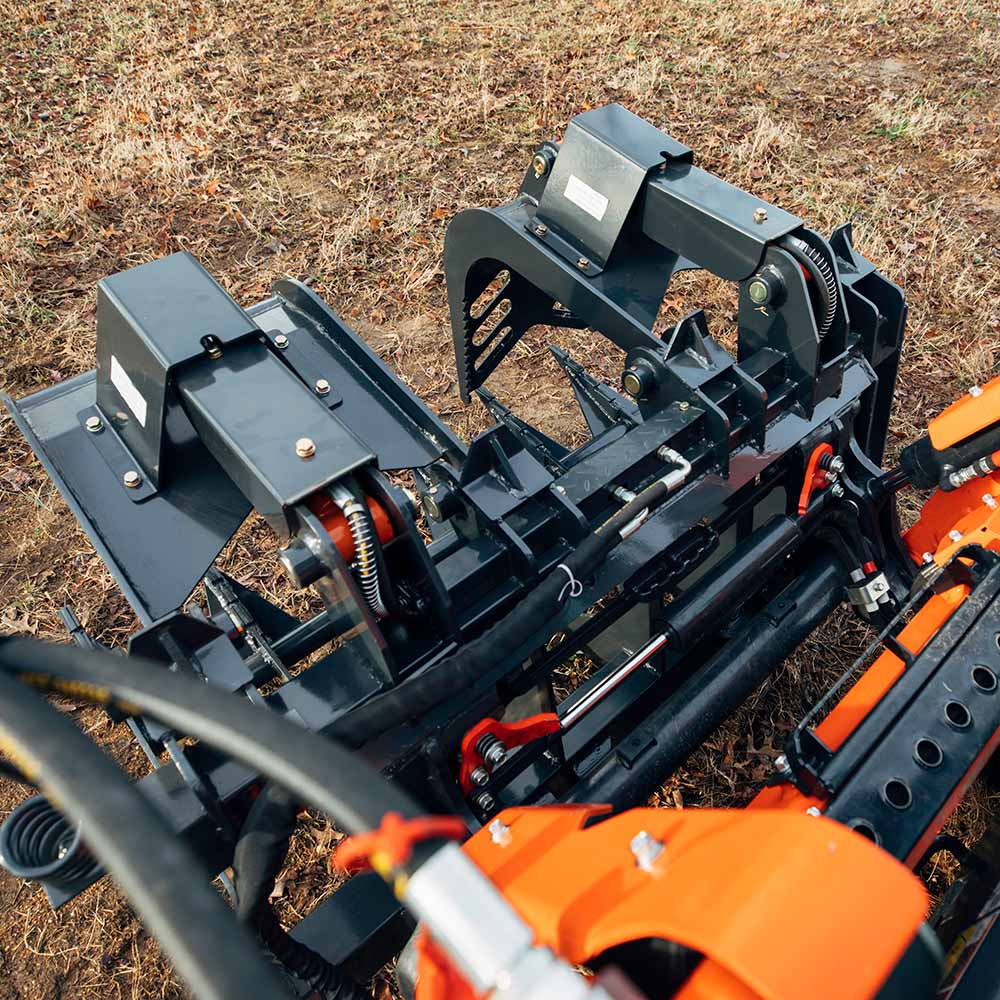

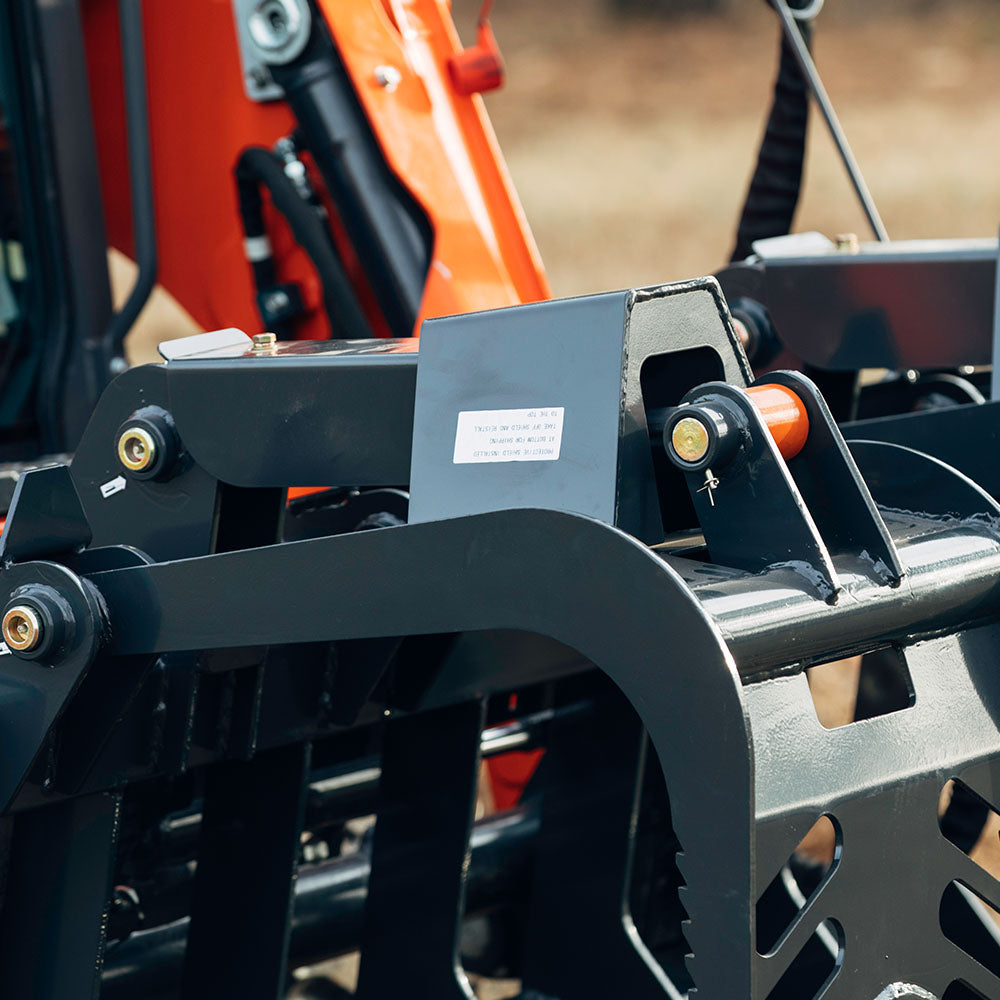

- Hydraulic cylinder covers
- Hydraulic hose protection
- 90-degree fittings

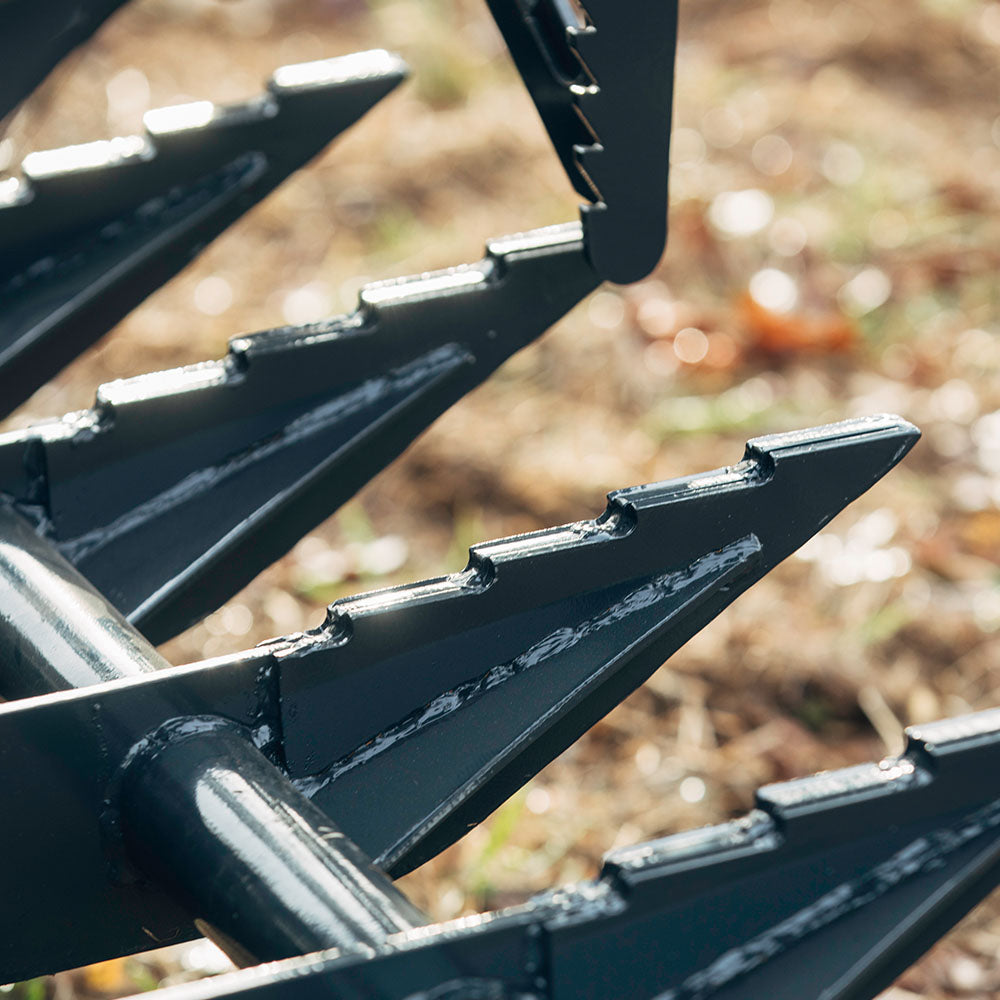

- Reinforced tine tips

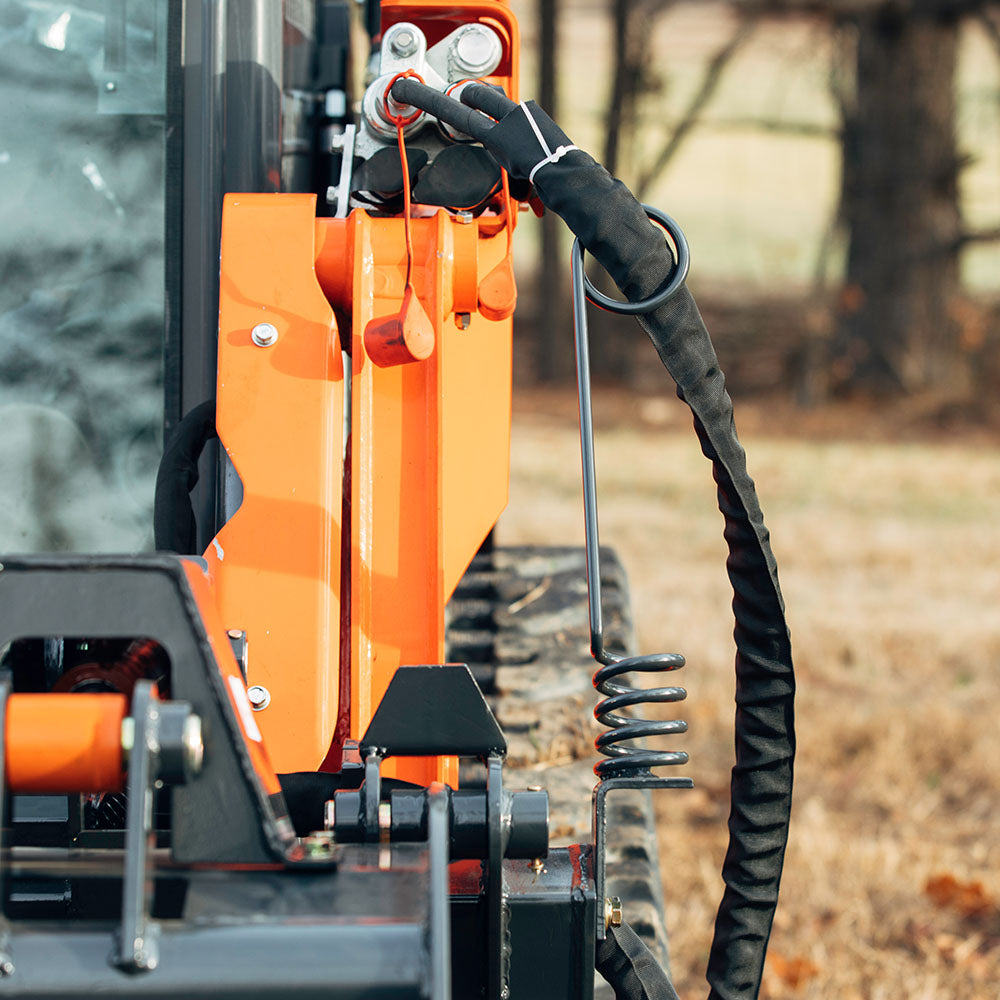

- Hose hanger
- Hoses and flat-faced couplers included
