72" Global Euro HD Root Grapple Rake
72" Global Euro HD Root Grapple Rake
SKU: SKU: 113106
This is a carousel with product media. Use Next and Previous buttons to navigate, or jump to a slide.
This is a carousel with product media thumbs. Use the thumbs to navigate, or jump to a slide.
Product Overview

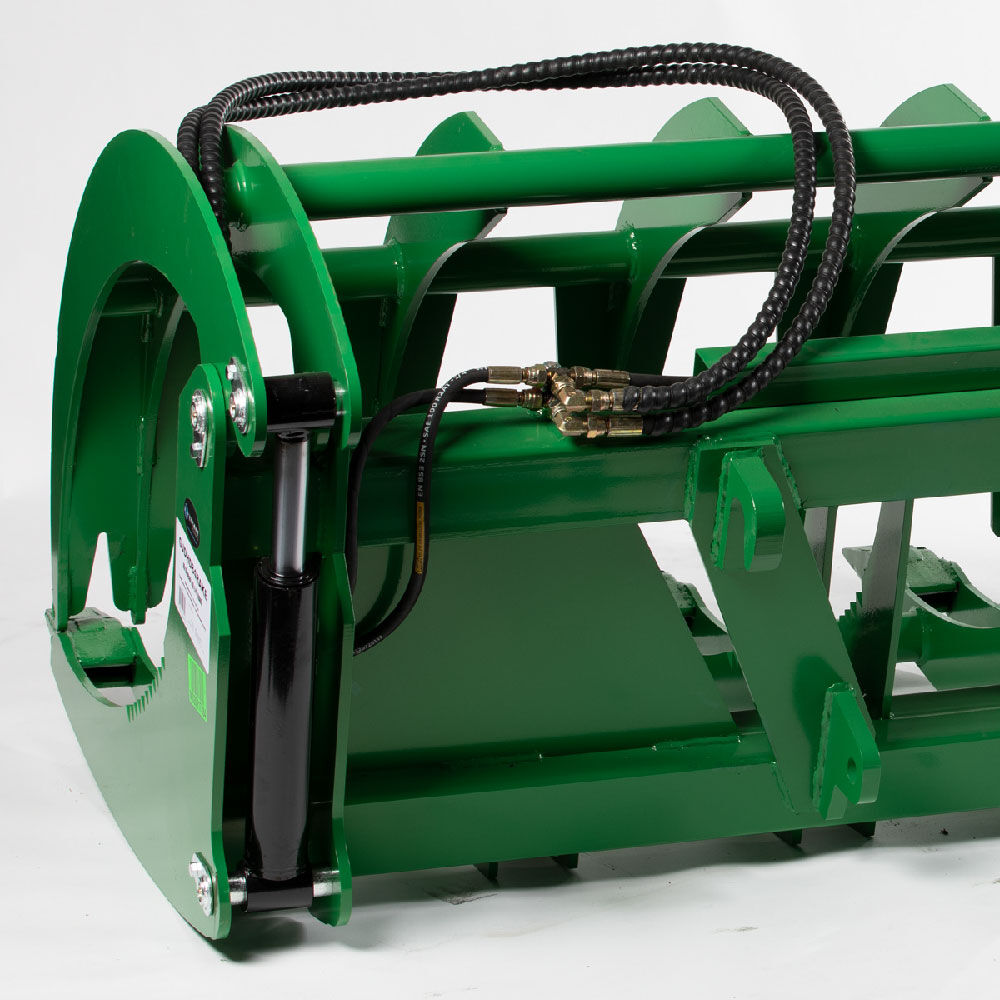

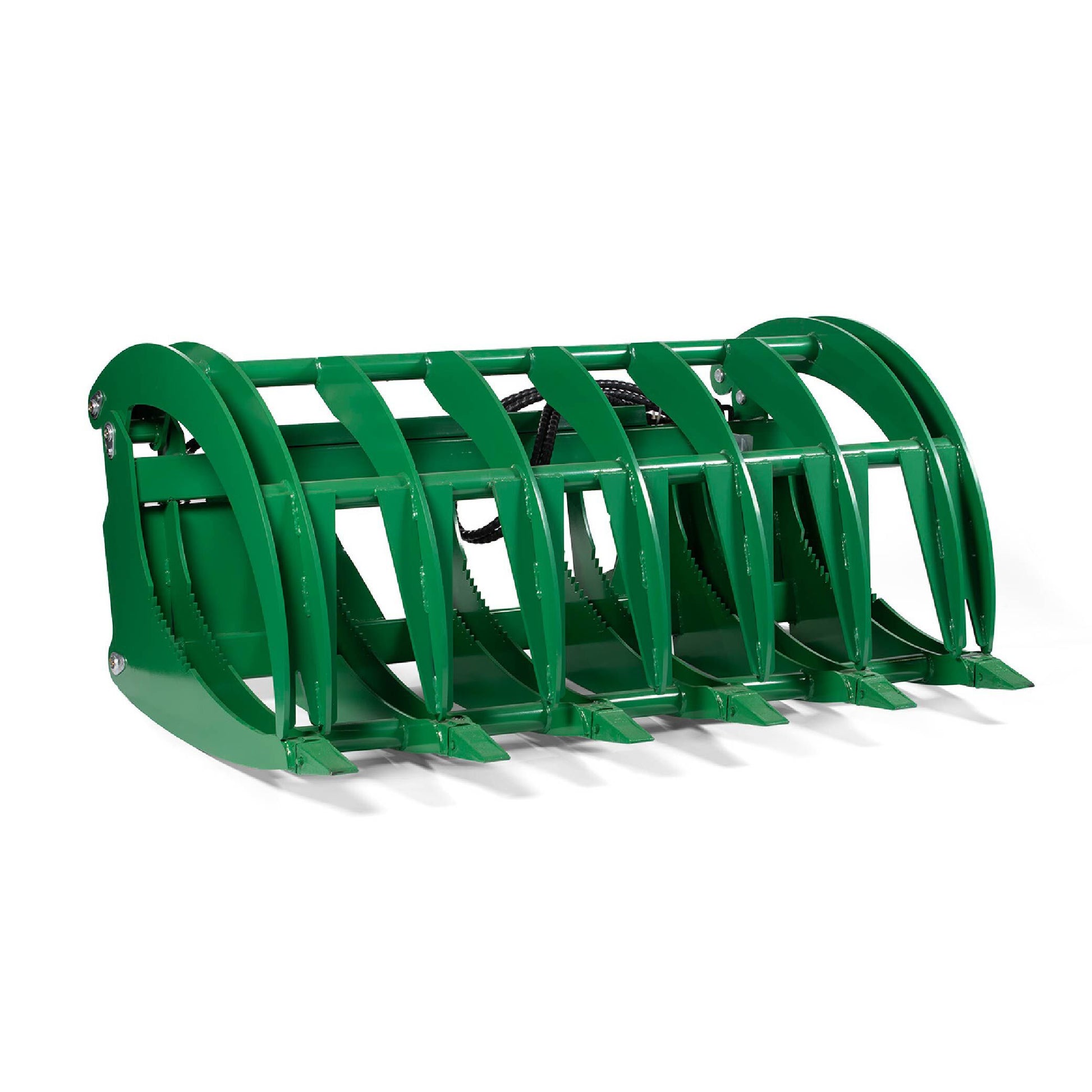

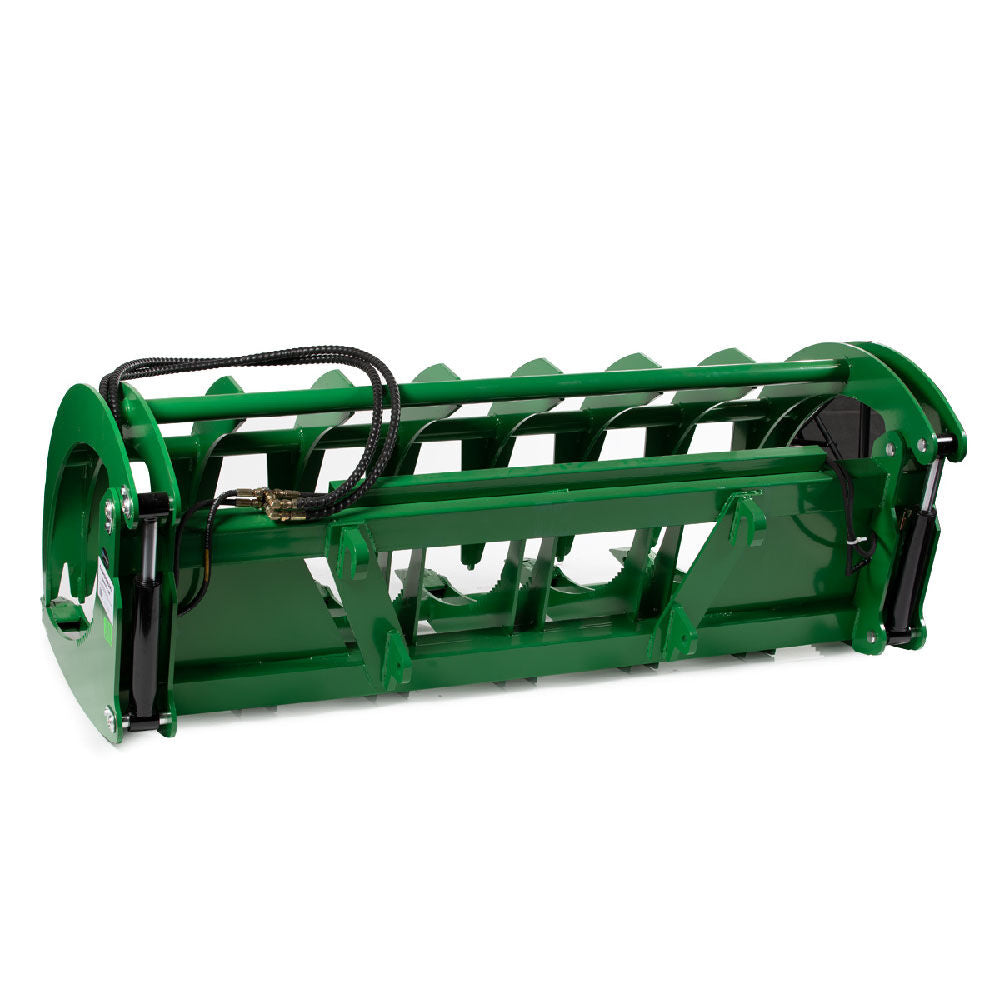

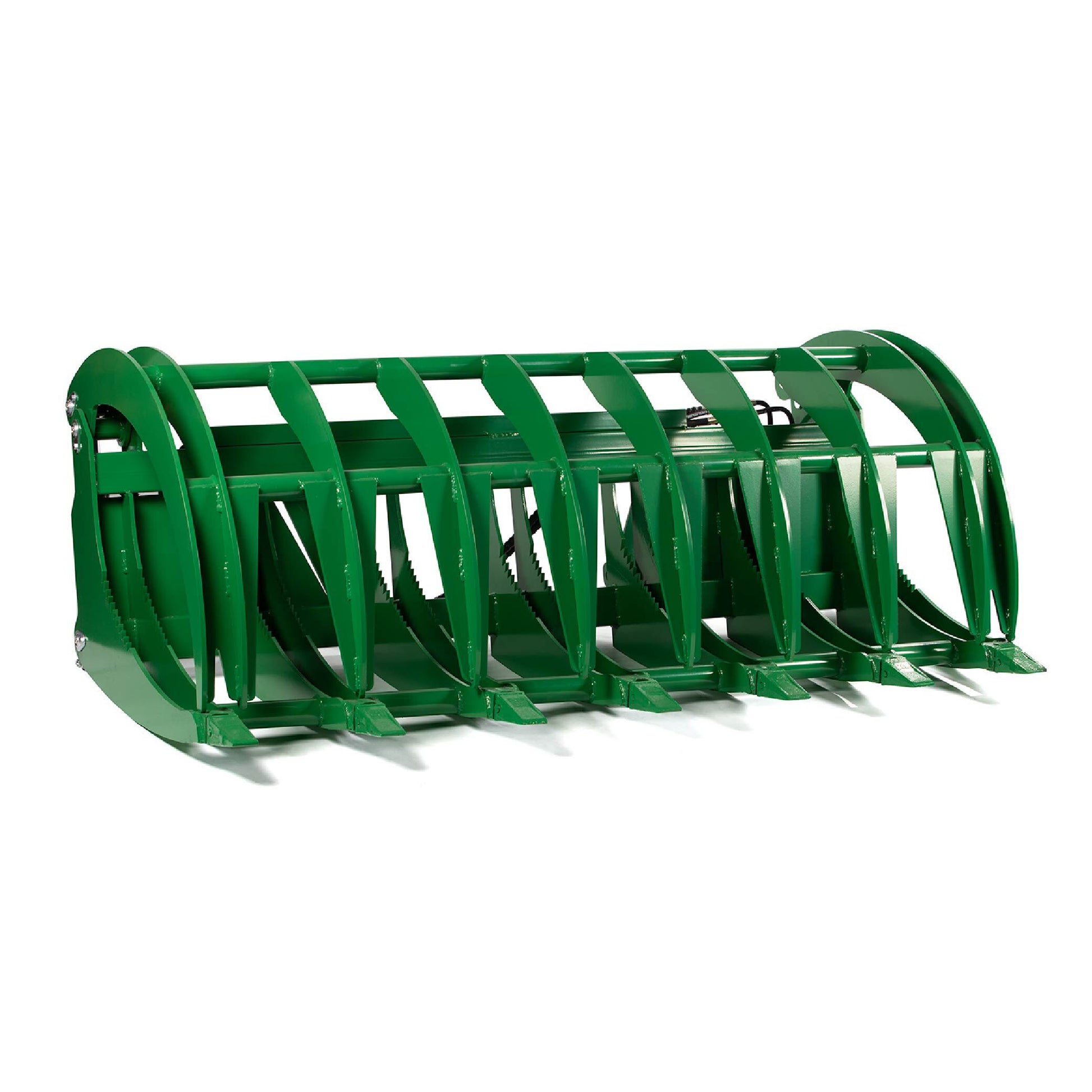

The HD Root Grapple Rake is ideal for picking up and moving rocks, logs, brush, debris, and other odd-shaped or hard-to-lift materials. The extra-wide opening of the rake-style grapple makes pushing and gripping large loads easy. Plus, our design allows this equipment to fit tractor loaders equipped with the Global Euro style mounting system. The implement includes twin 3,000 PSI cylinders, greaseable pins, bushings, hoses, and couplers. Over time, and with constant use, the bucket teeth can get damaged or worn out. This does not have to mean the end of this incredible hardware. We have made it so that the bucket teeth can be replaced easily. Now you have an easy way for maintenance that can extend the life of your HD Grapple Rake.
NOTE: It does not fit any loaders equipped with the John Deere Hook and Pin style or Universal Skid Steer style mounting system
Specifications
Specifications

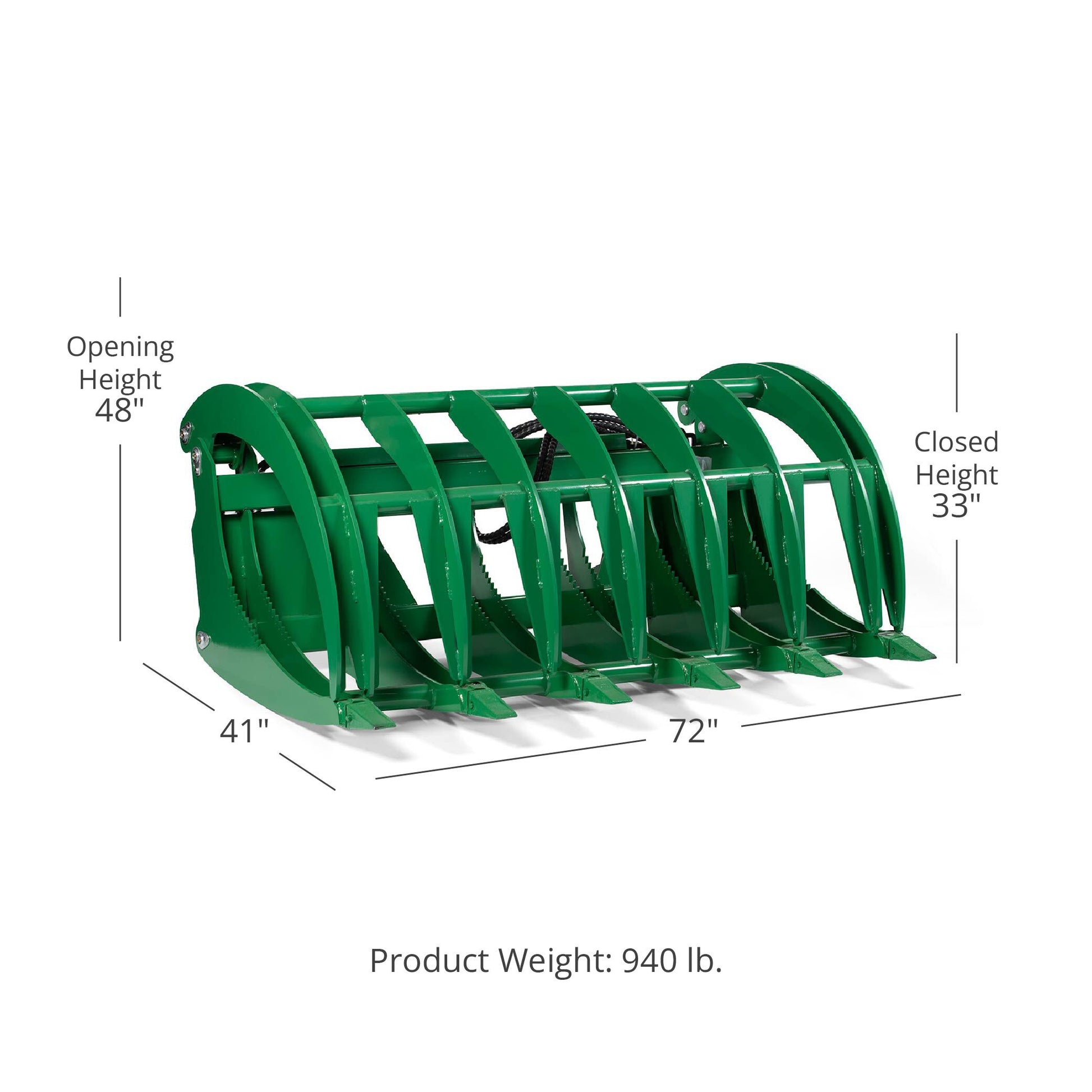

Opening Height
48-in.Closed Height
33-in.Overall Length
72-in.Overall Depth
41-in.Tine Length
36-in.Tine Thickness
0.5-in.Side Thickness

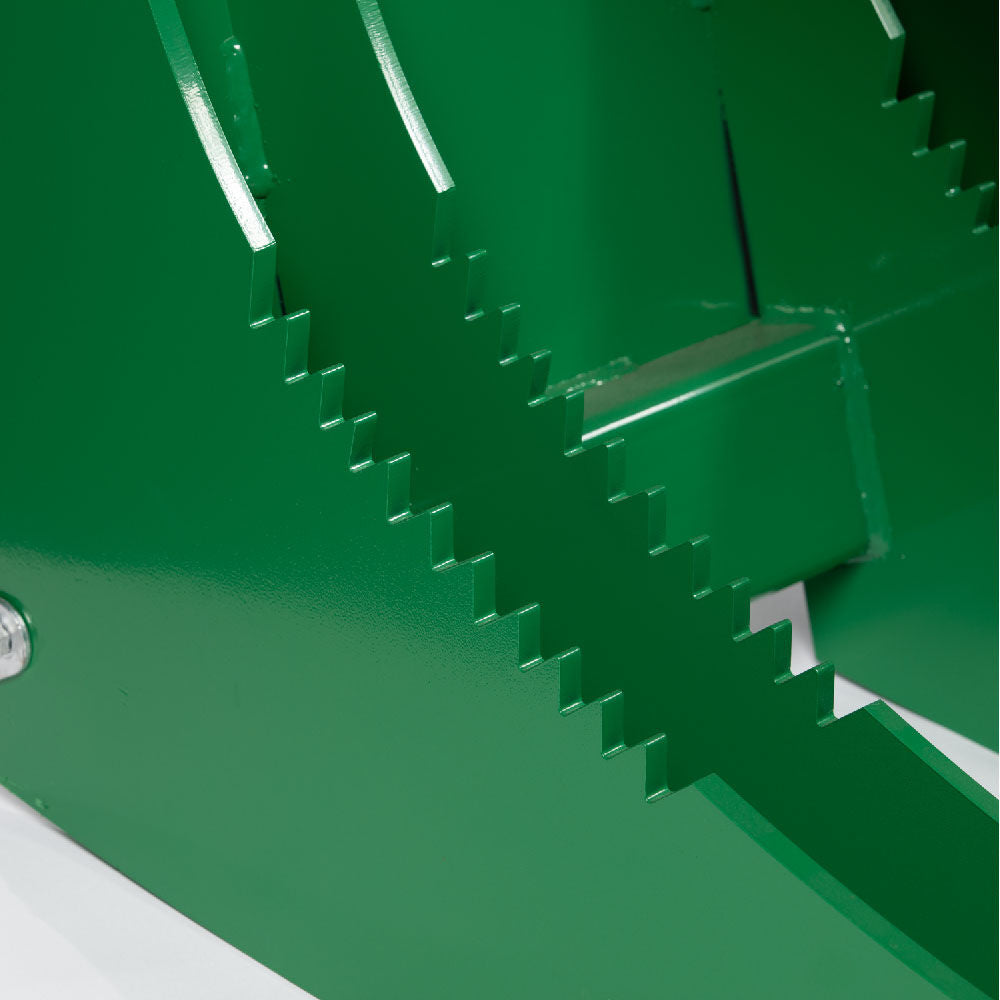

0.5-in.Serrated Edge
9.25-in.Teeth Dimensions
5.375-in x 2.5-in.Space Between Teeth
11-in or 14-in.Finish
Powder-Coated GreenMaterial
Heavy-Duty SteelMin Loader Rated Operating Capacity
1,886 lb.Max Loader Rated Operating Capacity
3,500 lb.Product Weight
940 lb.Details
- Fits tractor loaders equipped with the Global Euro-style mounting system
- Greaseable pins and bushings
- Hoses and flat-faced couplers are included

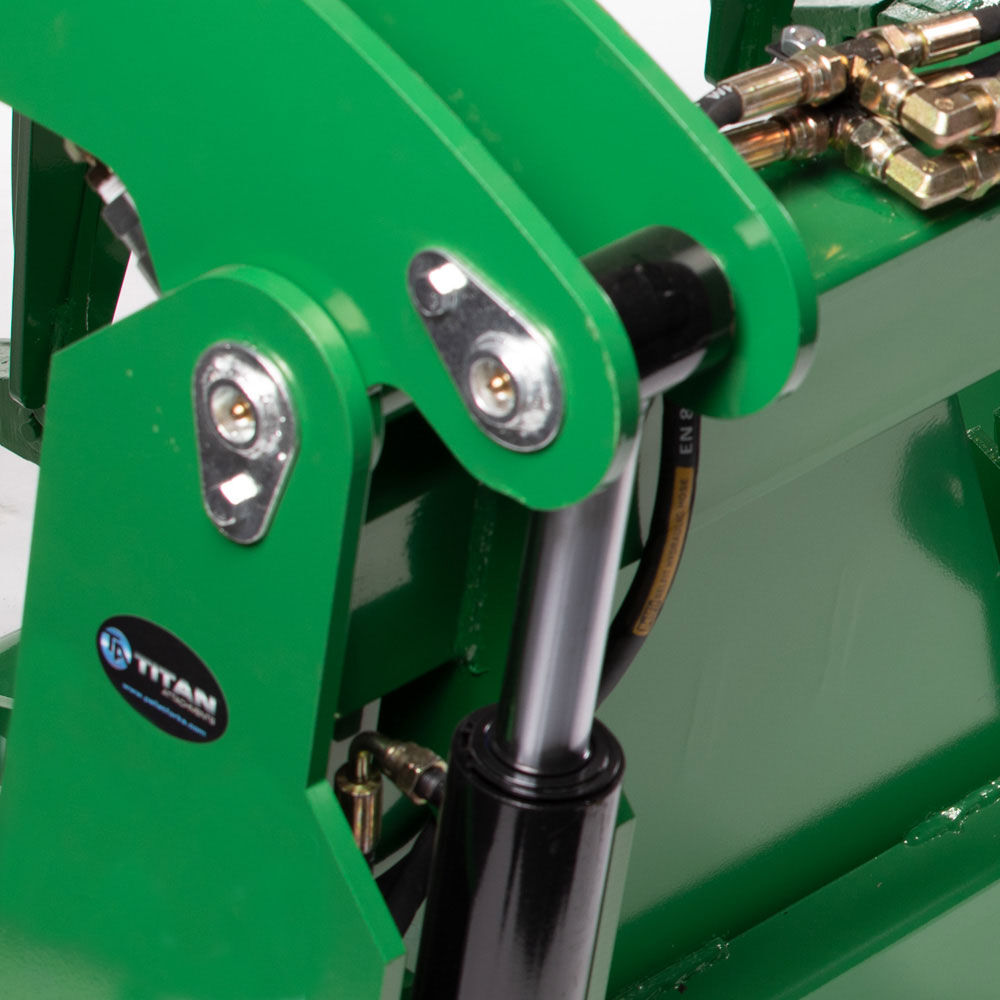

- Twin 3,000 PSI cylinders

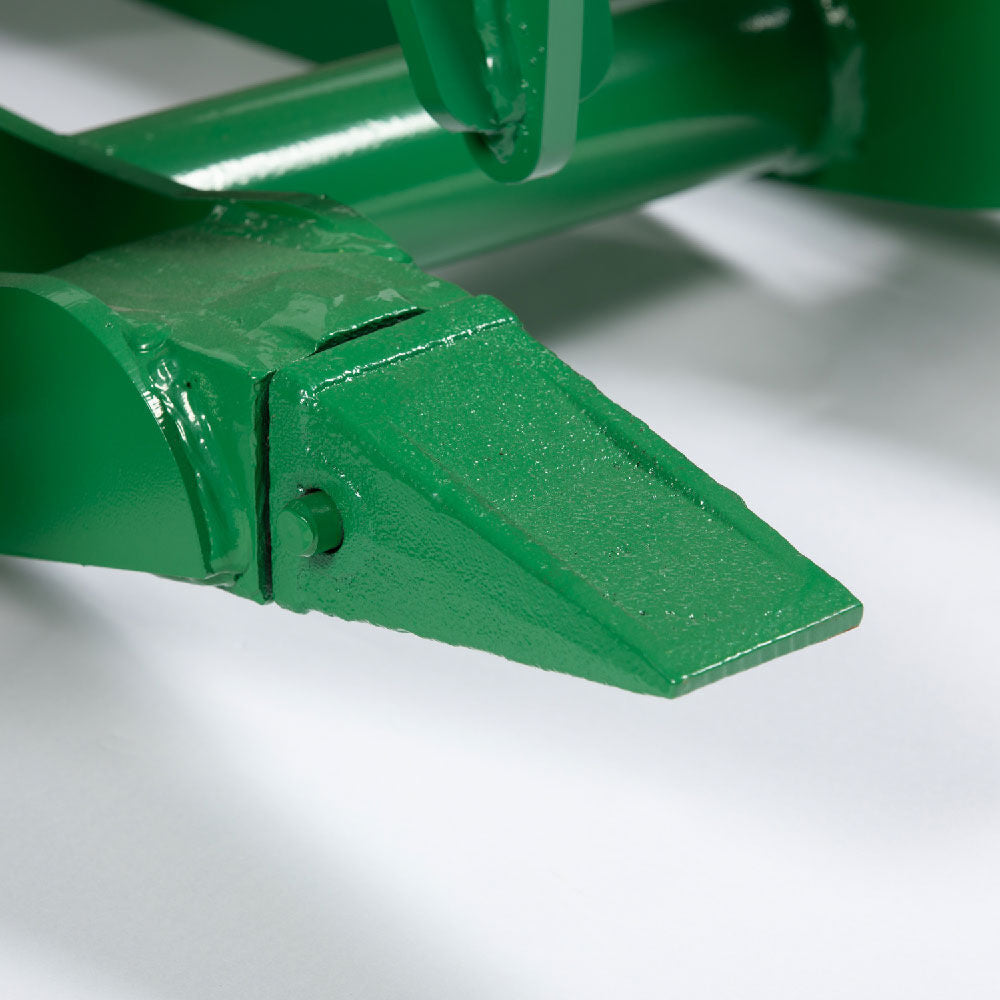

- Replaceable cast bucket teeth
Additional Info
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Disclaimer
This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any equipment, including this one, involves the potential risk of injury. You accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages, rights of action, or causes of action, present or future, whether the same be known or unknown, anticipated, or unanticipated, resulting from or arising out of the use of said equipment.
TITAN MAKES NO WARRANTY WHATSOEVER WITH RESPECT TO THE EQUIPMENT, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, WHETHER EXPRESS OR IMPLIED BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OF TRADE OR OTHERWISE. BUYER ASSUMES ALL LIABILITY IN USE OF THE EQUIPMENT.
