Economy Series Global Euro Pallet Fork Frame

$574.99

$0.00 $574.99 Liquid error (snippets/price line 279): divided by 0% off (Save $-574.99)

Economy Series Global Euro Pallet Fork Frame, Fits John Deere Tractors | Frame Only

Economy Series Global Euro Pallet Fork Frame, Fits John Deere Tractors | Frame + 36" Blades

Economy Series Global Euro Pallet Fork Frame, Fits John Deere Tractors | Frame + 42" Blades

Economy Series Global Euro Pallet Fork Frame, Fits John Deere Tractors | Frame + 48" Blades

Economy Series Global Euro Pallet Fork Frame, Fits John Deere Tractors | Frame + 60" Blades

Economy Series Global Euro Pallet Fork Frame, Fits John Deere Tractors

Economy Series Global Euro Pallet Fork Frame

$574.99

$0.00 $574.99 Liquid error (snippets/price line 279): divided by 0% off (Save $-574.99)

Promo codes are not eligible on this item

Move pallets, logs, hay and more up to 4,000 LB with the all-in-one Economy Series Pallet Fork Frame - available with and without pallet forks.

Connection Type : Global Euro

Choose Pallet Fork Length: Frame Only

Frame Only Frame + 36" Blades Frame + 42" Blades Frame + 48" Blades Frame + 60" Blades

Product variants

SKU: SKU: 132314

Availability:

In Stock

Fast & Free Shipping on Every Order

Handling fee applies to oversize items

1-Year warranty included

Extended coverage available with Mulberry

Buy Now, Pay Later

Flexible payment options available with Bread Pay™

View full details

Economy Series Global Euro Pallet Fork Frame, Fits John Deere Tractors

Overview Specs Details Reviews

$574.99

$0.00 $574.99

Liquid error (snippets/price line 185): divided by 0% off (Save $-574.99)

$574.99

$0.00 $574.99

Liquid error (snippets/price line 185): divided by 0% off (Save $-574.99)

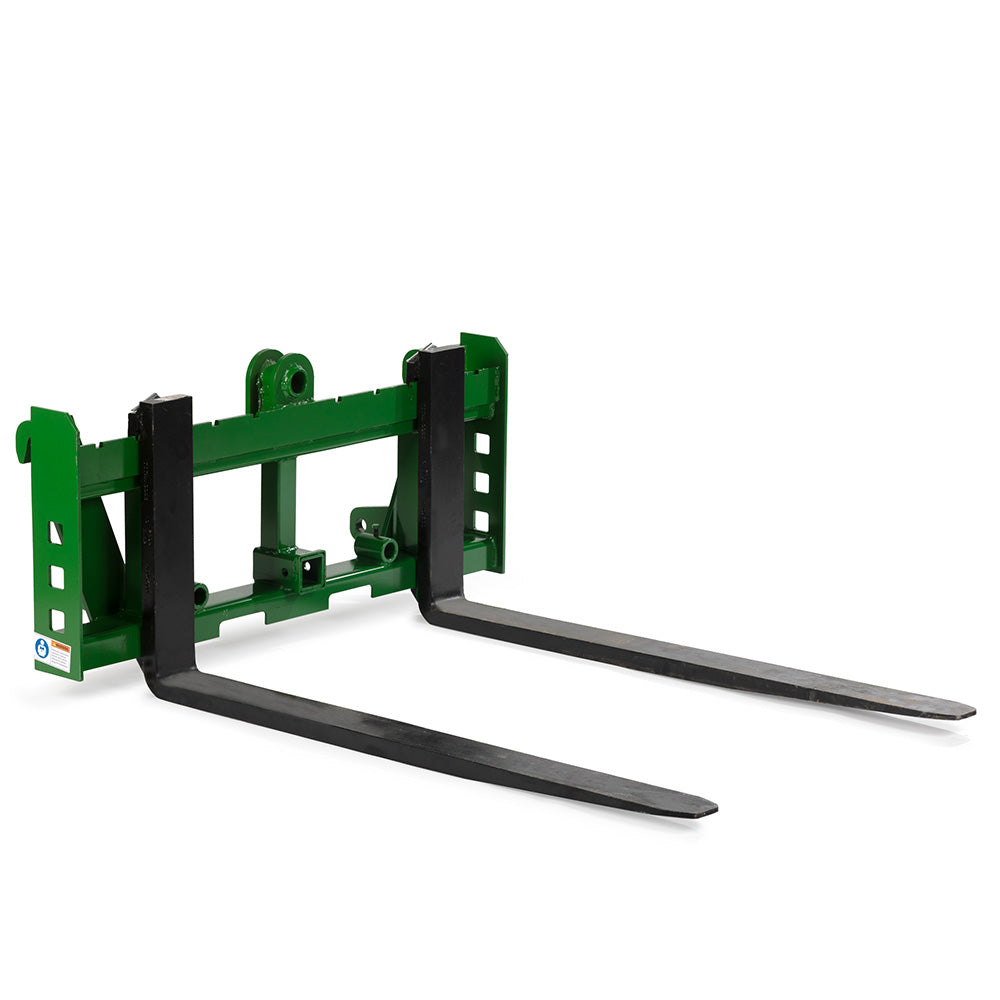

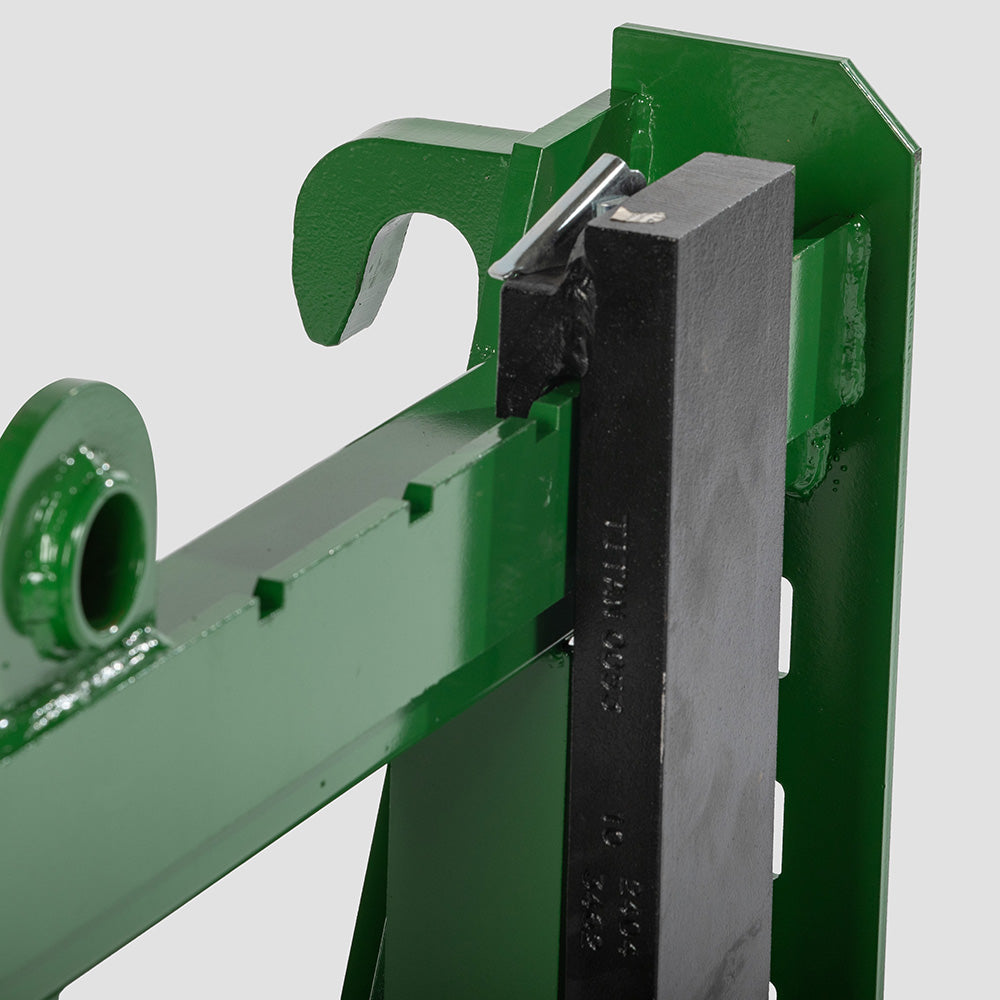

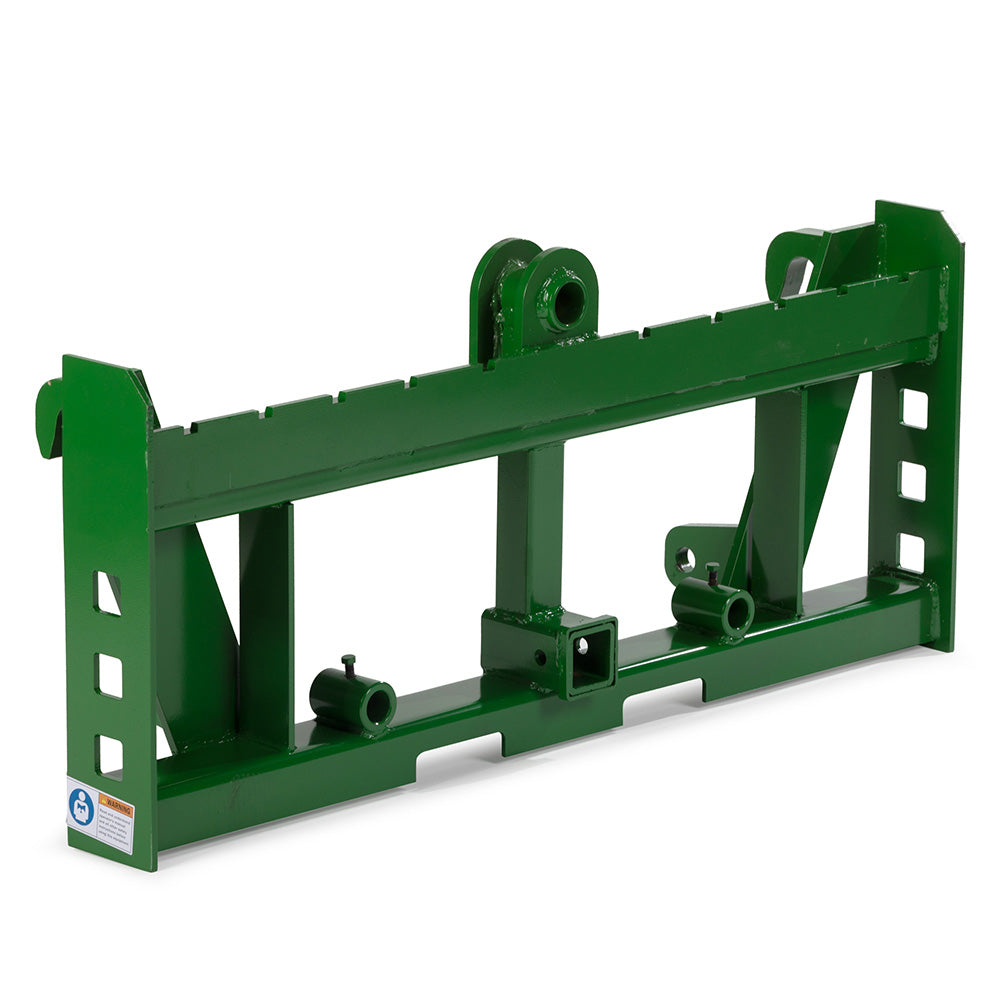

Rated at 4,000 LB, the all-in-one Economy Series Pallet Fork Frame handles most lifting and light towing tasks without overloading your machine's power or lift capacity. This frame features a slotted carriage bar and is available with or without Class II pallet fork blades, making it perfect for moving pallets, logs, and other debris. Additionally, it includes a 2" receiver hitch, allowing your tractor to double as a towing machine.

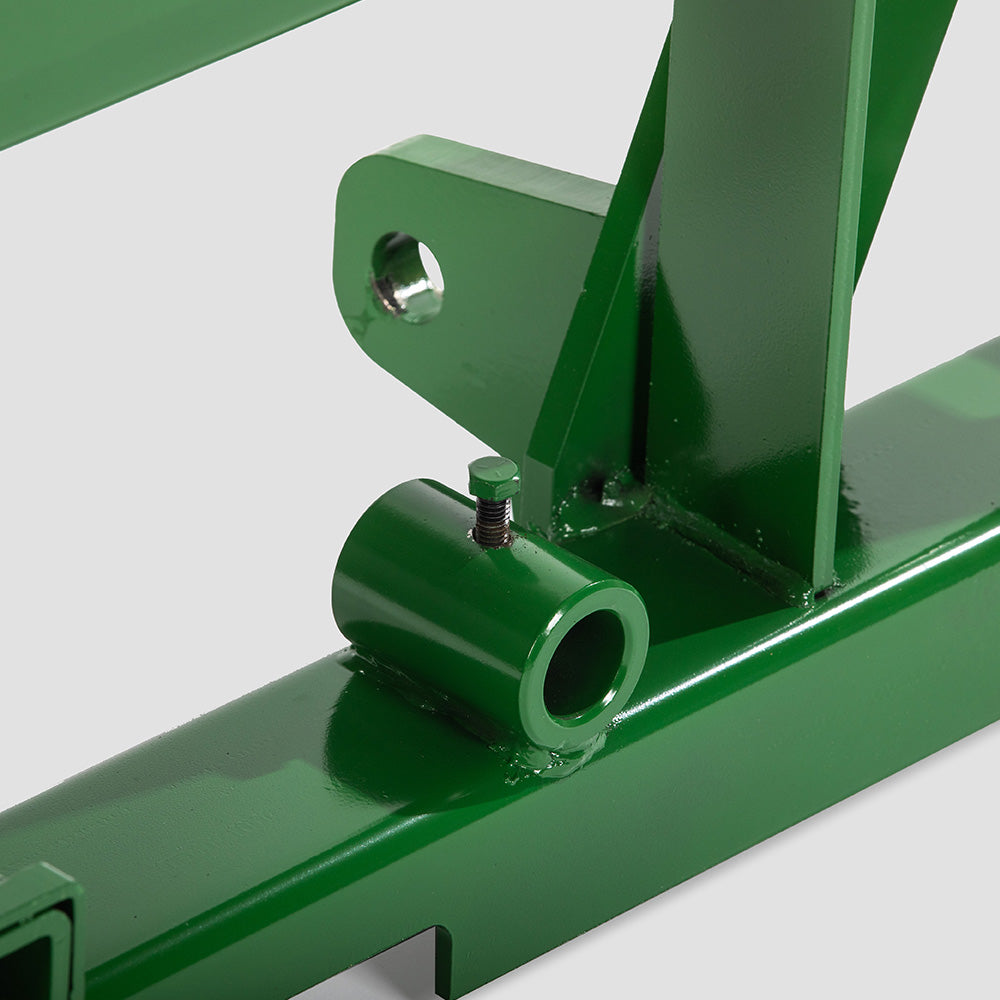

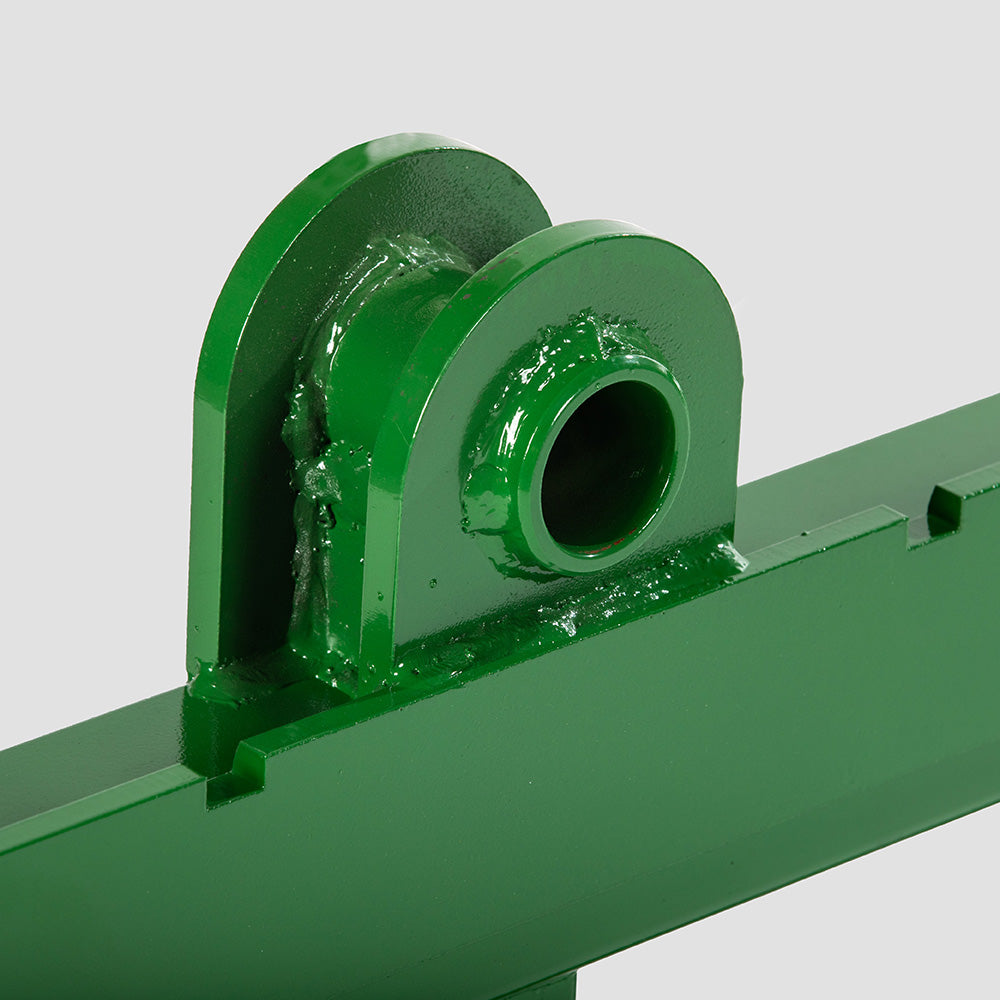

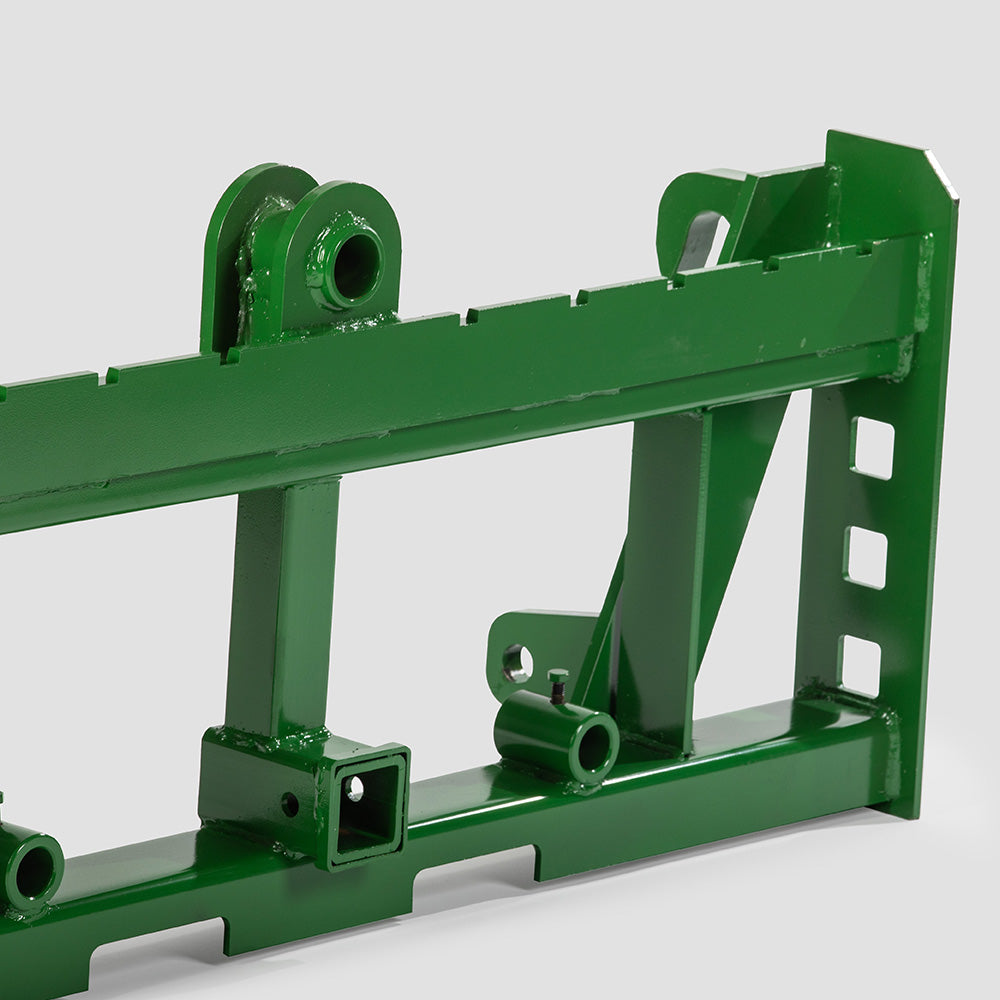

To quickly move large hay bales, the frame features a main Conus 2 hay spear sleeve along with two stabilizer spear sleeves welded directly to it (spears sold separately). This attachment is specifically designed for John Deere Global Euro mounting systems and is not compatible with Universal Quick Tach or Hook and Pin connections.

NOTE: We will need your phone number to schedule delivery to avoid delays.

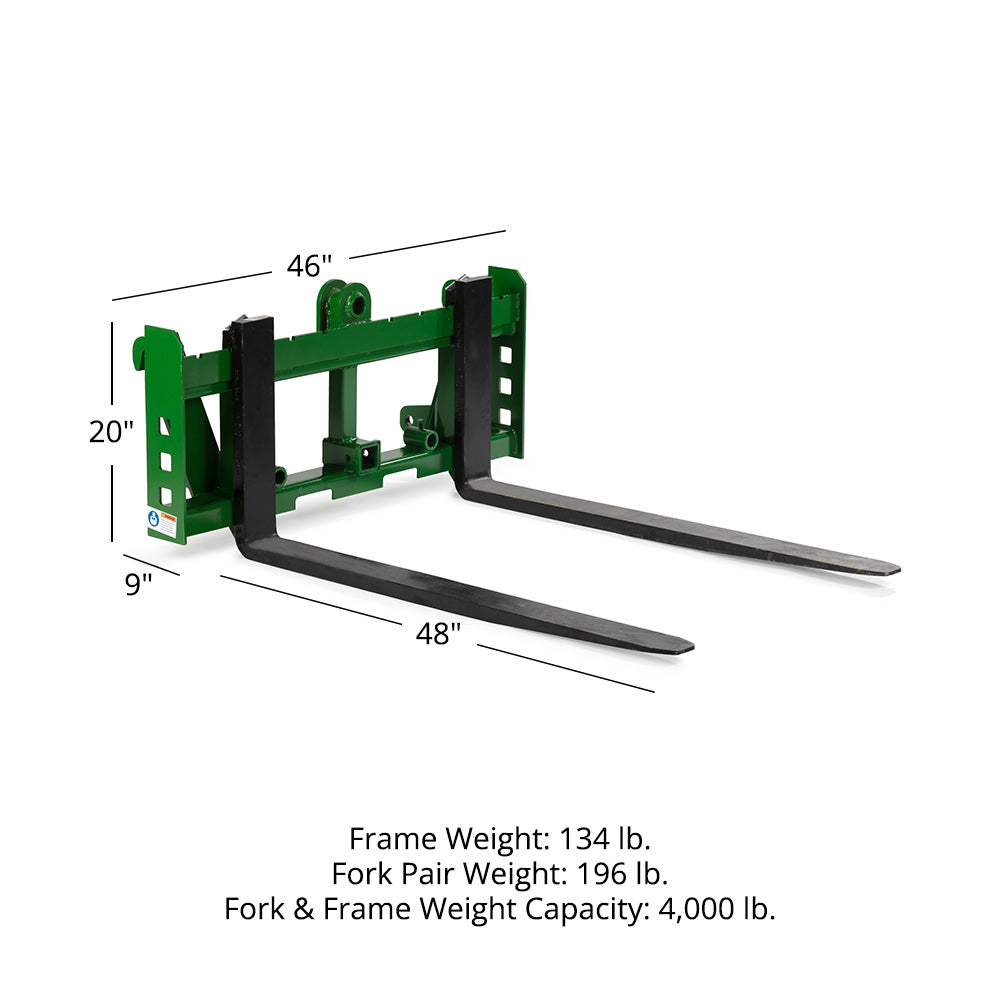

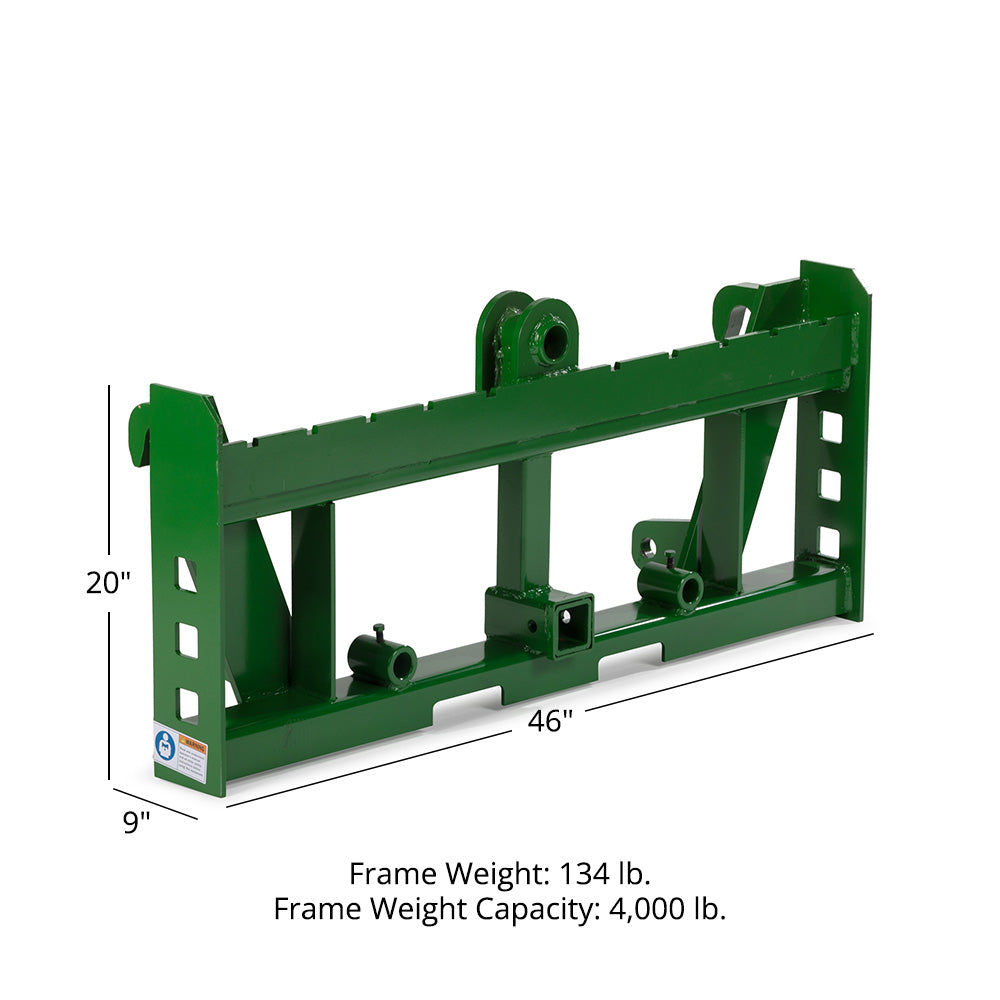

Specifications

Frame Height

20-in.

Frame Width

46-in.

Frame Depth

9-in.

Pallet Fork Blades

Class 2

Upper to Lower Rail

16-in.

Main Spear Sleeve

Conus 2

Receiver Hitch Dimensions

2-in. x 2-in.

Material

Frame Finish

Powder-Coated Green

Frame Material

Steel

Weight

Frame Weight Capacity

4,000 lb.

Frame Weight

134 lb.

Details

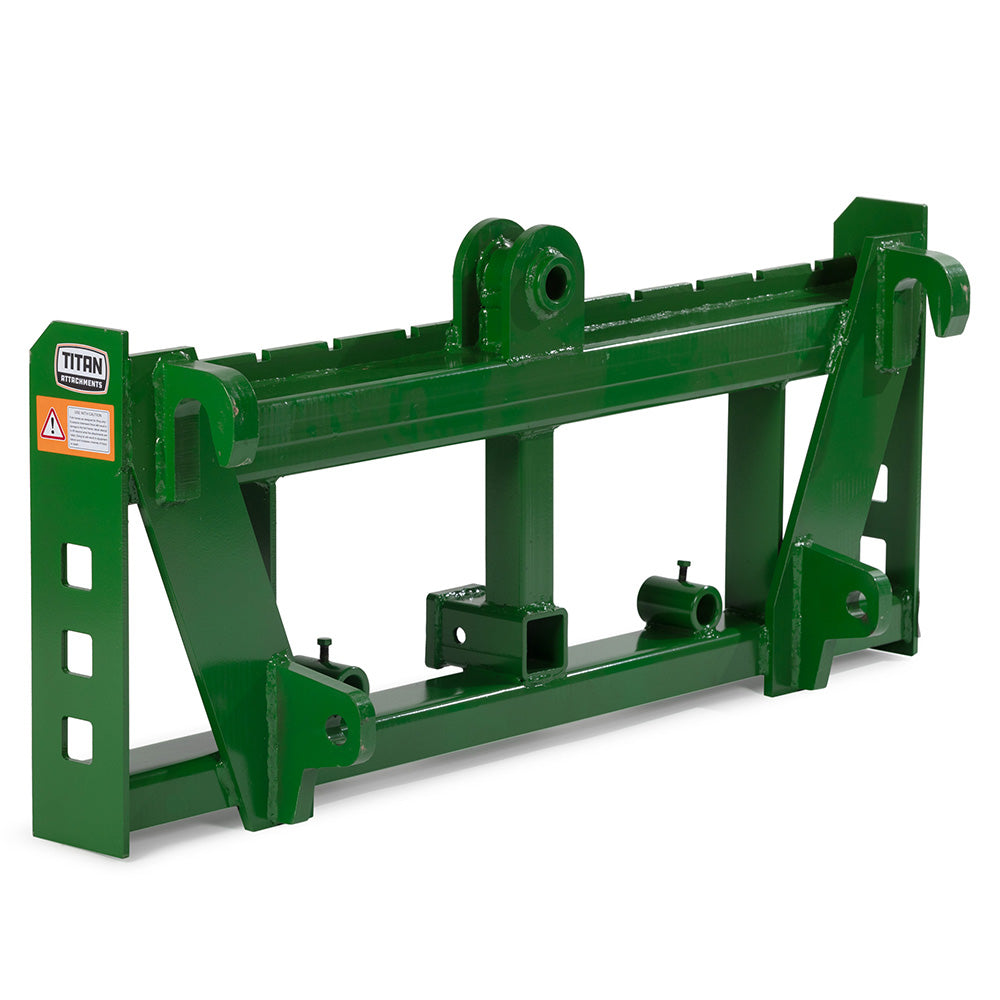

‍Economy Series Pallet Fork and Hay Frame

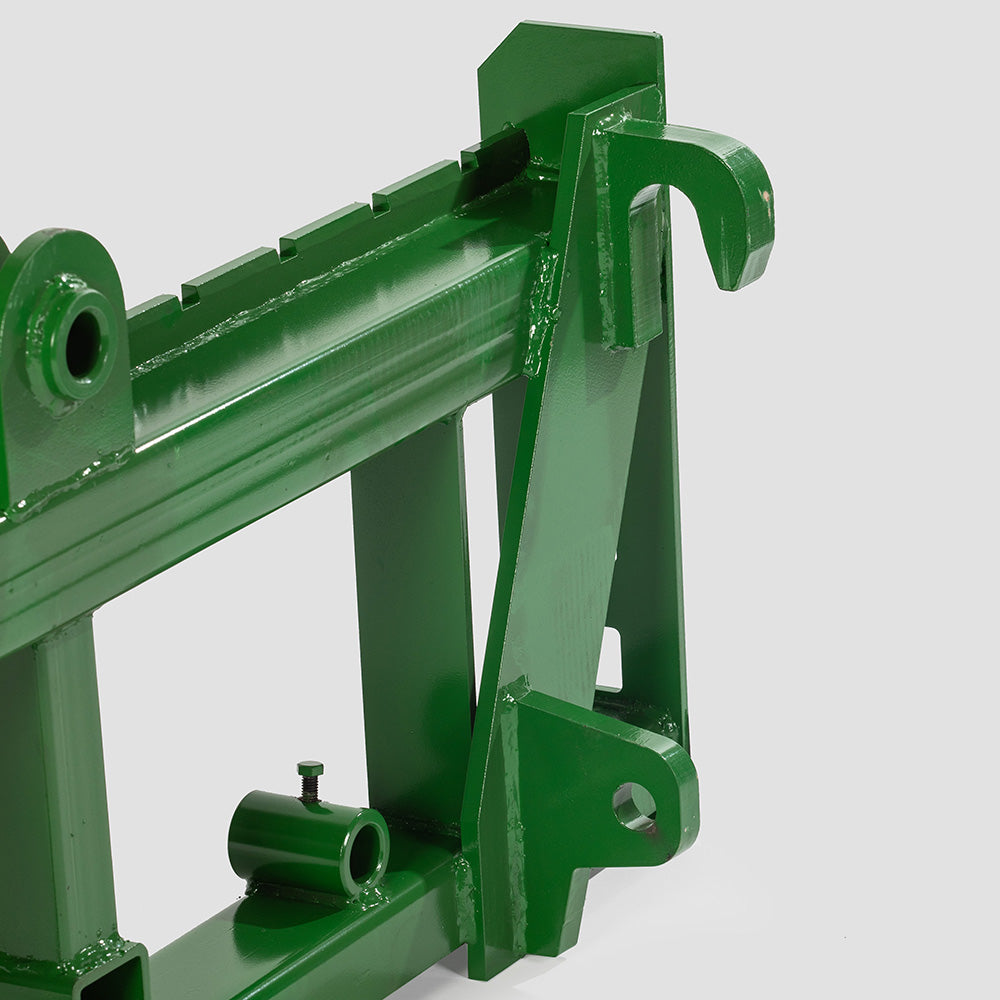

‍Fits John Deere Global Euro style mounting
‍All-in-one frame for moving pallets, hay bales, and trailers
‍Features hay spear sleeves

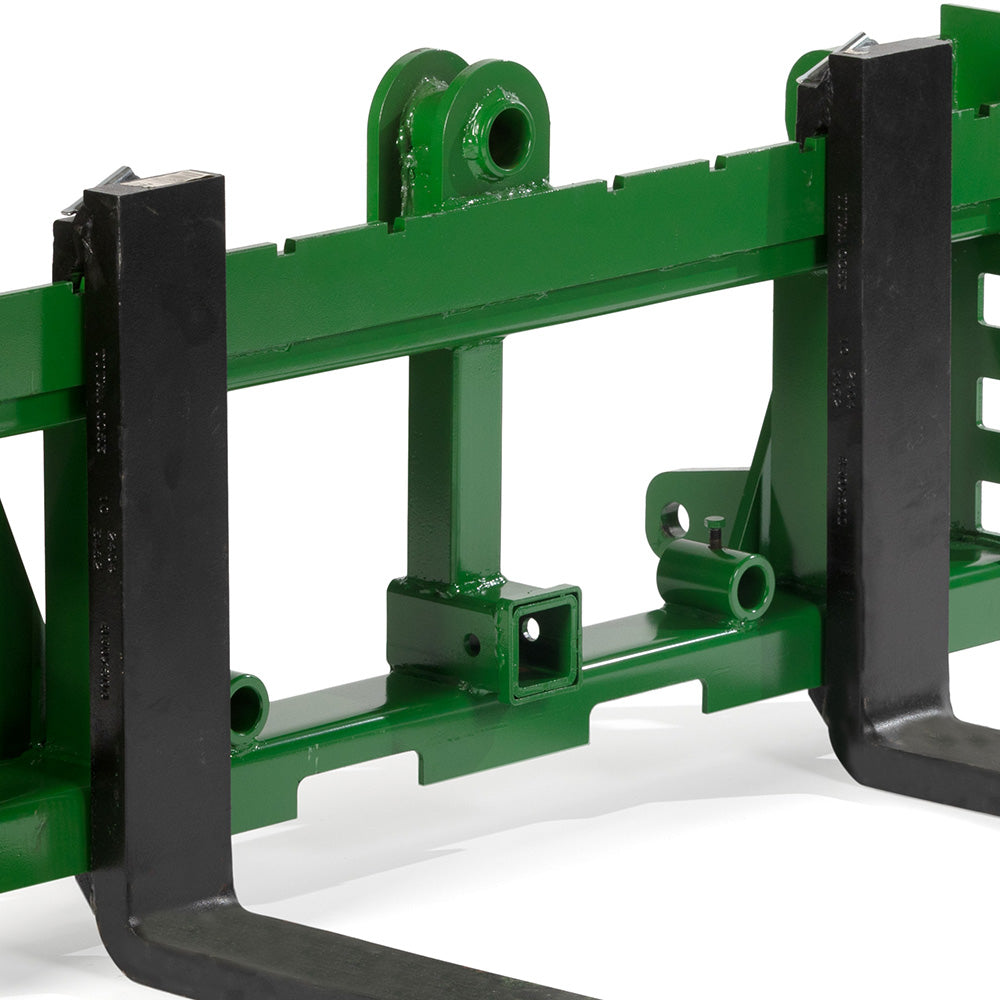

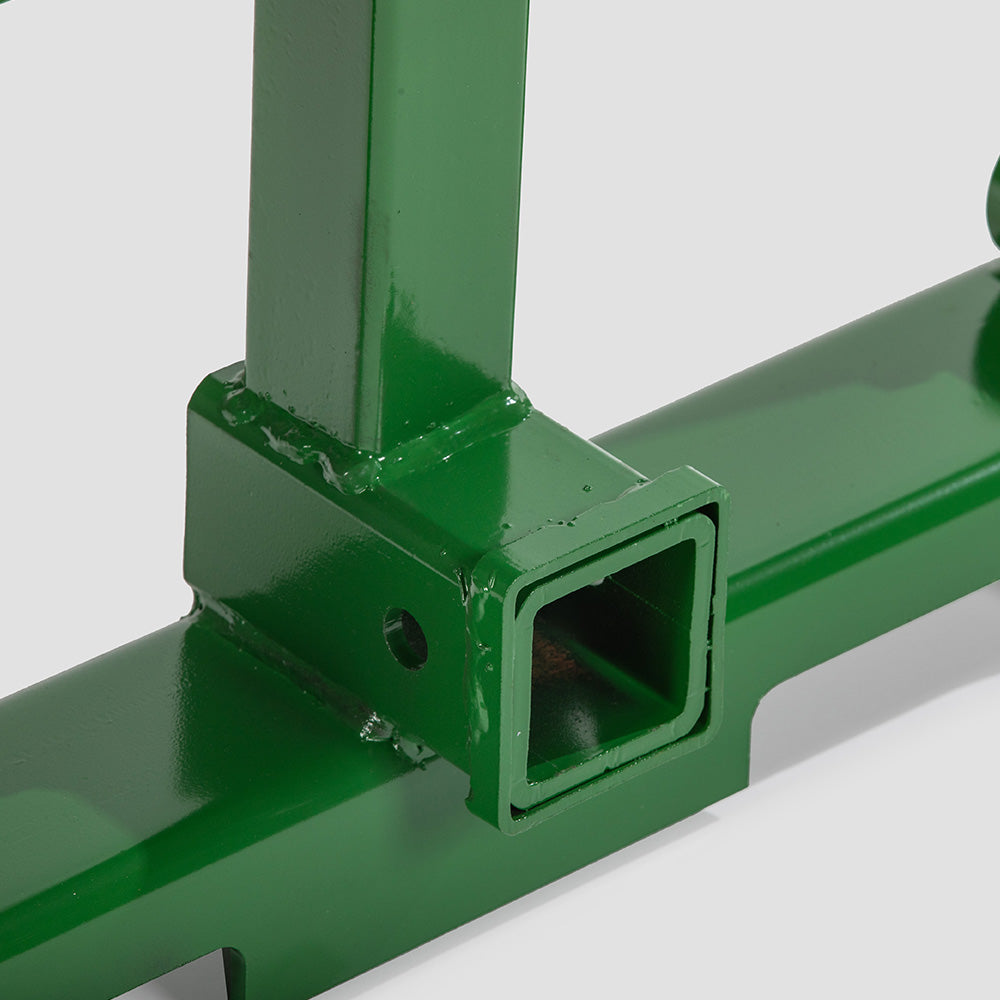

‍Features a 2" receiver hitch
‍Accepts Class 2 pallet fork blades (sold separate)
‍Accepts one Conus 2 hay bale spear (sold separate)
‍Accepts a pair of stabilizer spears (sold separate)
‍Not compatible with the Hook and Pin or SSQA

View Product Manual
