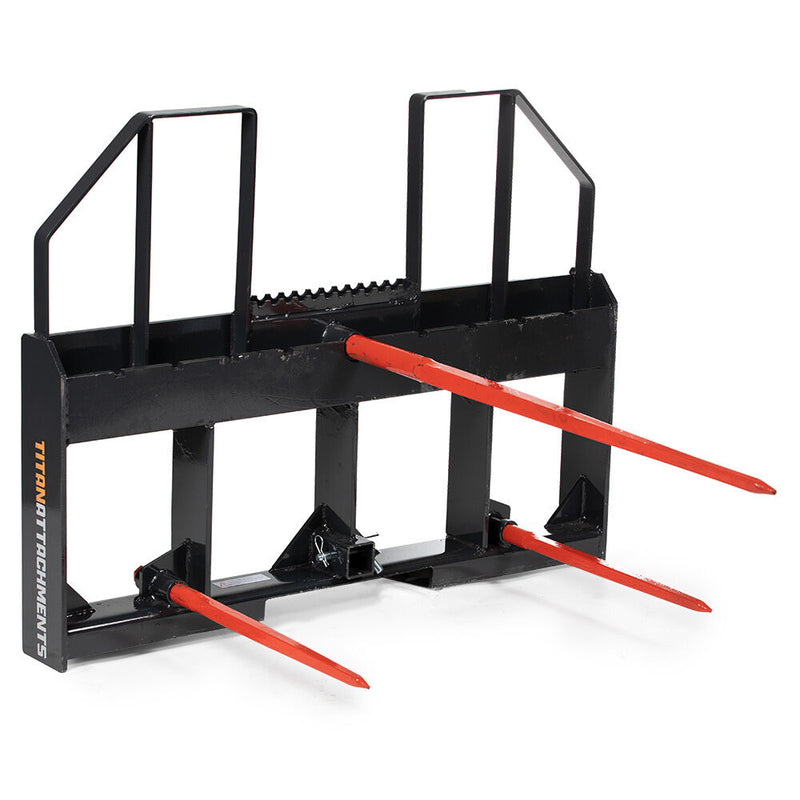

Class 3 Step-Through Hay Frame Attachment, 32" Hay Spear
Class 3 Step-Through Hay Frame Attachment, 32" Hay Spear
SKU: SKU: 132117
This is a carousel with product media thumbs. Use the thumbs to navigate, or jump to a slide.
Product Overview
NOTE: When you order this product, we will need your phone number for the trucking company to schedule delivery. Without your number, there could be a delay.
Specifications
Specifications

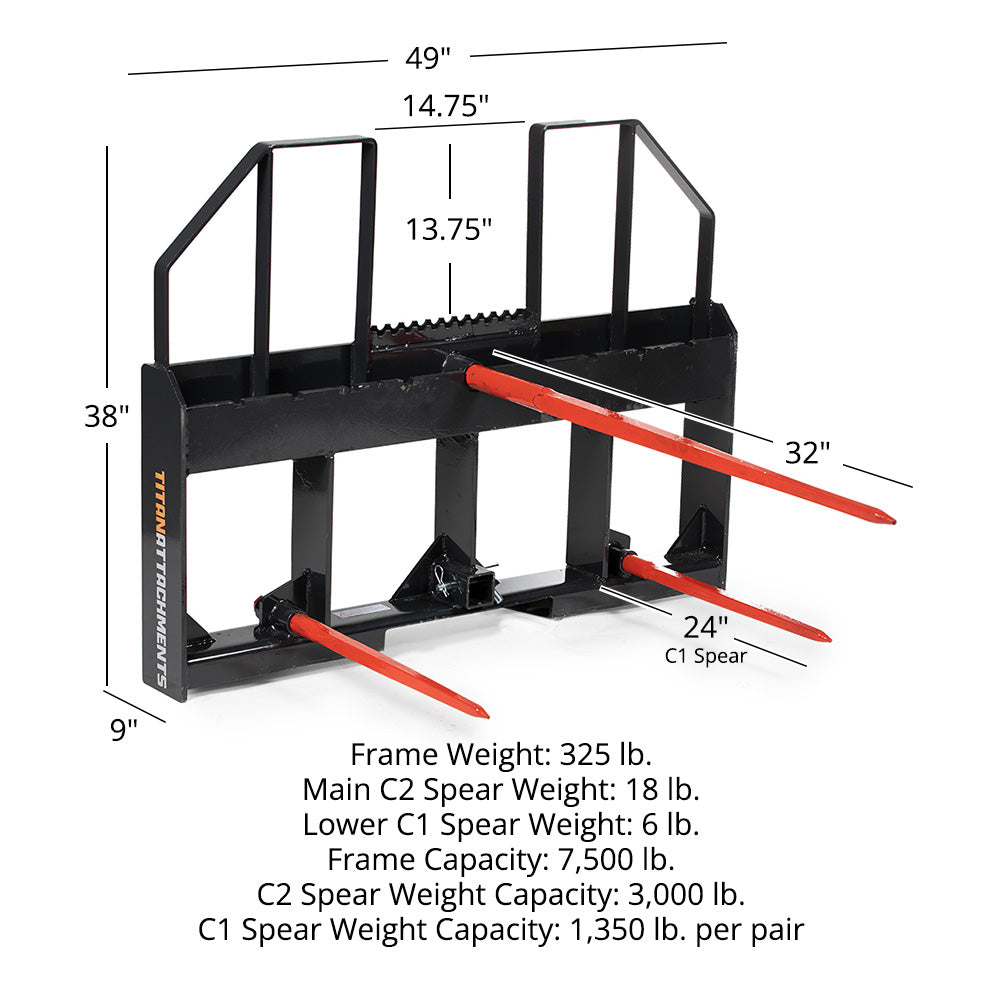

Overall Height
38-in.Overall Width
49-in.Overall Depth
9-in.Walk Through Dimensions
14.75-in. x 13.75-in.Main Spear Sleeve
Conus 2Lower Spear Sleeve
Conus 1Main C2 Spear Overall Length
32-in.Main C2 Spear Diameter
1.75-in. taperedLower C1 Spear Overall Length
24-in.Lower C1 Spear Diameter
1.375-in. taperedFork Width Adjusts
6-in to 48-in.Upper to Lower Rail
20-in.Finish
Powder-Coated CharcoalMaterial
Steel - Frame Capacity7,500 lb.
C2 Spear Weight Capacity3,000 lb. per pair
C1 Spear Weight Capacity1,350 lb. per pair
Main C2 Spear Weight18 lb.
Lower C1 Spear Weight6 lb.
Frame WeightDetails
- Universal Skid Steer Quick Tach Mounting System
- Geared for severe duty environments like demolition
- Unique step-through design with safety tread plate
- Safely move hay bales with the added stability of a headache rack
- Carriage Bars and Hay Spear Sleeves are already installed
- Standard 2-inch trailer receiver hitch is welded to the frame
- All in one frame design for moving pallets, large round hay bales, and trailers
- Accepts two Class 3 Pallet Fork Blades (sold separate)
- Included: One Conus 2 Hay Bale Spears
- Included: Two 24-inch Conus 1 Hay Bale Spears
