4 FT ATV Transformer Tow Frame With Notched Disc Harrow Attachment

Name: ATV Transformer Tow Frame With Notched Disc Harrow
Brand: Titan Attachments
SKU: 191357
Price: 824.97 USD
Availability: InStock

$824.97

~~$879.99~~ $824.97 6% off (Save $55.02)

ATV Transformer Tow Frame With Notched Disc Harrow

Limited Time Offer

4 FT ATV Transformer Tow Frame With Notched Disc Harrow Attachment

$824.97

~~$879.99~~ $824.97 6% off (Save $55.02)

Promo codes are not eligible on this item

The 4 ft ATV Transformer Tow Frame With Notched Disc Harrow Attachment from Titan. Free shipping available. Shop now.

Product variants

SKU: SKU: 191357

Availability:

In Stock

Fast & Free Shipping on Every Order

Handling fee applies to oversize items

1-Year warranty included

Extended coverage available with Mulberry

Buy Now, Pay Later

Flexible payment options available with Bread Pay™

View full details

ATV Transformer Tow Frame With Notched Disc Harrow

Overview Specs Details Reviews

$824.97

~~$879.99~~ $824.97

6% off (Save $55.02)

$824.97

~~$879.99~~ $824.97

6% off (Save $55.02)

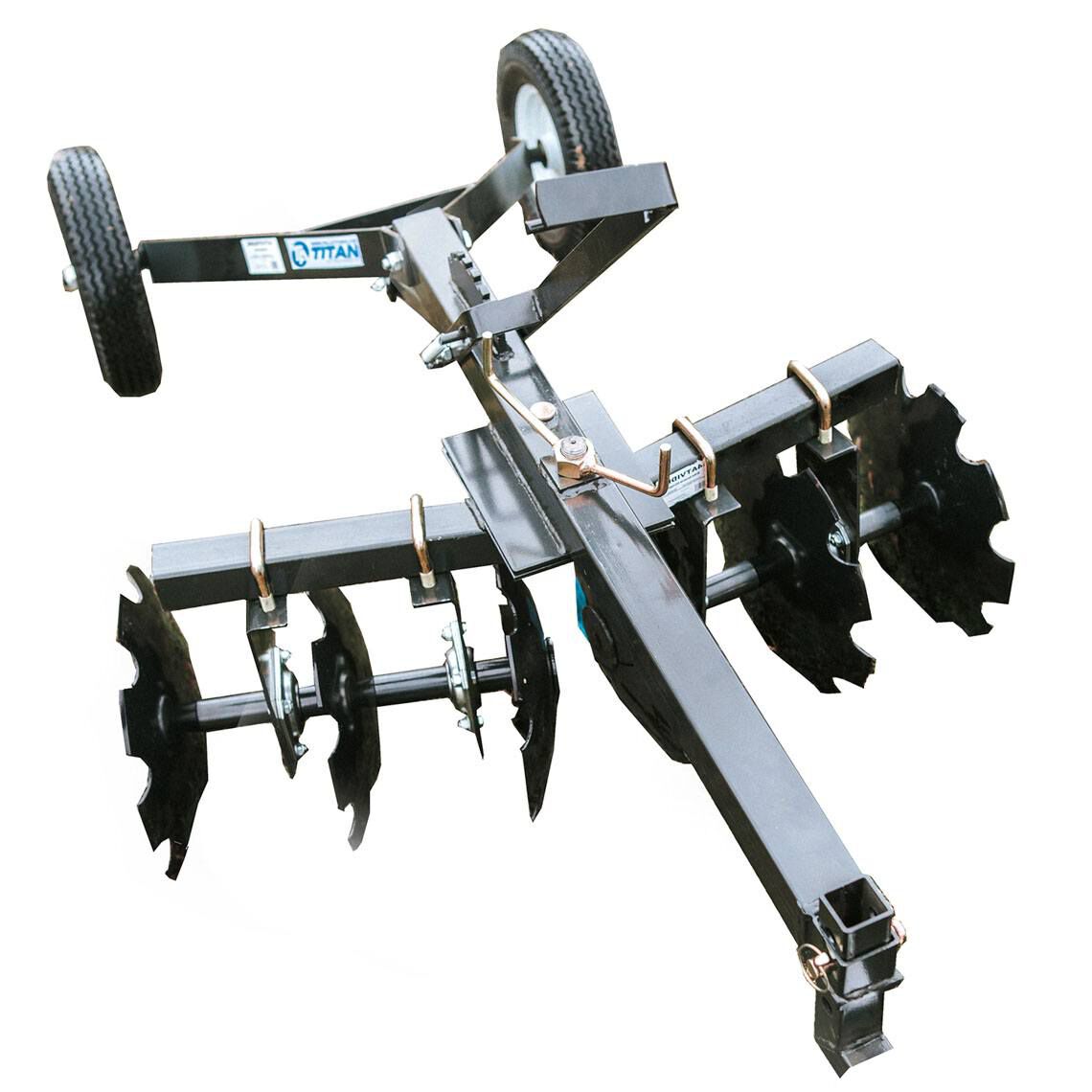

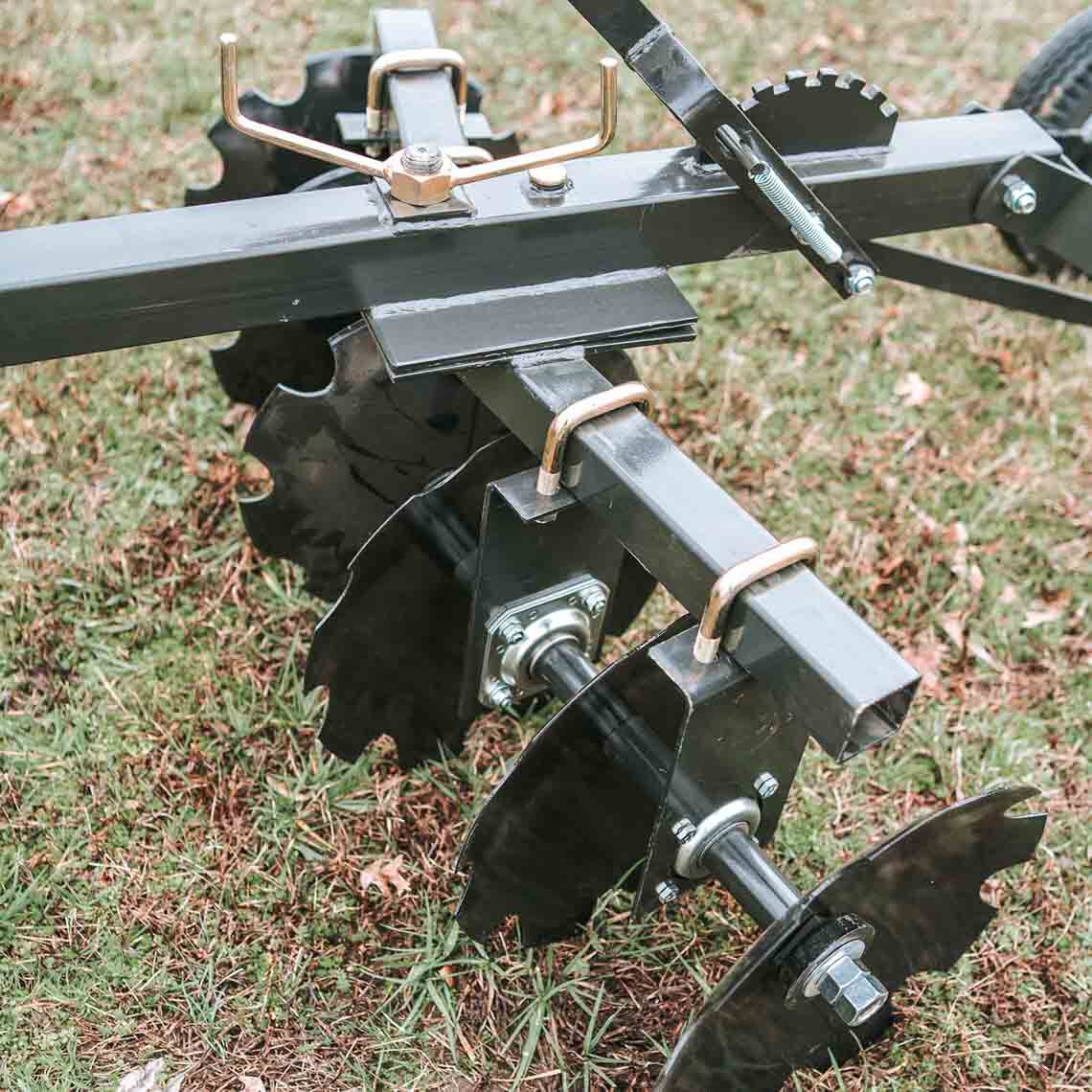

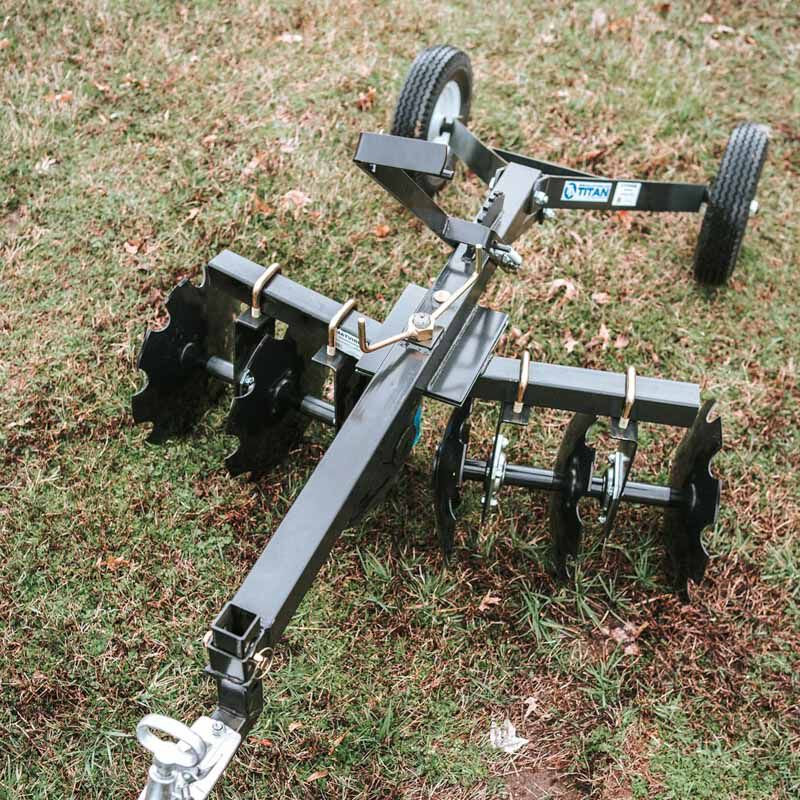

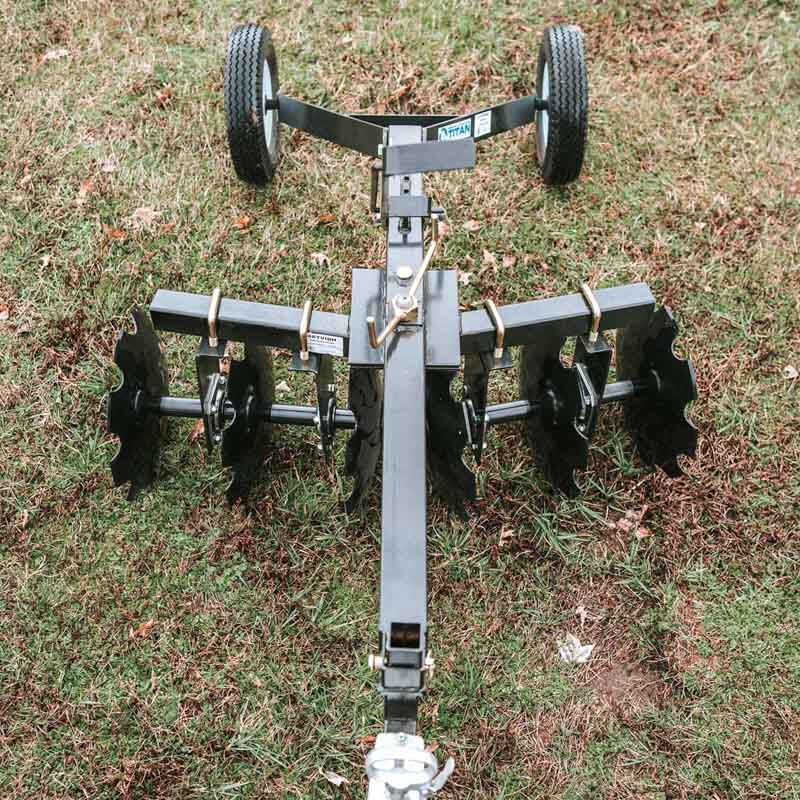

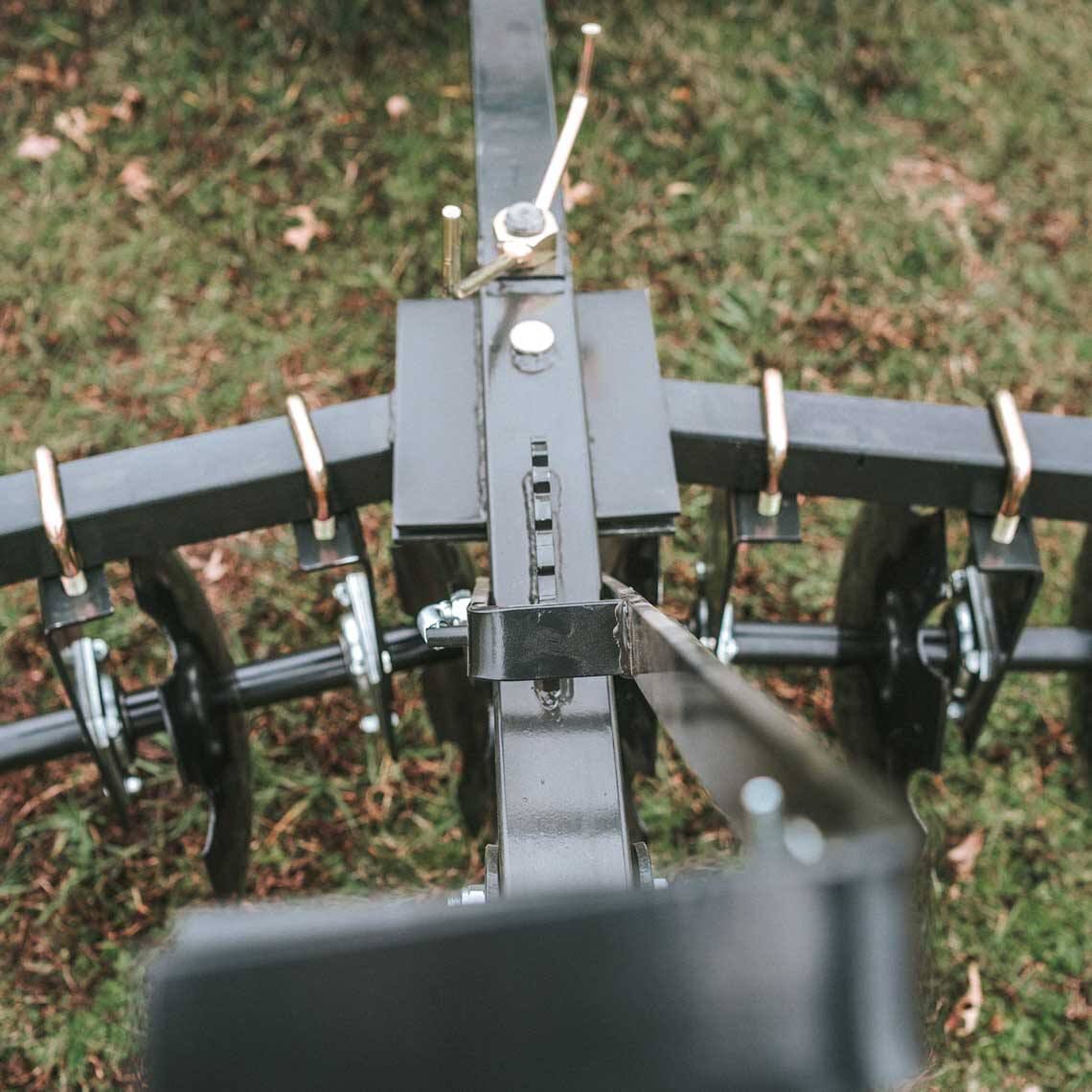

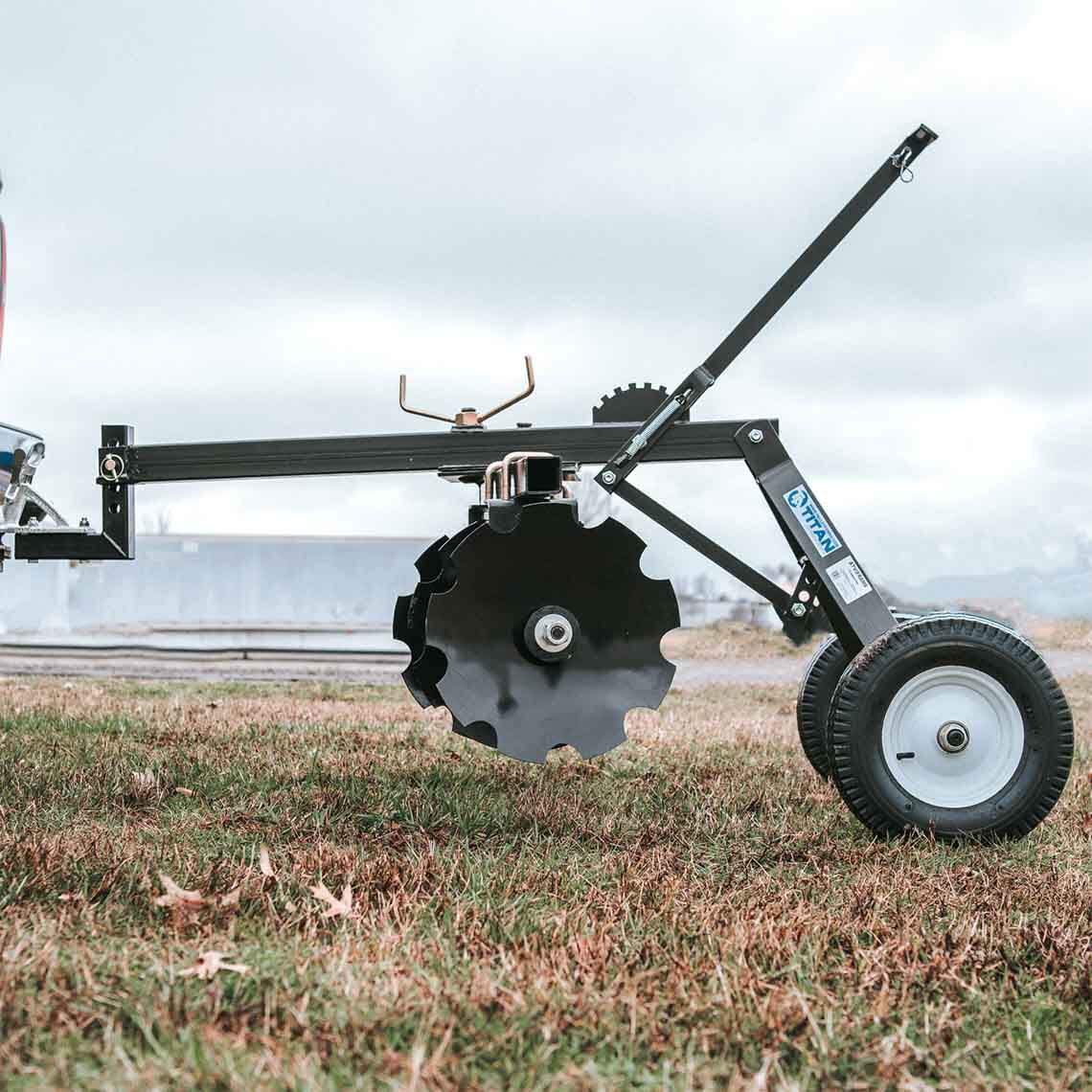

With the ATV 4 FT Notched Disc Harrow, you can easily till up your land to prepare it for planting. This tow behind disc harrow attaches to the ball receiver on any ATV or UTV such as Honda, Cub Cadet, Grizzly, Polaris, Yamaha, and more. With the 6 replaceable notched discs, you can break up the ground and rip through weeks and unwanted debris. Each disc is 16” in diameter and is concaved to allow them to loosen and lift the soil as it cuts. Adjust the disc spacing using the u-bolts to fit your tilling needs. The working width of the ATV Disc Harrow is 4' or 48 inches. The transformer tow frame allows you to rotate the disc harrow attachment to the perfect angle as well as giving you the ability to control depth with a simple to use hand lever.

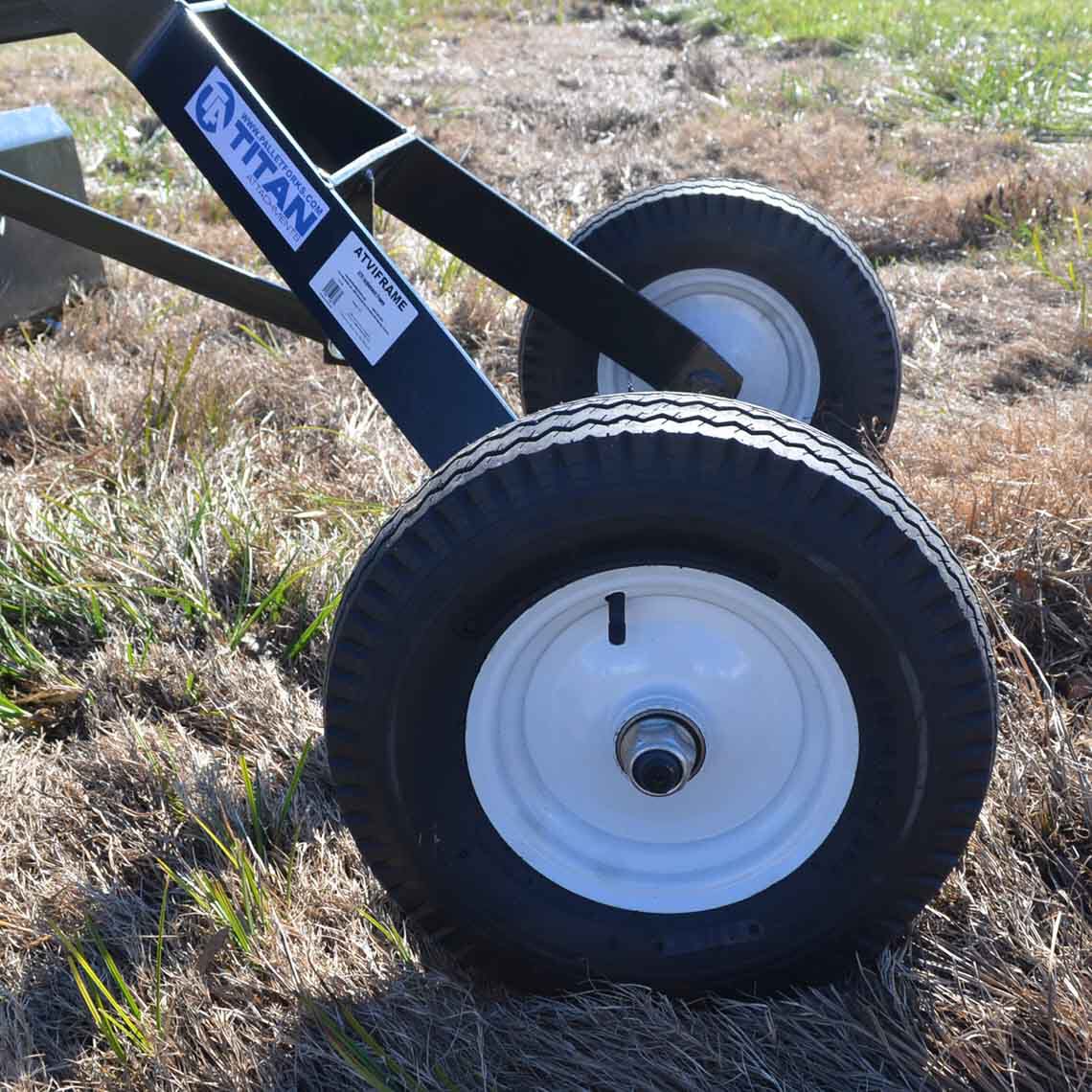

THE TITAN TRANSFORMER TOW FRAME

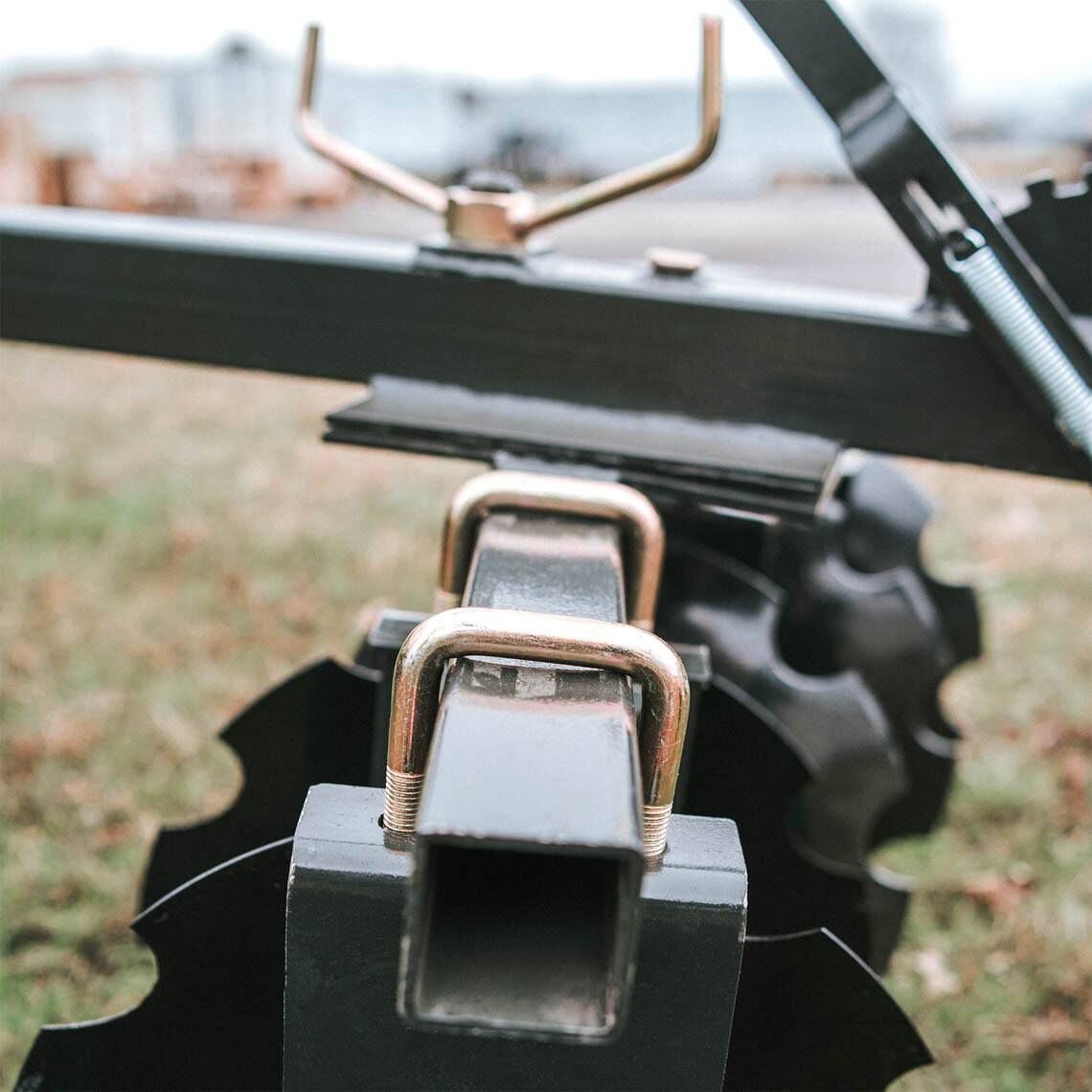

The Titan Transformer Tow Frame is designed to be compatible with any of the Titan tow frame attachments including rakes, grader blades, and disc harrows. Switching the implements is fast and easy. Simply remove the attachment from the tow frame using the large wing nut and slide in your next attachment. With this one easy, interchangeable system, you can save time, money and space, without needing to purchase multiple full-size implements.

4' ATV Transformer Tow Frame With Landscape Rake Attachment With the 24 replaceable tines, you can clear debris such as sticks, leaves, rocks, trash and more, making it easy to clean and control your farm and fields.

6' ATV Transformer Tow Frame With Landscape Rake Attachment With the 36 replaceable tines, you can clear debris such as sticks, leaves, rocks, trash and more, making it easy to clean and control your farm and fields.

4' ATV Transformer Tow Frame With Grader Blade Attachment With the 48" wide and 10mm thick blade, this tow behind grader is an excellent tool for smoothing driveways and dirt roads.

6' ATV Transformer Tow Frame With Grader Blade Attachment With the 72" wide and 10mm thick blade, this tow behind grader is an excellent tool for smoothing driveways and dirt roads.

4' ATV Transformer Tow Frame With Notched Disc Harrow Attachment With the 16" notched discs, you can break up the ground and rip through weeks and unwanted debris.

Looking to add one of these attachments to the Transformer Tow Frame you already own? Click on the button below to view all add on options available.

Shop All Add on Attachments

Specifications

Working Width

48-in.

Transformer Tow Frame Length

50-in.

Disc Diameter

16-in.

Disc Type

Notched and Concaved

Mount Type

2” Tow Ball

Finish

Powder-Coated Black

Material

Steel

Disc Harrow Attachment Weight

165 lb.

Transformer Tow Frame Weight

105 lb.

Combined Weight

270 lb.

Details

‍2-inch ball tow compatible
Quick-release ball hitch
4 hitch height settings
7 adjustable height positions via spring hand lever
6 notched hardened steel discs
Discs are concaved to allow them to loosen and lift soil as it cuts
Great for breaking up weeds, roots, crop debris, and remainder
Part of the Titan Transformer Tow Frame family

View Product Manual
