72" Fine Grade Skeleton Rock Grapple Bucket Fits John Deere Tractors
72" Fine Grade Skeleton Rock Grapple Bucket Fits John Deere Tractors
SKU: SKU: 115014
This is a carousel with product media. Use Next and Previous buttons to navigate, or jump to a slide.
This is a carousel with product media thumbs. Use the thumbs to navigate, or jump to a slide.
Product Overview
This grapple rake is perfect for moving rocks, preparing soil for planting, and sifting debris from dirt or sand. Powered by dual 3,000 PSI hydraulic cylinders, it effortlessly lifts and moves almost anything in its path. It also includes cylinder covers for added protection. The rugged skeleton frame is reinforced with serrated cutting edges and features an open design with a deep-well rock dam. Tines spaced 3" apart hold rocks securely while dirt falls through. The front cutting edge is equipped with bolt-on bucket teeth, making it ideal for digging through tough dirt, gravel, or sand.
With a hook and pin connection, this fine-grade model handles jobs up to 3,500 LB with ease. It’s the perfect tool for sifting through soil, sand, and other materials while keeping larger rocks and debris in check.
NOTE: When you order this Skeleton Grapple Rake you will need to provide your phone number so the trucking and shipping company can schedule delivery.
Specifications
Specifications
Max Opening Height
35.5-in.Overall Height
30-in.Overall Width
74-in.Overall Depth
48-in.Inside Height
14-in.Inside Width
72-in.Inside Depth
44.25-in.Spacing Between Tines
3-in.Tine Thickness
0.5-in.Cutting Edge
0.75-in.Material
Finish
Powder-Coated GreenSpecificationsaMaterial
Material
50 Grade SteelWeight
Min Loader Rated Operating Capacity
2,250 lb.Max Loader Rated Operating Capacity
3,500 lb.Product Weight
1,125 lb.Details

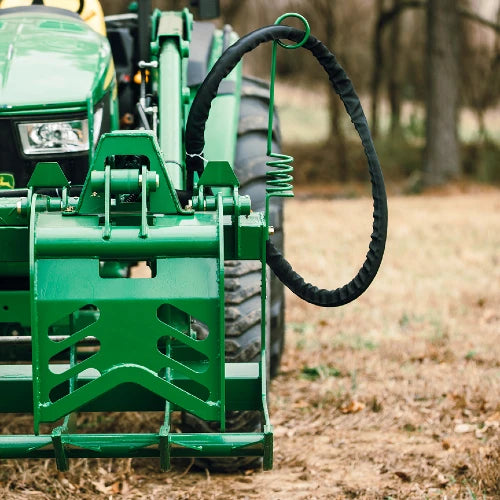

- Compatible with John Deere Hook and Pin
- Rock dam and notch holds the rocks securely
- Fine grade open-tined bottom spaced 3" apart
- Reinforced side cutters and cutting edge
- Frame is built with 4" x 4" steel tubing
- Twin 2.5" bore x 8" stroke hydraulic cylinders
- Replaceable teeth
- Hoses and pioneer couplers included
REPLACEMENT PARTS:
