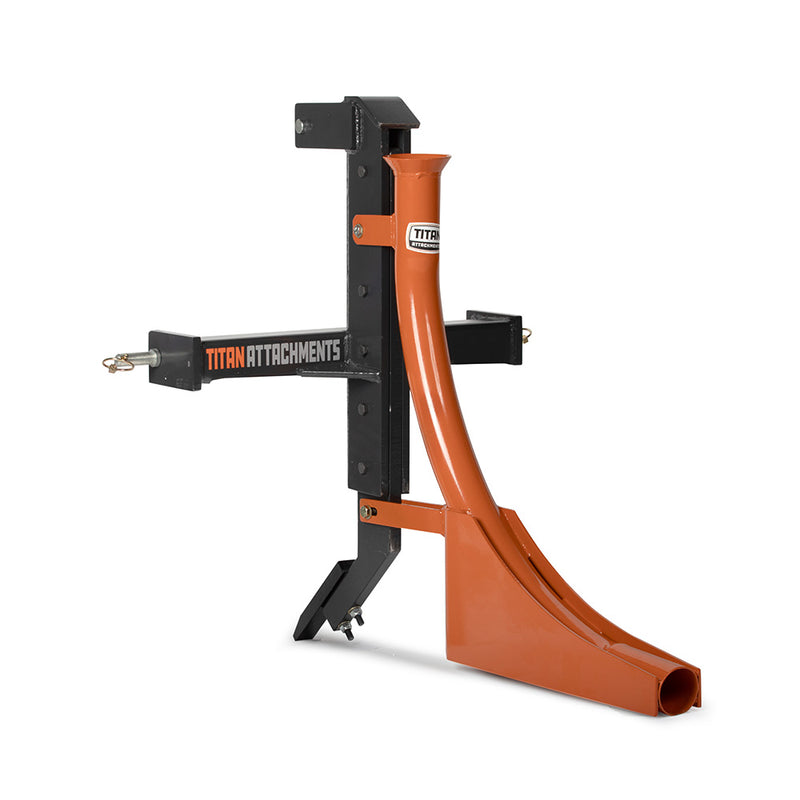

Single Tine Subsoiler with Optional Pipelayer Attachment

$519.99

$0.00 $519.99 Liquid error (snippets/price line 279): divided by 0% off (Save $-519.99)

Single Tine Subsoiler | Subsoiler with Pipe Layer

Single Tine Ripper Subsoiler with Pipe Layer

$519.99

$0.00 $519.99 Liquid error (snippets/price line 279): divided by 0% off (Save $-519.99)

Promo codes are not eligible on this item

This subsoiler breaks up compacted soil to improve drainage and deeper root growth, with optional pipe layer for installing underground utilities.

Choose Optional Pipelayer Attachment: Subsoiler with Pipe Layer

Subsoiler Subsoiler with Pipe Layer

Product variants

SKU: SKU: 191390

Availability:

Backorder Estimated to ship by 2026-08-25. Date is subject to change due to transit delays.

Fast & Free Shipping on Every Order

Handling fee applies to oversize items

1-Year warranty included

Extended coverage available with Mulberry

Buy Now, Pay Later

Flexible payment options available with Bread Pay™

View full details

Single Tine Subsoiler with Optional Pipelayer Attachment

Overview Specs Details Reviews

$519.99

$0.00 $519.99

Liquid error (snippets/price line 185): divided by 0% off (Save $-519.99)

$519.99

$0.00 $519.99

Liquid error (snippets/price line 185): divided by 0% off (Save $-519.99)

The Single Tine Subsoiler rips through hard, compacted ground to prevent root rot caused by waterlogged soil, while promoting deeper root growth and better access to nutrients for stronger, healthier plants. Combined with the optional pipe layer attachment, it makes quick work of installing underground wire, waterlines, and pipes 12" below the surface in a single pass—a gamechanger for anyone who has been manually digging trenches.

Built for Category 1, 3 Point hitch tractors, this rugged attachment has a thick, reinforced steel frame and tine with multiple depth settings. The tine has locking holes for added support and reaches up to 33" deep, while the heat-treated, reversible scarifier tooth plows through tough soil. Lower lift pins and top link pin included.

The inside diameter of the pipe layer is 70mm (2.75") and accepts polyethylene pipes up to 50mm (2") while the tubing features a 2.5" opening to feed piping and wires with ease.

NOTE: True subsoiling depth varies depending on how low your 3 Point hitch is to the ground. Check your tractor specifications before purchasing to ensure you can reach the desired depth.

Specifications

Overall Pipe Layer Height

32-in.

Overall Pipe Layer Width

4.5-in.

Overall Pipe Layer Depth

32.75-in.

Pipe Tube Diameter

2.75-in.

Overall Tine Ripper Height

41-in.

Overall Tine Ripper Width

32.5-in.

Overall Tine Ripper Depth

10-in.

Tine Ripper Shank Length

8.5-in.

Tine Ripper Shank Width

1.5-in

Tine Ripper Shank Thickness

1-in.

Tine Ripper Shank Position

Fixed

Digging Depth Ranges

21-in. to 33-in.

Max Horsepower

35 HP

Material

Tine Ripper Finish

Powder-Coated Charcoal

Pipe Layer Finish

Powder-Coated Orange

Material

Steel

Weight

Product Weight

150 lb.

Details

Compatible with Category 1, 3 Point Hitches
Titan quick hitch compatible
Includes Category 1 Hitch pins
Four adjustable settings in 4" increments from 21" to 33"
Adjustable and reversible forged and heat-treated scarifier tooth
Strong steel tine designed to break hard ground
Improve drainage and allow roots to grow deeper without saturation
Accepts 50mm (2") poly pipe
Installation hardware included

View Product Manual

Additional Info
