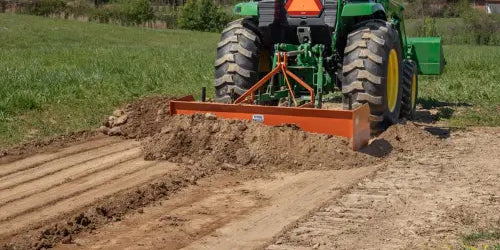

Got uneven terrain on your property? A box blade can make quick work of land leveling, whether you’re prepping a site for a shed, cleaning up after excavation, or just smoothing out a bumpy yard. If you’ve never leveled land with a box blade before, don’t worry. With the right approach, it’s easier than you think.
In this guide, we’ll walk through how to use a box blade to level ground yourself—cutting down high spots, filling low ones, and getting a smoother finish across the area.
First of all, what is a box blade used for (And what is it not used for?) A box blade is a great option for tough, heavy-duty land leveling tasks, with a strong rear blade, front blade, and scarifiers (the teeth sticking out up front). All of this is mounted in a steel box frame that drags behind your tractor.
Here’s where box blades really shine:
Cutting down high spots in compacted or uneven ground
Spreading and dragging materials like dirt, gravel, or sand
Rough grading—where you need to move earth but don’t need it laser-level
Creating or reshaping slopes for driveways, ditches, or pads
While a box blade can make leveling ground significantly easier, it’s not the best choice for detailed or delicate land grading work. But even if your job will eventually require more nuanced grading, a box blade is a great tool to speed up the first stages of your land grading jobs when your main focus will be moving large loads of material fast and achieving the general shape of how you want your land.
Scarifiers: What They Do and When to Use Them
Scarifiers are your box blade’s secret weapon. These adjustable steel teeth dig into compacted soil to loosen it before the blades do the shaping. If you’re working on ground that hasn’t been touched in years, or you're hitting clay, start with the scarifiers down. You’ll save wear on your blades and make your grading passes much more effective.
Hiring out land grading can get expensive—especially for smaller jobs where you’re really just trying to correct a slope or prep a shed pad. Doing it yourself has a few big advantages:
Saves money on labor and equipment rental
Allows you to work at your own pace without relying on someone else’s schedule
Lets you customize the result—you can tweak as you go and make it exactly how you want
Is an opportunity to gain confidence and skills with your tractor and attachments
Once you’ve done it once, you’ll be surprised how many other projects start to feel doable. It’s a great skill to have in your back pocket.
Tools & Equipment You’ll Need
Here’s what you’ll want to have on hand before you get started:
Tractor with a 3-point hitch
Box blade (sized appropriately for your tractor's horsepower and width)
Optional but helpful tools:
Laser level or string line and stakes (to check grade and slope)
Measuring tape or measuring wheel (for large areas)
Landscape marking paint (to outline your area)
If your project involves drainage—say, creating a gentle slope away from a building—these extra tools help you measure your grade as you work and avoid surprises later.

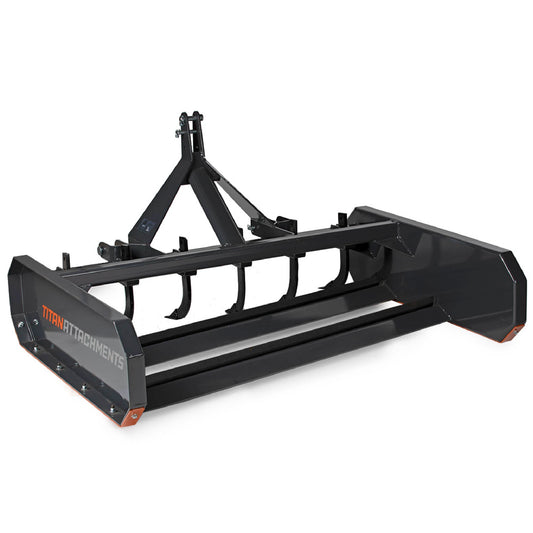

3 Point Box Blade Scraper
$1,324.97 - $1,999.99
Up to
26% off
The 4 FT Box Blade Attachment is an essential lawn tractor implement intended for various jobs, including light-duty ripping, finish grading, and backfilling.
Grading with a box blade isn’t hard, but it does take a bit of finesse. Here’s how to go about it:
1. Mark Your Area Use stakes or marking paint to outline where you're grading and indicate which direction you want the water to flow (if drainage is part of the plan).
2. Drop the Scarifiers (if needed) On compacted ground, start with the scarifiers down. They’ll break up the surface so your blade can move material more easily.
3. Make Your First Pass Lower your box blade so it just scrapes the surface. Start at the high end of your area and drive slowly forward, letting the blade cut and collect material.
4. Adjust as You Go You’ll likely need to adjust your top link and side link to get the blade angle just right. If the blade is digging too aggressively or not enough, adjust your tilt.
5. Fill Low Spots Use the material you’ve gathered to fill in lower areas. You may need to back-drag or make several criss-cross passes to even things out.
6. Repeat and Refine It’s rare to get it perfect on one pass. Keep working the area from different angles and monitor your progress with a level or string line.
Tips for Smoother Results
Work when the soil is dry but not rock-hard. Too dry and it won’t shape well; too wet and you’ll make a mess.
Use a crosshatch pattern. Pass over the area from multiple directions to even things out.
Make shallow passes. Trying to move too much at once can cause dips and gouges. Gradual cuts are cleaner.
Go slow. Let the blade do the work—rushing can lead to uneven results.
Check your slope often. Especially if you’re managing drainage, stop and check grade every few passes.
Common Mistakes to Avoid
Skipping scarifiers on hard ground. You’ll just end up bouncing across the surface without moving much earth.
Trying to do it all in one go. Multiple lighter passes give you more control and a smoother finish.
Ignoring drainage. Flat isn’t always best—make sure water has a path to drain if needed.
Working in sloppy conditions. Wet soil sticks, clumps, and can leave ruts that are hard to fix later.
Not checking your work. Step back, walk your area, and eyeball it from different angles as you go.
Final Thoughts
Leveling your land with a box blade isn’t just a solid weekend project—it’s a skill that can save you serious money and open the door to all kinds of future improvements. Take it slow, check your slope often, and don’t be afraid to make a few extra passes.
It might feel like a learning curve at first, but once you get a feel for it, grading with a box blade will become second nature. And there’s nothing quite like standing back after a day of work and seeing a perfectly level, clean-cut piece of land—and knowing you did it yourself.
FAQs
1. What are scarifiers on a box blade? Scarifiers are adjustable steel teeth mounted on a box blade. They dig into compacted soil to loosen it before the blades grade and level the surface.
2. How many passes does it take to level soil?
It depends on the site, but most require multiple passes for better results. It’s better to work slowly in smaller passes and adjust as you go.
3. How do I know when the land is level? You always want to visually check as you go, but using a long level, laser level, or simply watching how material flows under the blade can help fine-tune your surface.
