Standard Series Global Euro Pallet Fork Frame, Fits John Deere Tractors

$839.96

$1,199.99 $839.96 30% off (Save $360.03)

Standard Series Global Euro Pallet Fork Frame, Fits John Deere Tractors | Frame + 48" Blades

Standard Series Global Euro Pallet Fork Frame, Fits John Deere Tractors | Frame + 36" Blades

Standard Series Global Euro Pallet Fork Frame, Fits John Deere Tractors | Frame + 42" Blades

Standard Series Global Euro Pallet Fork Frame, Fits John Deere Tractors | Frame + 60" Blades

Standard Series Global Euro Pallet Fork Frame, Fits John Deere Tractors | Frame Only

Standard Series Global Euro Pallet Fork Frame, Fits John Deere Tractors

Standard Series Global Euro Pallet Fork Frame, 48" Fork Blades

$839.96

$1,199.99 $839.96 30% off (Save $360.03)

Promo codes are not eligible on this item

This Standard Series Global Euro Hay Frame comes equipped with a pair of 48" Class 2 pallet fork blades.

Connection Type : Global Euro

Choose Optional Pallet Fork Blades. Forks and Frames May Ship Separately. : Frame + 48" Blades

Frame Only Frame + 36" Blades Frame + 42" Blades Frame + 48" Blades Frame + 60" Blades

Product variants

SKU: SKU: 132396

Availability:

In Stock

Fast & Free Shipping on Every Order

Handling fee applies to oversize items

1-Year warranty included

Extended coverage available with Mulberry

Buy Now, Pay Later

Flexible payment options available with Bread Pay™

View full details

Standard Series Global Euro Pallet Fork Frame, Fits John Deere Tractors

Overview Specs Details Reviews

$839.96

$1,199.99 $839.96

30% off (Save $360.03)

$839.96

$1,199.99 $839.96

30% off (Save $360.03)

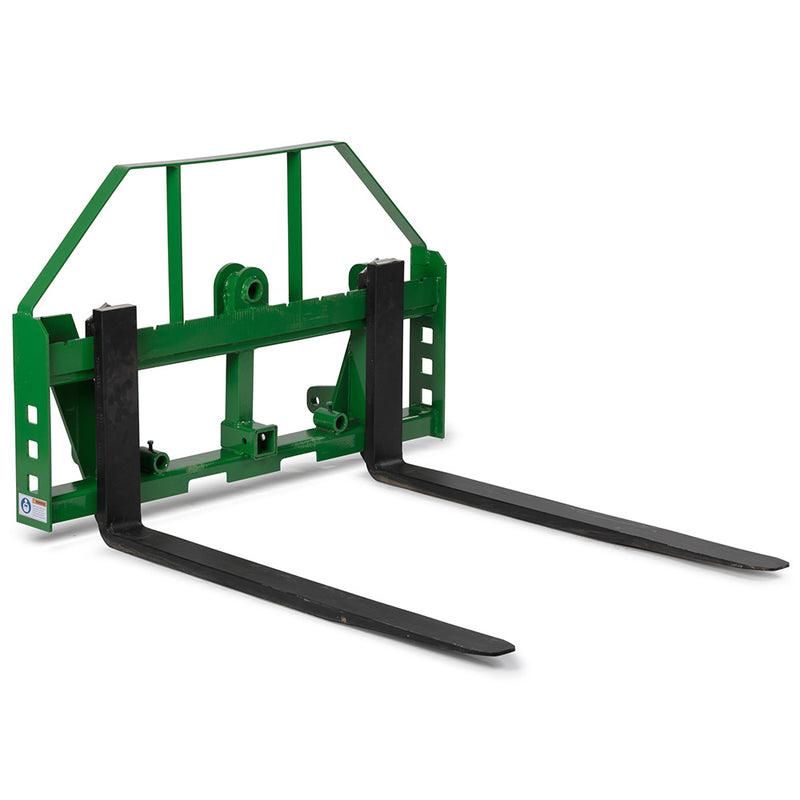

Rated at 4,000 LB, the all-in-one Standard Series Global Euro Pallet Fork Frame boasts a higher weight capacity than the Economy Series frame and includes a see-through headache rack for added durability and safety. This frame features a slotted carriage bar and is available with or without Class II pallet fork blades, making it ideal for moving pallets, logs, and other debris. Additionally, it has a 2" receiver hitch to transform your tractor into a towing machine.

For moving large hay bales quickly, the frame includes one main Conus 2 hay spear sleeve and a pair of stabilizer spear sleeves welded to the frame (spears sold separately). This attachment has a Global Euro style mounting system and fits any Global style tractor. It will not fit a hook and pin tractors or SSQA.

NOTE: We will need your phone number to schedule delivery to avoid delays.

Specifications

Frame Height

32-in.

Frame Length

51-in.

Frame Depth

9-in.

Fork Length

48-in.

Fork Width

4-in.

Fork Thickness

1.25-in.

Pallet Fork Blades

Class 2

Upper to Lower Rail

16-in.

Main Spear Sleeve

Conus 2

Receiver Hitch Dimensions

2-in. x 2-in.

Material

Finish

Powder-Coated Green

Material

Steel

Weight

Frame Weight Capacity

4,000 lb.

Fork Weight Capacity

4,000 lb.

Fork Pair Weight

196 lb.

Frame Weight

144 lb.

Details

‍Fits John Deere Global Euro style mounting
‍All-in-one frame design for moving pallets, large round hay bales, and trailers
‍Features a headache rack
‍Features carriage bars
‍Features hay spear sleeves
‍Features a 2" receiver hitch
‍Includes Class 2 pallet fork blades
‍Accepts one Conus 2 hay bale spear (sold separate)
‍Accepts a pair of stabilizer spears (sold separate)
